8-3-5-4 Removal Procedure (cont’d)
2.) Unscrew four screws (3-6) on the right side and (7-10) on the left to remove the speakers. Refer to
Figure 8-14.
3.) Unscrew four screws (7-10) to remove the speaker on the right.
4.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-3-5-5 Mounting procedure
Install the new parts in the reverse order of removal.

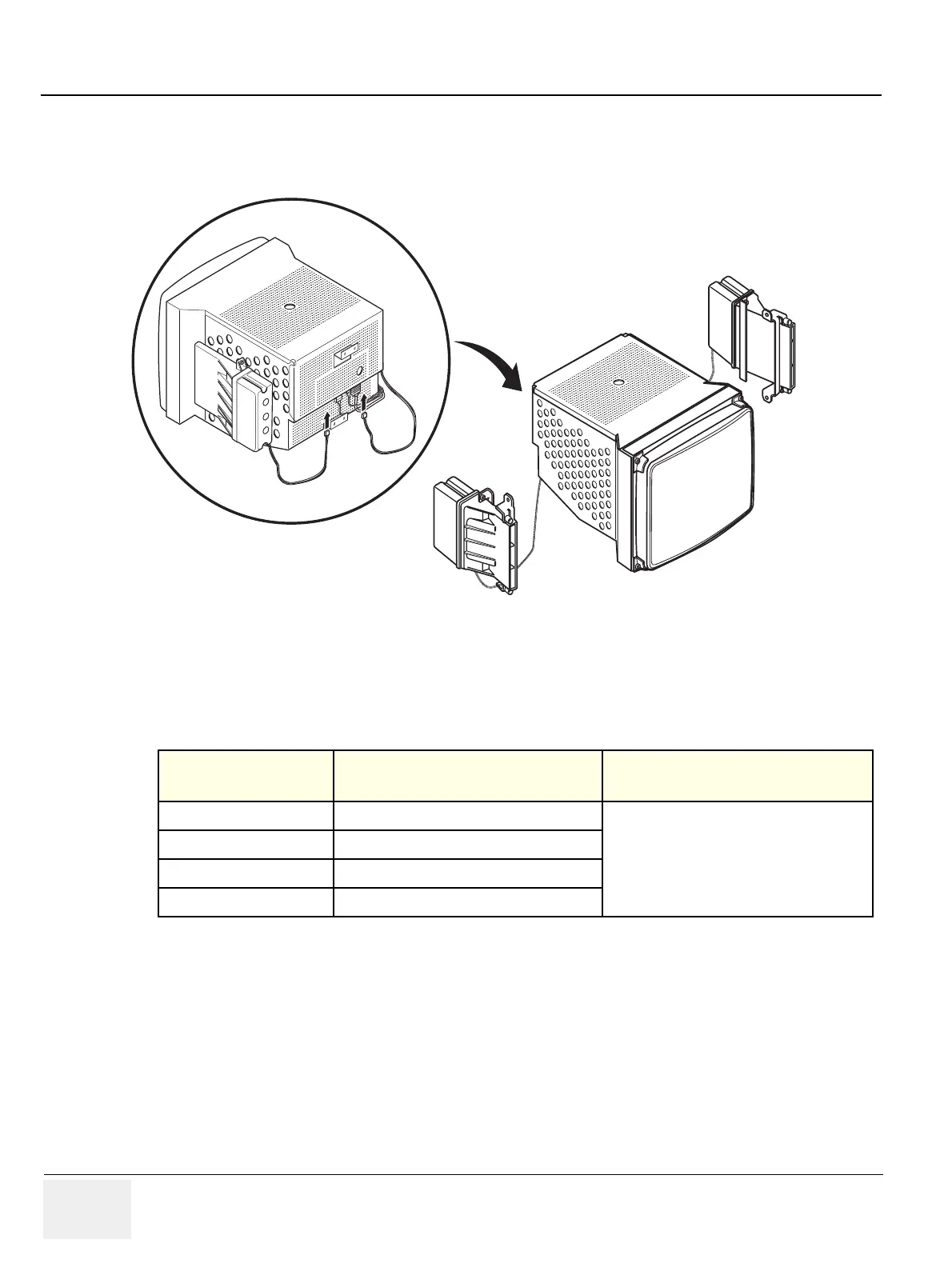

Figure 8-14 Speaker Assy Disassembly
Table 8-6 Functional Tests
Service Manual
Section Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-3-5. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-7-10
Speaker Assy Validation
Section 10-5-5
Physical Inspection
1
2
3
4
5
6
7
8
9
10
