GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-45
8-5-4 Rear Door Cover
Purpose: This is a description on how to remove and replace the Rear Door Cover.
8-5-4-1 Tools
• Common pillips screwdrivers
8-5-4-2 Needed Manpower
• 1person, 20 minutes + travel
8-5-4-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-4-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
3.) Remove the Rear Cover. Refer to section 8-5-3 on page 43.
4.) Unscrew four screws (1-4). Refer to Figure 8-51.
5.) Remove hinges from the Rear Door Cover.
6.) Remove the Rear Door Cover.

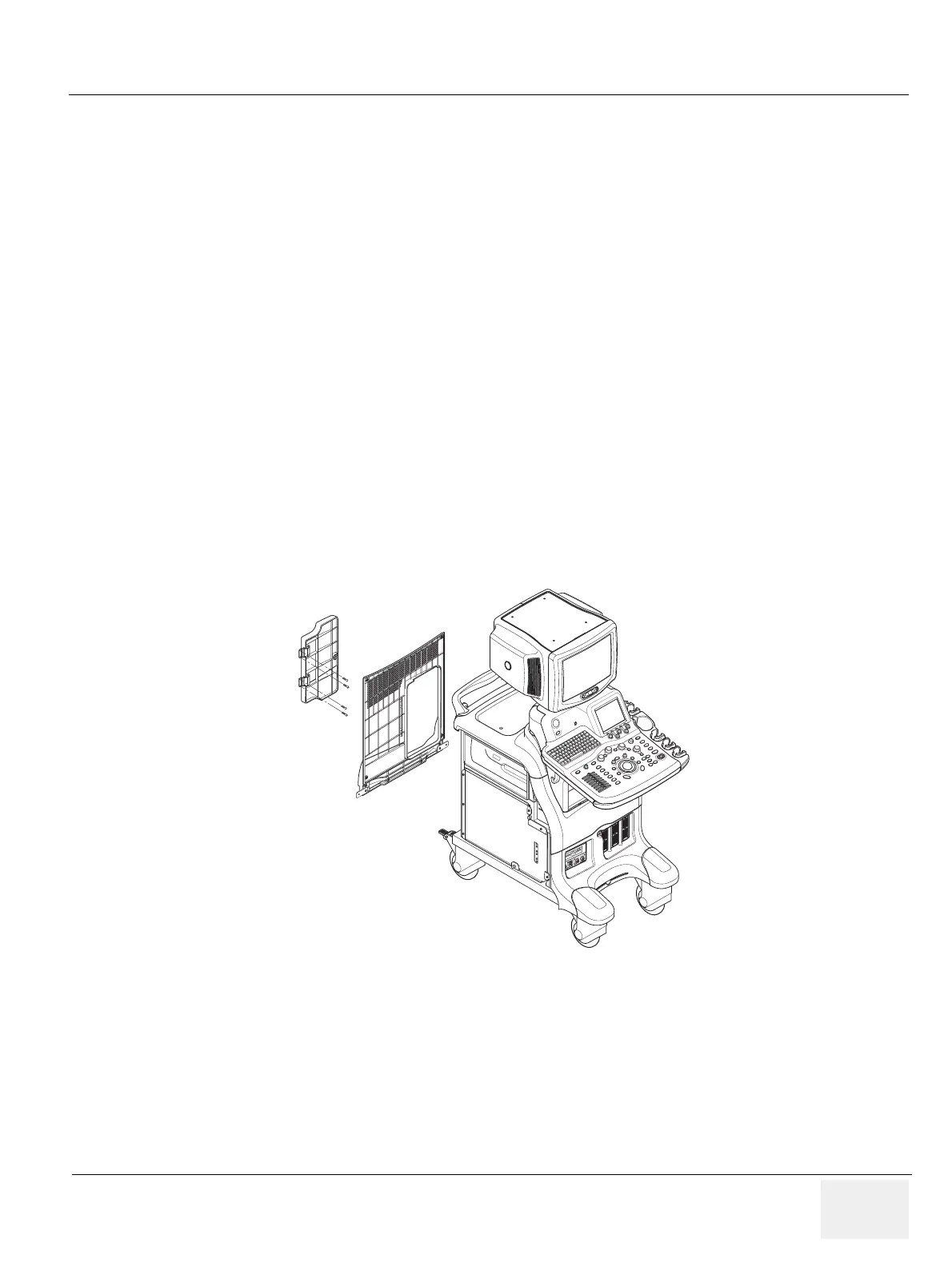

Figure 8-51 Removing the Rear Door Cover
1
2
3
4
