GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-23
8-4-5 OP Panel Encoder Assy
Purpose: This is a description on how to remove and replace OP Panel Encoder Assy.
8-4-5-1 Tools
• Common pillips screwdrivers.
• Longnose.
8-4-5-2 Needed Manpower
• 1persons, 5 minutes + travel
8-4-5-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
• Keyboard Assy should be removed before proceed. For more information, refer to KeyBoard Assy
on section 8-4-1 on page 15.
8-4-5-4 Removal Procedure
1.) Remove the eight(8) encoder knobs (1-8) from the front side of the Keyboard. Refer to Figure 8-27.

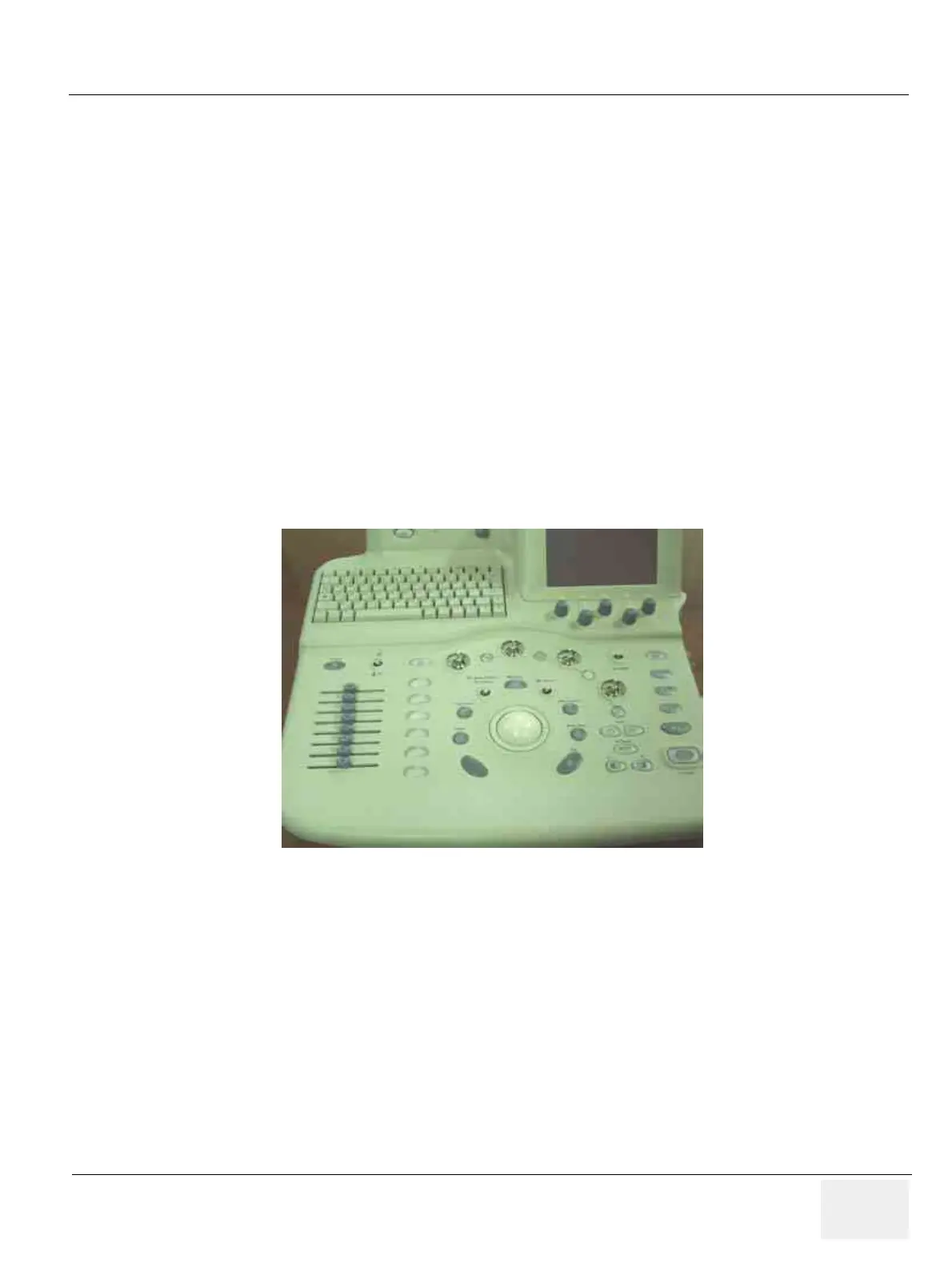

Figure 8-27 Removing 8 encoder knobs
(1)
(2)
(3)
(4)
(5)
(6)(7)
(8)
