GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-52 Section 8-5 - Covers
8-5-8 OP Side L Cover
Purpose: This is a description on how to remove and replace the OP Side L Cover.
8-5-8-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-5-8-2 Needed Manpower
• 1person, 25 minutes + travel
8-5-8-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-8-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
3.) Remove the Front Base Cover. Refer to section 8-5-7 on page 51.
4.) Remove the Front Cover. Refer to section 8-5-7 on page 51.
5.) Remove the Keyboard. Refer to section 8-4-1 on page 15.
6.) Unscrew two (2) screws (1-2) and remove OP Curtain L Bracket. Refer to Figure 8-57.

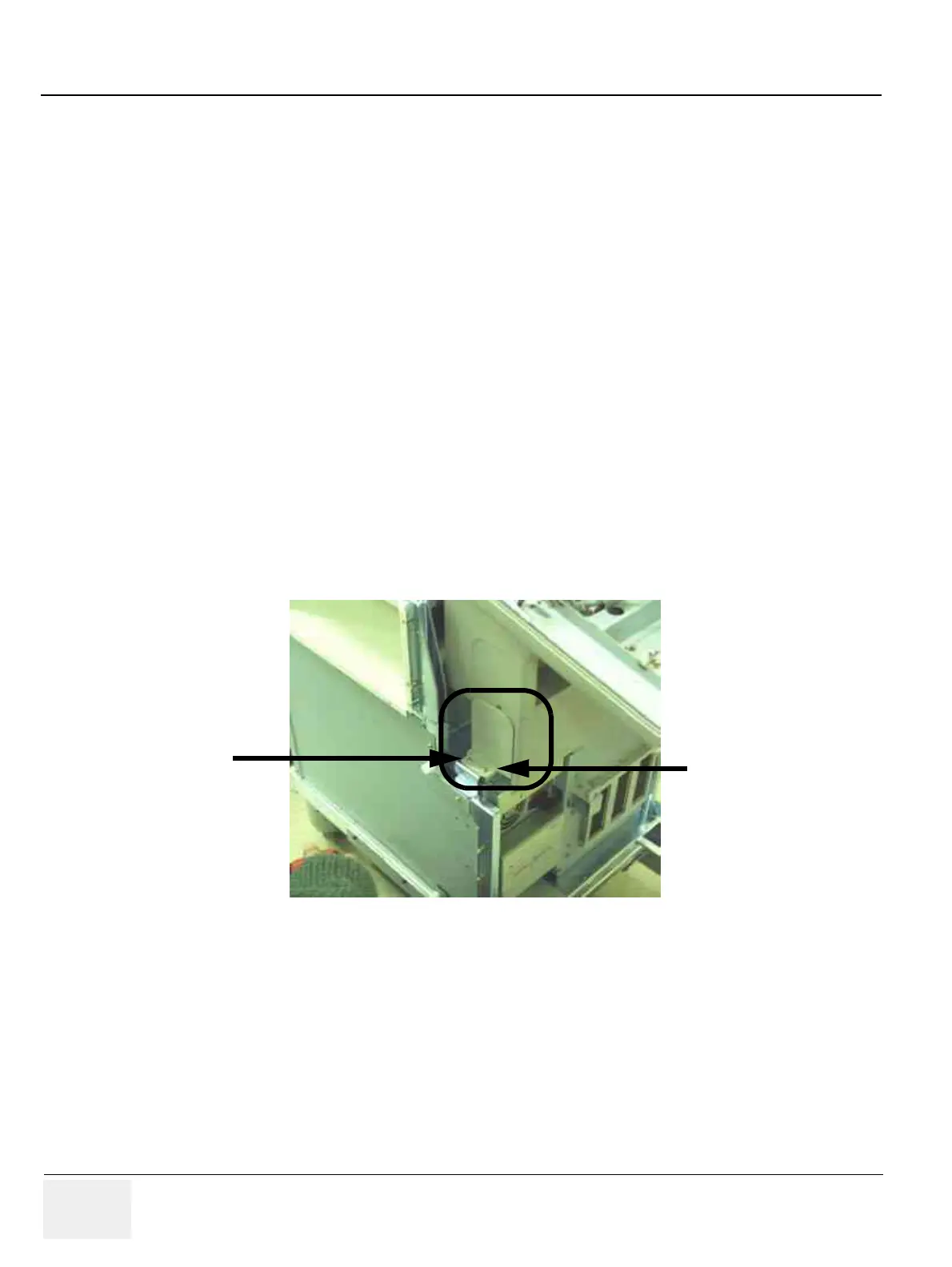

Figure 8-57 Removing OP Curtain L BRKT
OP curtain L BRKT
(2)
(1)
To Next Page
