GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 1 LOGIQ™ 5 SERVICE MANUAL
Chapter 3 Installation 3 - 9
3-3-1 Moving into Position
In general, a single adult can move the LOGIQ™ 5 along an even surface with no steep grades. At least
two people should move the machine when large humps, grooves, or grades will be encountered. (It is
better to pull from the rear rather than push from the front of the unit). Before moving, store all loose
parts in the unit. Wrap transducers in soft cloth or foam to prevent damage.
Although LOGIQ™ 5 is a compact and mobile machine, two people should move it over rough surfaces
or up and down grades.
3-3-2 Adjusting System Clock
Set the system clock for the LOGIQ™ 5 to the local time. For procedure of adjusting the system clock,
refer to section 3-6-1-1 on page 15.
Fill out proper customer Information the Product Locator Installation Card. Mail this Installation Card
“Product Locator” to the address corresponding to your pole.
3-3-3 Product Locator Installation Card
NOTE: The Product Locator Installation Card shown may not be same as the provided Product Locator
card.
CAUTION
Do not lift the unit by the Keyboard.
Do not tilt the unit more than 5 degrees to avoid tipping it over.
To avoid injury by tipping over. Set the monitor to the lowest position before moving.
CAUTION
Equipment Damage Possibility. Lifting the console by holding covers may damage the covers.
Do not lift the console by holding any covers.

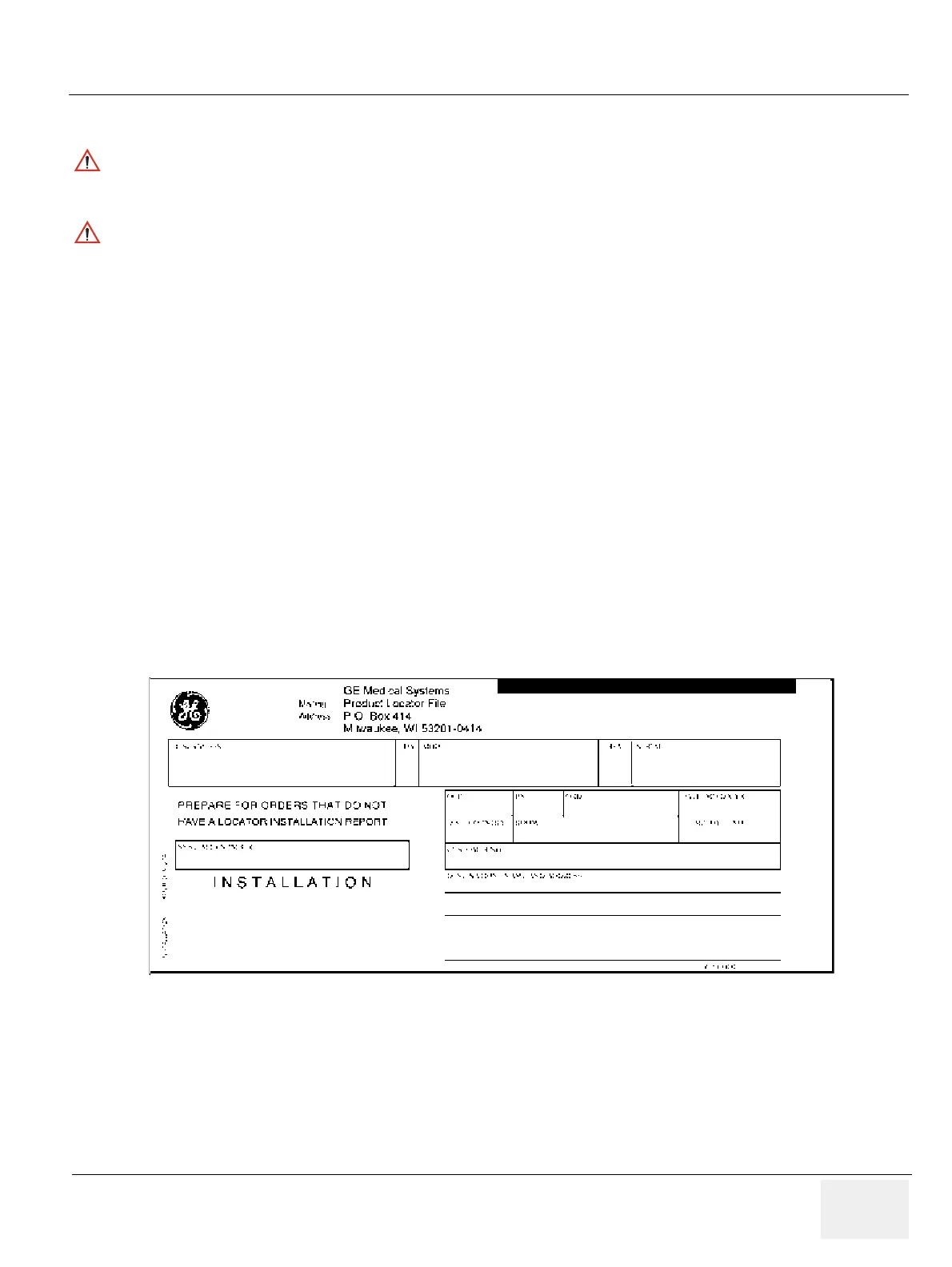

Figure 3-12 Product Locator Installation Card
