GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-7
8-3-3 Monitor Cover Set
Purpose: This is a description on how to remove the Monitor Cover Set.
8-3-3-1 Tools
• Common pillips screwdrivers
8-3-3-2 Needed Manpower
• 1person, 10 minutes + travel
8-3-3-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-3-3-4 Removal Procedure
1.) Remove the Tasklamp Assy, For more information, refer to section 8-3-6 on page 13.
2.) Unscrew three screws (1-2,6) to remove the Monitor Cover left.
3.) Unscrew three screws (3-5) to remove the Monitor Cover right.
4.) Unscrew four screws (7-10) to remove the Monitor Cover front.
5.) Monitor Cover Top can be removed without unscrewing.

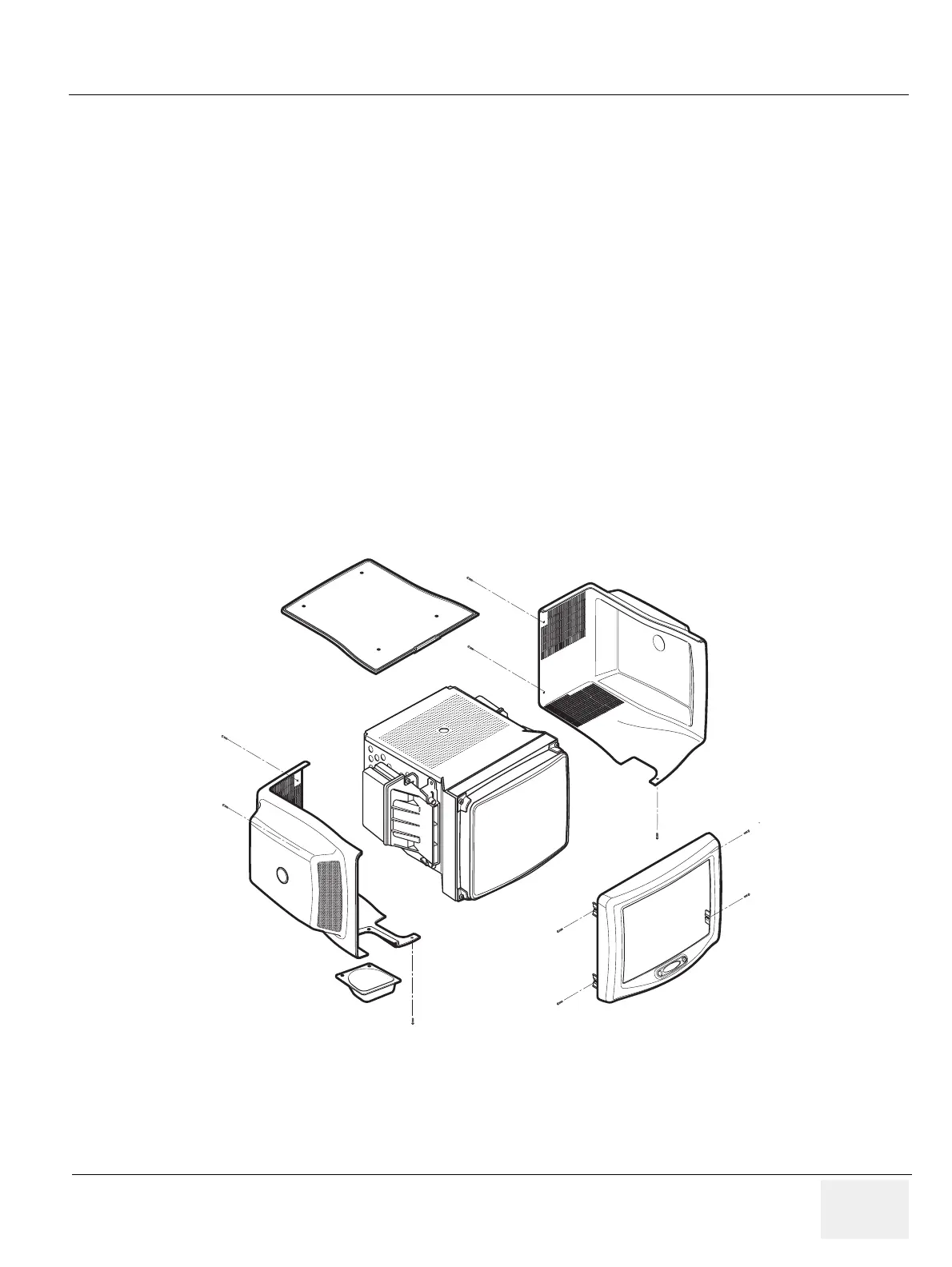

Figure 8-9 MONITOR COVER SET DISASSEMBLY
7
8
9
10
1
2
3
4
6
5
