GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 1 LOGIQ™ 5 SERVICE MANUAL
5 - 2 Section 5-1 - Overview
Section 5-2
General Information
LOGIQ™ 5 is a phased and linear array ultrasound imaging scanner. It has provisions for analog input
sources like ECG and Phono. A Doppler probe may also be connected and used.
The system can be used for:
- 2D Gray Scale and 2D Color Flow Imaging
- M-Mode Gray Scale Imaging
- Color M-Mode
- Doppler
- Different combinations of the above modes
LOGIQ™ 5 is a digital beamforming system.
Signal flow travels from the Probe Connector Panel to the Front End Electronics, to the Back-End
Processor, and finally displayed on the monitor and peripherals.
System configuration is stored on the hard drive and all necessary software is loaded from the hard drive
on power up.

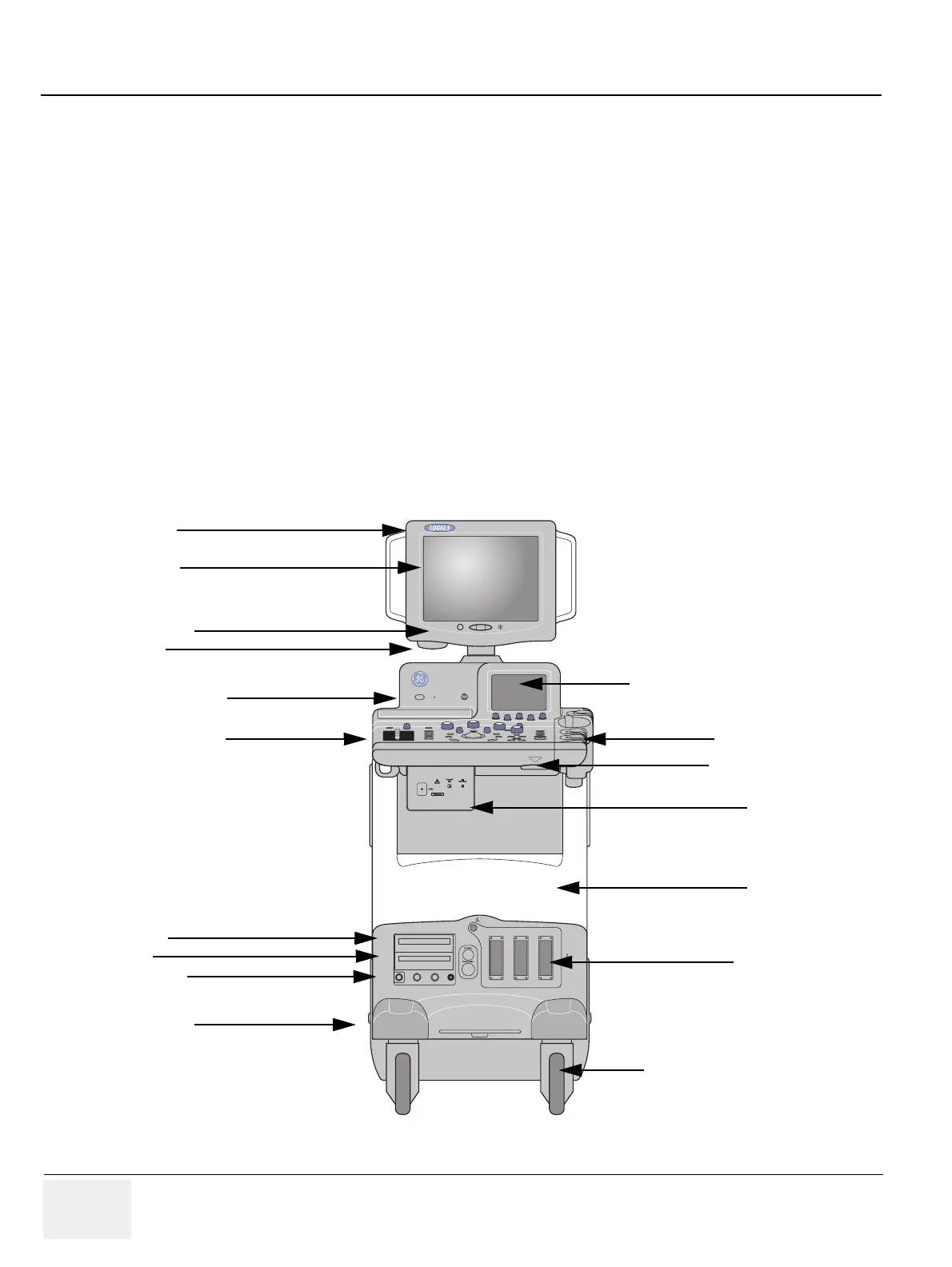

Figure 5-1 LOGIQ™ 5 Major Components
Name Plate
Monitor
Monitor Controls
Touch Panel Screen/Display
TGC Slidepot Knobs
Front Cover
Probe Connector
Swivel Lock & Brake Release
Front Bumper
CD-ROM
MOD
ECG Module
Operator Console
B/W Printer
Power On/Off Switch
Keyboard Lever
Task Lamp
