GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 1 LOGIQ™ 5 SERVICE MANUAL
7 - 8 Section 7-5 - Diagnostics
Section 7-5
Diagnostics
As described in - Components and Fuctions (Theory), the service platform uses a web-based user
interface (UI) to provide access to common service components.
The Diagnostic home page displays a listing of test categories consisting of Common Diagnostics, and
LOGIQ5 Diagnostics. Expand the desired main category to select groups or individual tests.

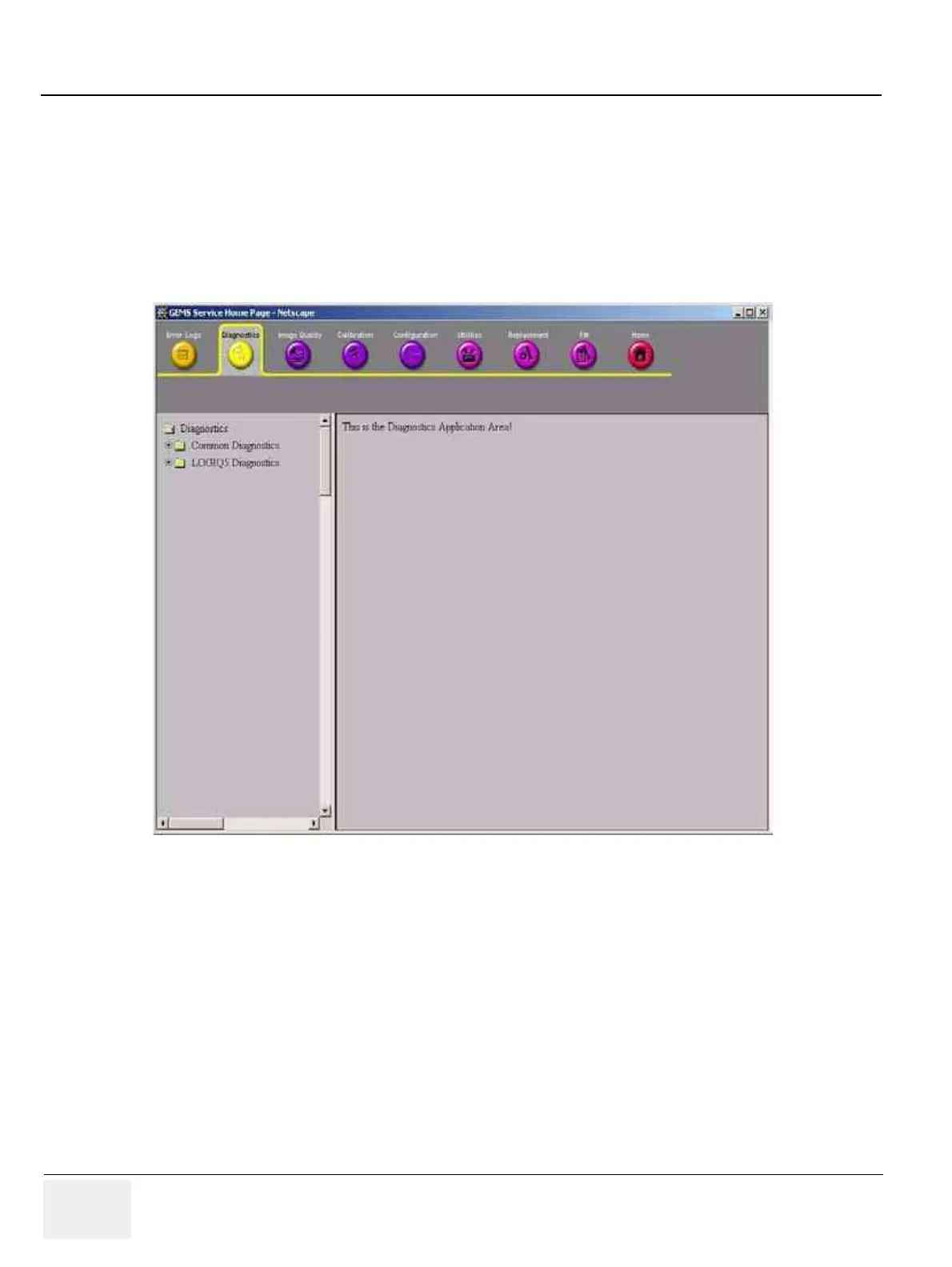

Figure 7-6 Diagnostics
