GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-10 Section 8-3 - Monitor
8-3-4-4 Removal Procedure (cont’d)
4.) Remove the Monitor S/W Assy.Refer to Figure 8-12.
5.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-3-4-5 Mounting procedure
Install the new parts in the reverse order of removal.

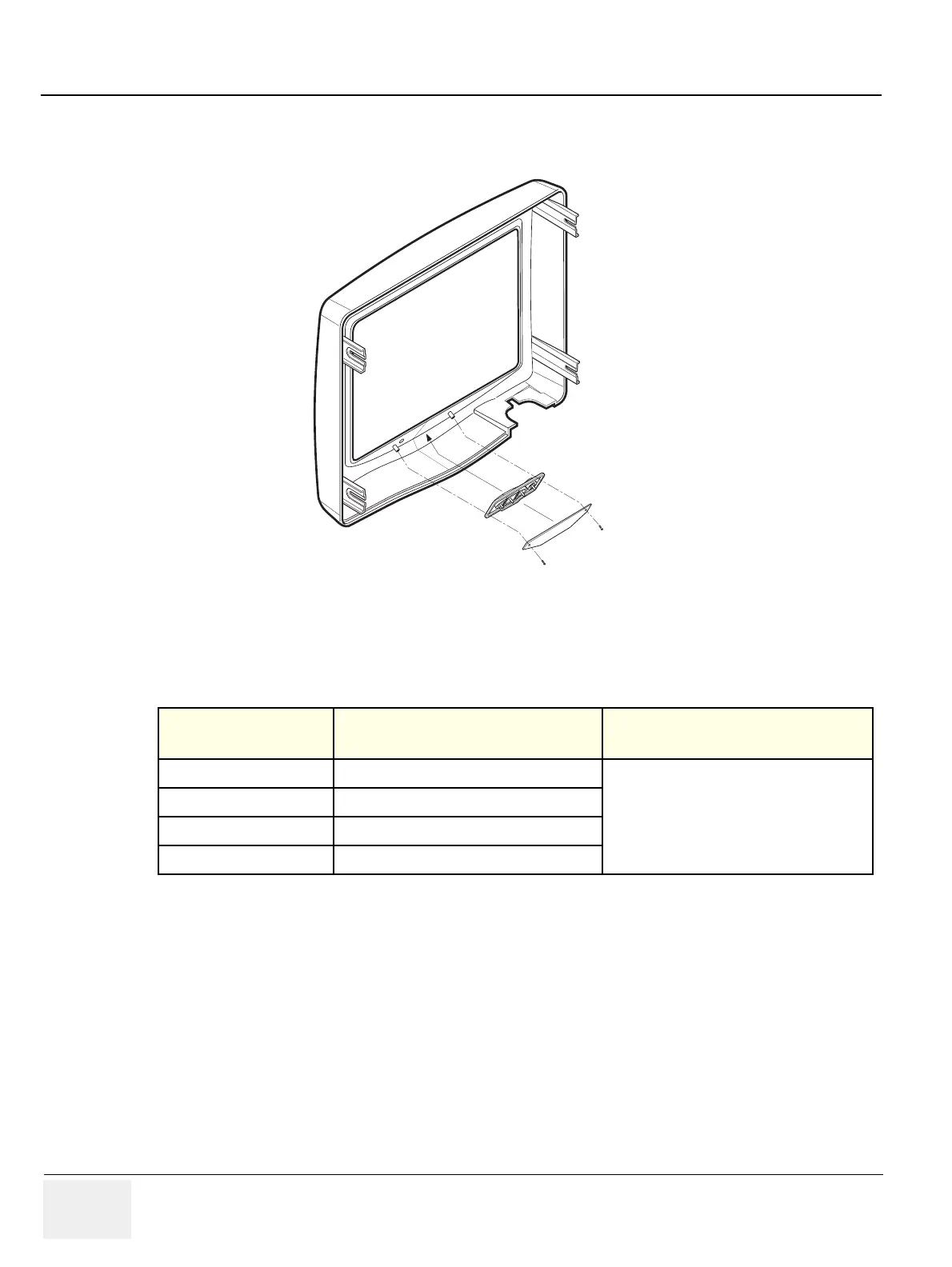

Figure 8-12 Removing Monitor S/W Assy
Table 8-5 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-3-4. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-6-1
CRT Assy function check procedure
Section 10-5-5
Physical Inspection
3
4
