GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-34 Section 8-4 - Keyboard Block
8-4-10-4 Removal Procedure (cont’d)
3.) Unscrew six (6) screws (7-12) to remove HUB Board Assy. Refer to Figure 8-41.
4.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-4-10-5 Mounting Procedure
Install the new parts in the reverse order of removal.

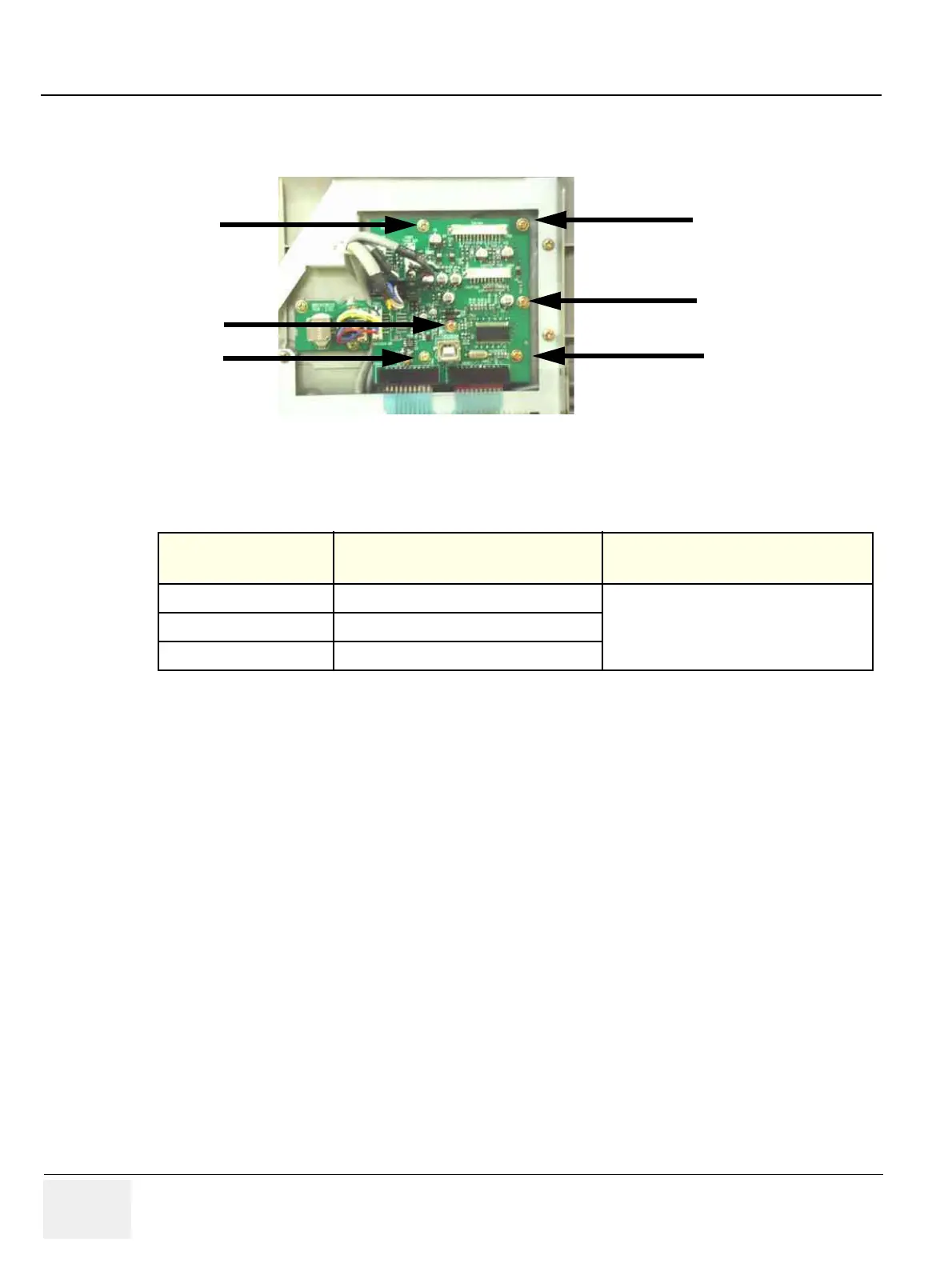

Figure 8-41 Unscrew 6 screws
Table 8-17 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-4-10. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-7-7
OP Panel HUB Board Assy Validation
7
8
9
10
11
12
To Next Page
