IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-61
8-5-12-4 Removal Procedure (cont’d)
9.) Remove the OP Curtain Cover. Refer to Figure 8-65.
10.)Perform the following functional tests. If all are successful, include the debrief script provided below.
8-5-12-5 Mounting procedure
Install the new parts in the reverse order of removal.

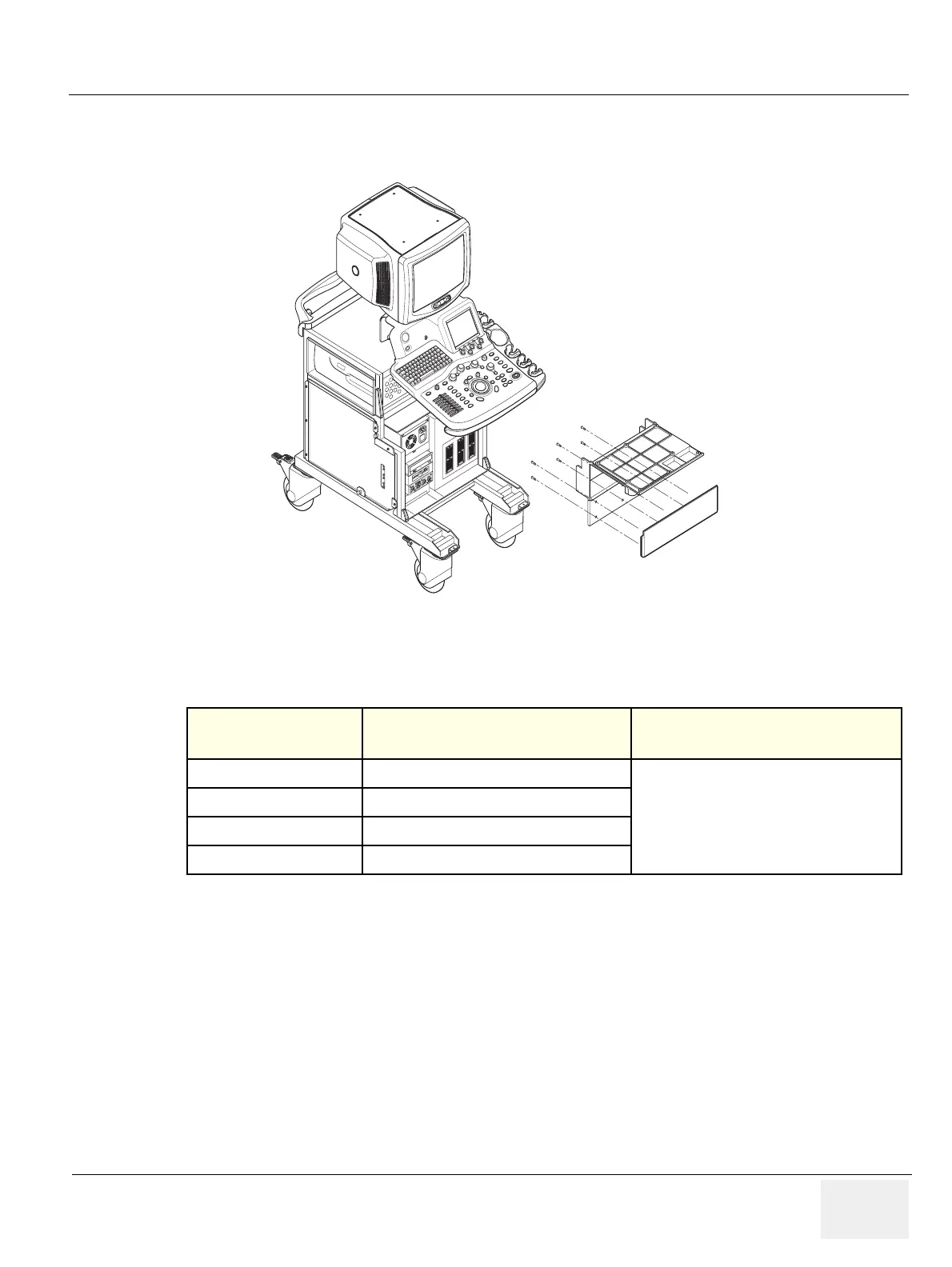

Figure 8-65 Remove the OP Curtain Cover
Table 8-31 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-5-12. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-2
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
