1-10 Section 1-3 - Safety Considerations
1-3-5Label Locations (cont’d).
1.) Possible Shock Hazard
2.) Label -”Do not use the following devices near this equipment.”
3.) Label - “The equipment weighs approximately 180kg.
4.) Prescription Devices
5.) CE Mark Label
6.) CISPR Label
7.) Voltage Range Indication Label
8.) Power Indication Label
9.) Grounding reliability Label.

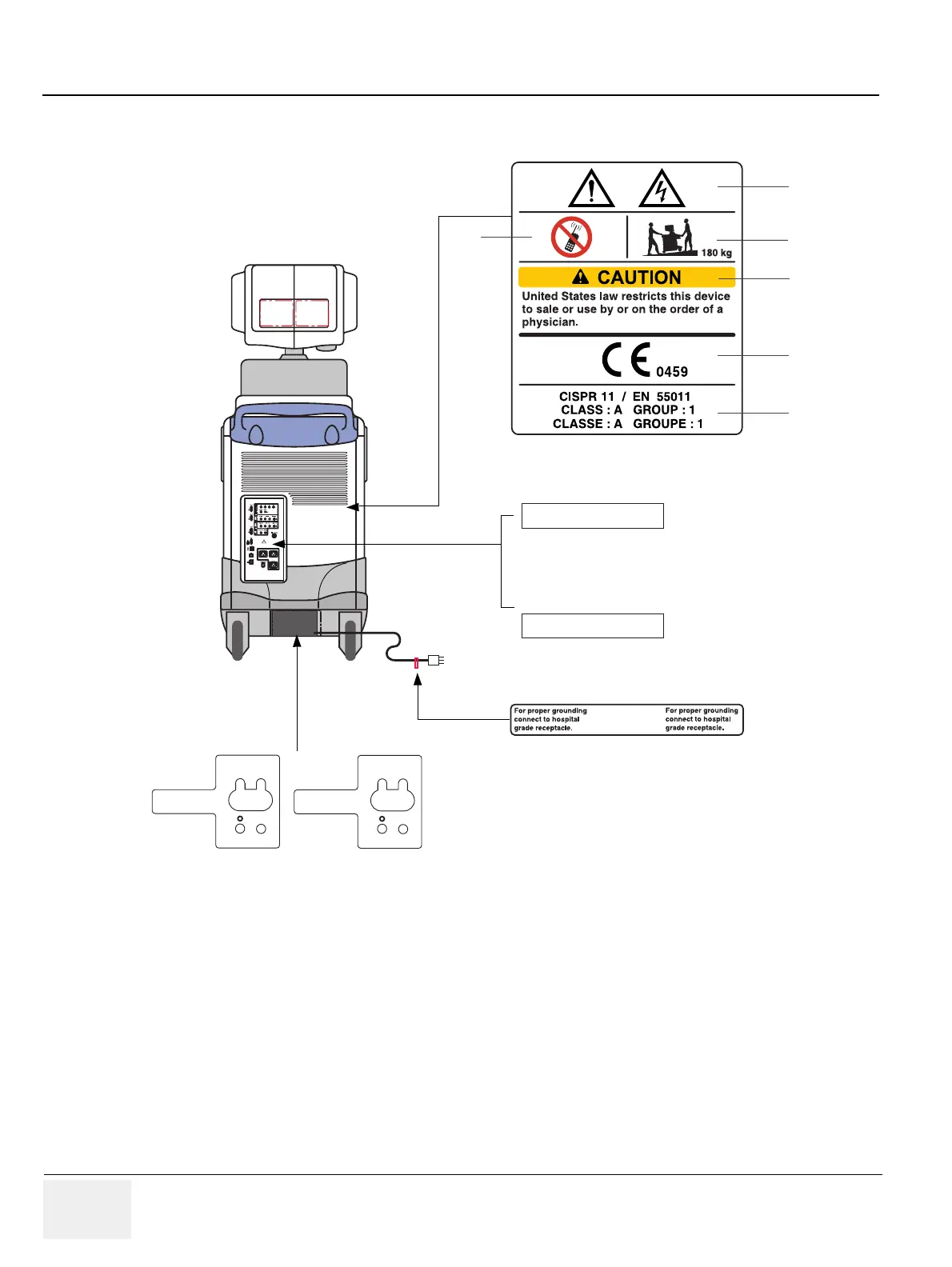

Figure 1-2 OUTSIDE MARKINGS OF LOGIQ™ 5 (Rear)
220-240V 500VA Max
Including front printer panel
100~120V 500VA Max
Including front printer panel
Japan/USA/Asia Console (100~120V)
Europe/USA Console (220V)
(1)
(3)
(4)
(5)
(6)
(2)
(7)
AC Line Input
Circuit Breaker
100-120V~ 50/60Hz
On
Off
1250VA Max
I
AC Line Input
Circuit Breaker
220-240V~ 50/60Hz
On
Off
1250VA Max
I
or
(8)
(9)
