Chapter 8 Replacement Procedures 8-93
8-7-2-4 Removal Procedure (cont’d)
3.) Pull the LMT Board out. Refer to Figure 8-92.
4.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-7-2-5 Mounting Procedure
Install the new parts in the reverse order of removal.

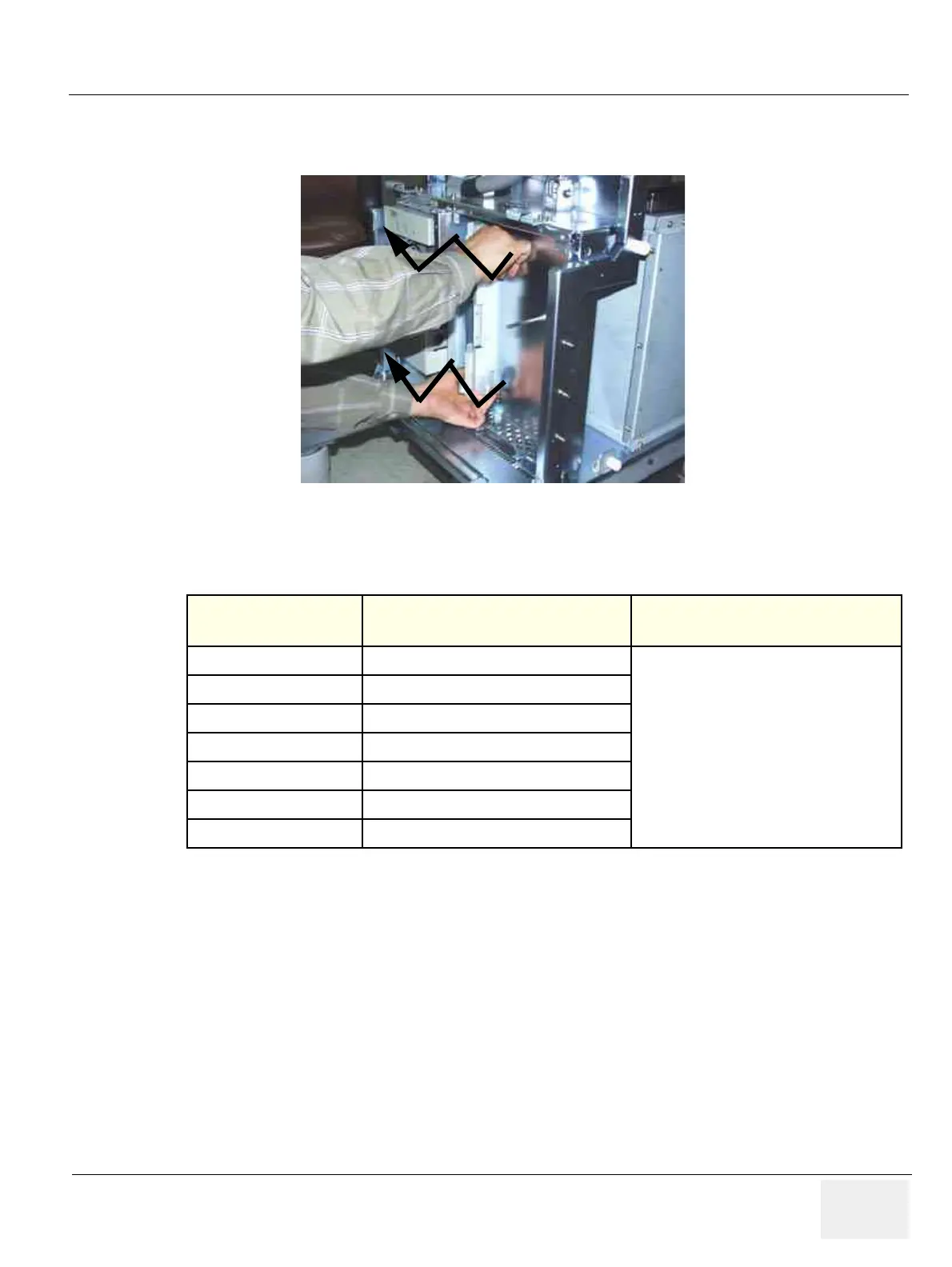

Figure 8-92 Pulling Out LMT Board
Table 8-44 Functional Tests
Service Manual
Section Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-7-2. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-9-2
LMT Assy function check procedure
Section 4-3-4
System B/M-Mode Checks
Section 4-3-5
System CFM and PWD Checks
Section 10-5-2
Functional Checks (See Also Chapter 4)
Section 10-6
Using a Phantom
