8-128
Section 8-8 - PC Block
8-8-1-9 Check the Device Driver Configuration.(BEP3)
(cont’d)
6.)

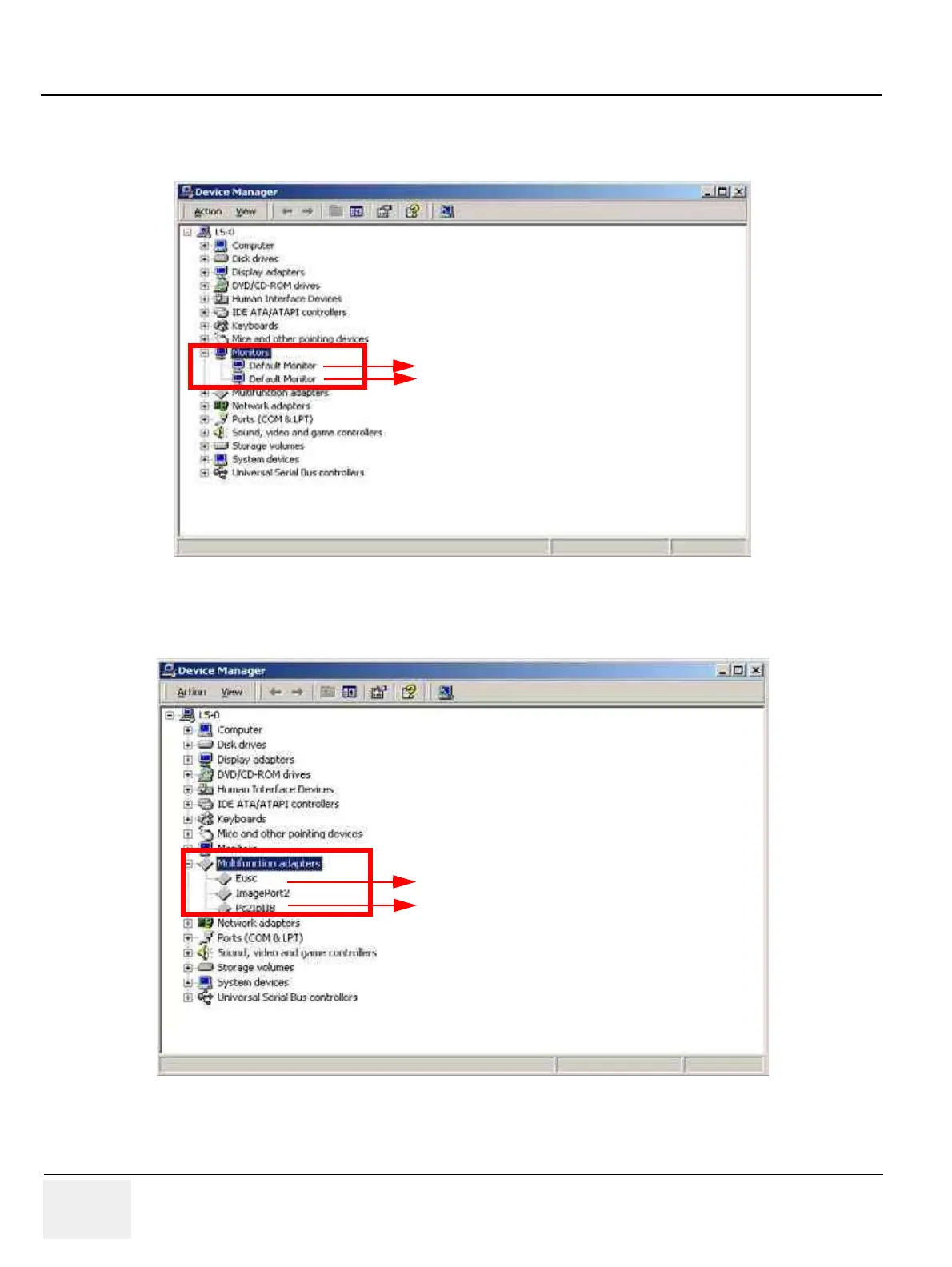

Monitor check
7.)
Multifunction adapters check
Figure 8-
137 Mon
itor check
Figure 8-138
Multifunction adapters
check
System Console Monitor
Operation Panel LCD Panel monitor
PCI Bridge device driver
PC2IPII device driver
323
325
