GE M
EDICAL
S
YSTEMS
D
IRECTION
2300000, R
EVISION
2
LOGIQ™5 S
ERVICE
M
ANUAL
Chapter 8 Replace
ment Procedures
8-135
8-8-1-10 Check the Device Driver Configuration.(
BT05 BEP3)
(cont’d)
6.)

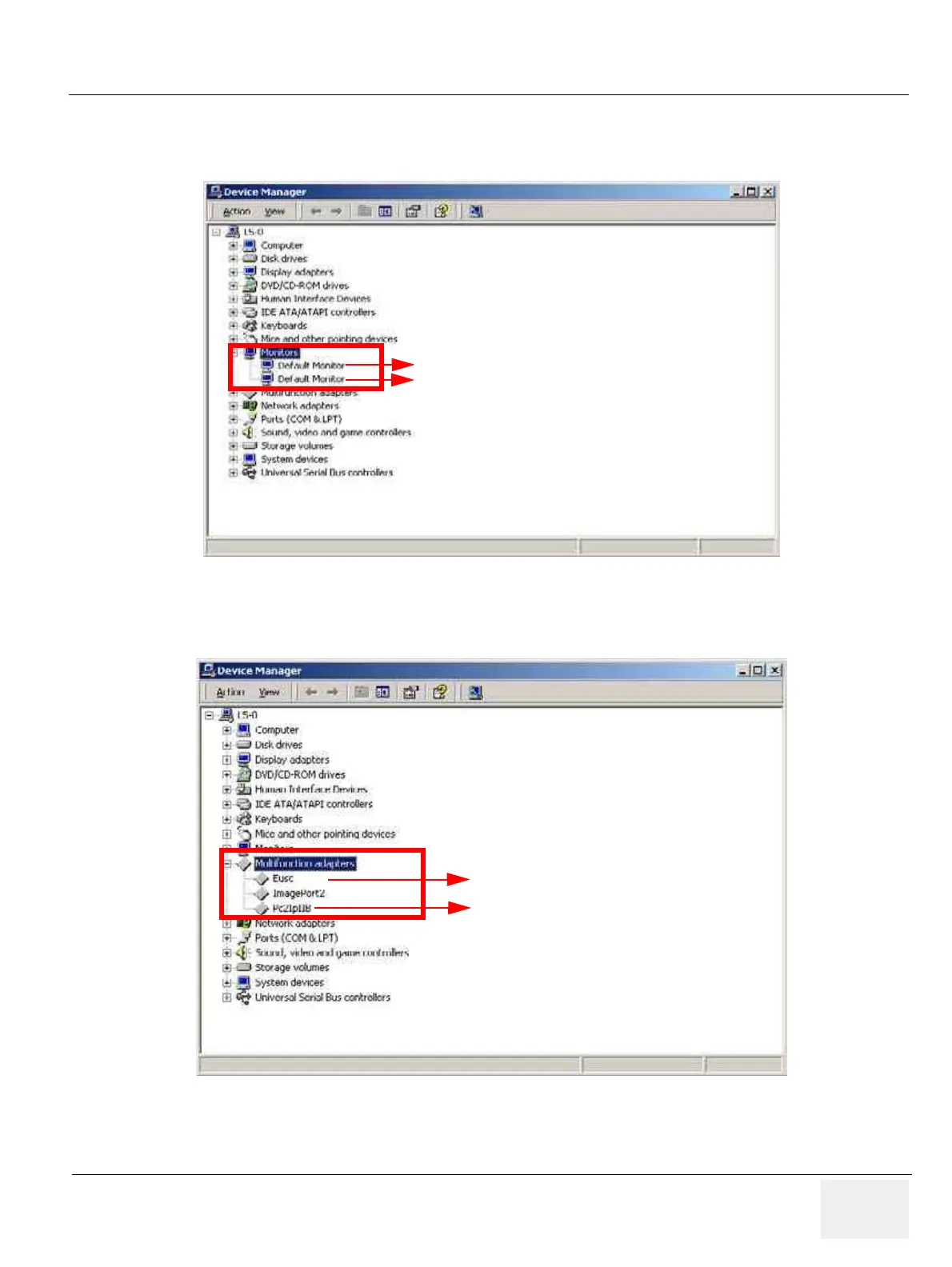

Monitor check
7.)
Multifunction adapters check
Figure 8-
150 Monit
or check
Figure 8-151
Multifunction adapters
check
System Console
Monitor
Operation Panel LCD Panel monitor
PCI Bridge device driver
PC2IPII device driver
330
332
