Chapter 8 Replacement Procedures 8-151
8-8-3-6-3 File Copy (cont’d)
9.) There should be 8 logical disk totally. Each HDD have 4 partitions, "SYSTEM", "USER",
"ARCHIVE", "SWAP". The used HDD which is set to slave is "H" to "K". And the new HDD in BEP
which is set to master is "C" to "F". (If the L5 system have MO drive, the slave drive number can be
"I" to "L")
10.)The patient data files are in the "Idunn" directory in the "ARCHIVE" disk.
11.)All of sub directory in the "Idunn" directory of slave HDD should be copy to "Idunn" directory of
master HDD. (In below example, the three sub directory "GEMS_DB", "GEMS_IMG",
"GEMS_REP" in the "Idunn" directory in "J" drive should be copy to "Idunn" drive in "E" drive.)
12.)If following warning message appear, click the button "Yes to All".
13.)If finish the file copy process, shutdown the system and unplug the service dongle.

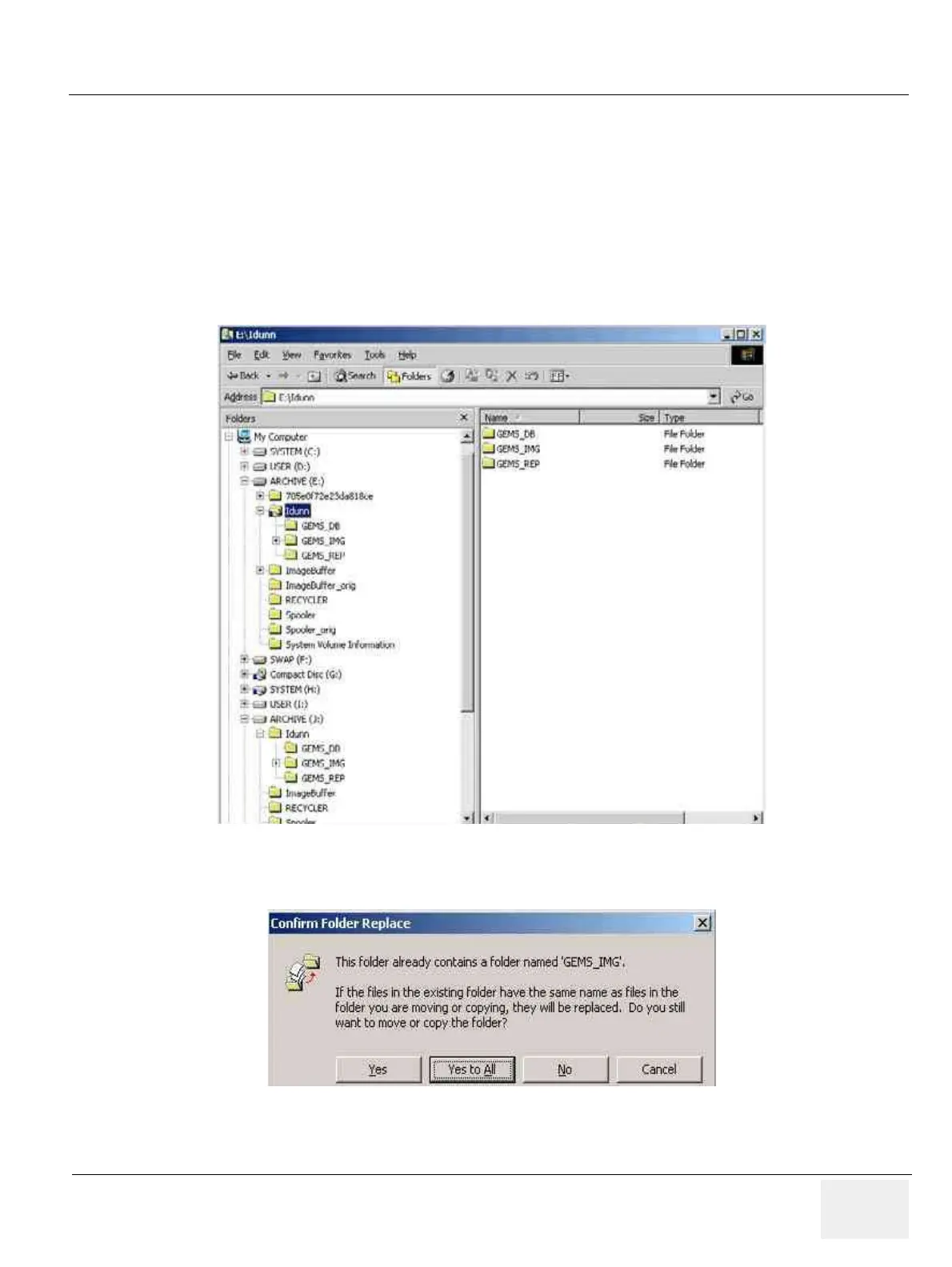

Figure 8-180 Directory Map in HDD
Figure 8-181 Copy confirmation message
