GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-154 Section 8-9 - Power Block
8-9-1-4 Removal Procedure (cont’d)
3.) Unscrew eight (8) screws (11-18) to remove AC Power assy. Refer to Figure 8-184.
4.) Remove the AC Power Assy.

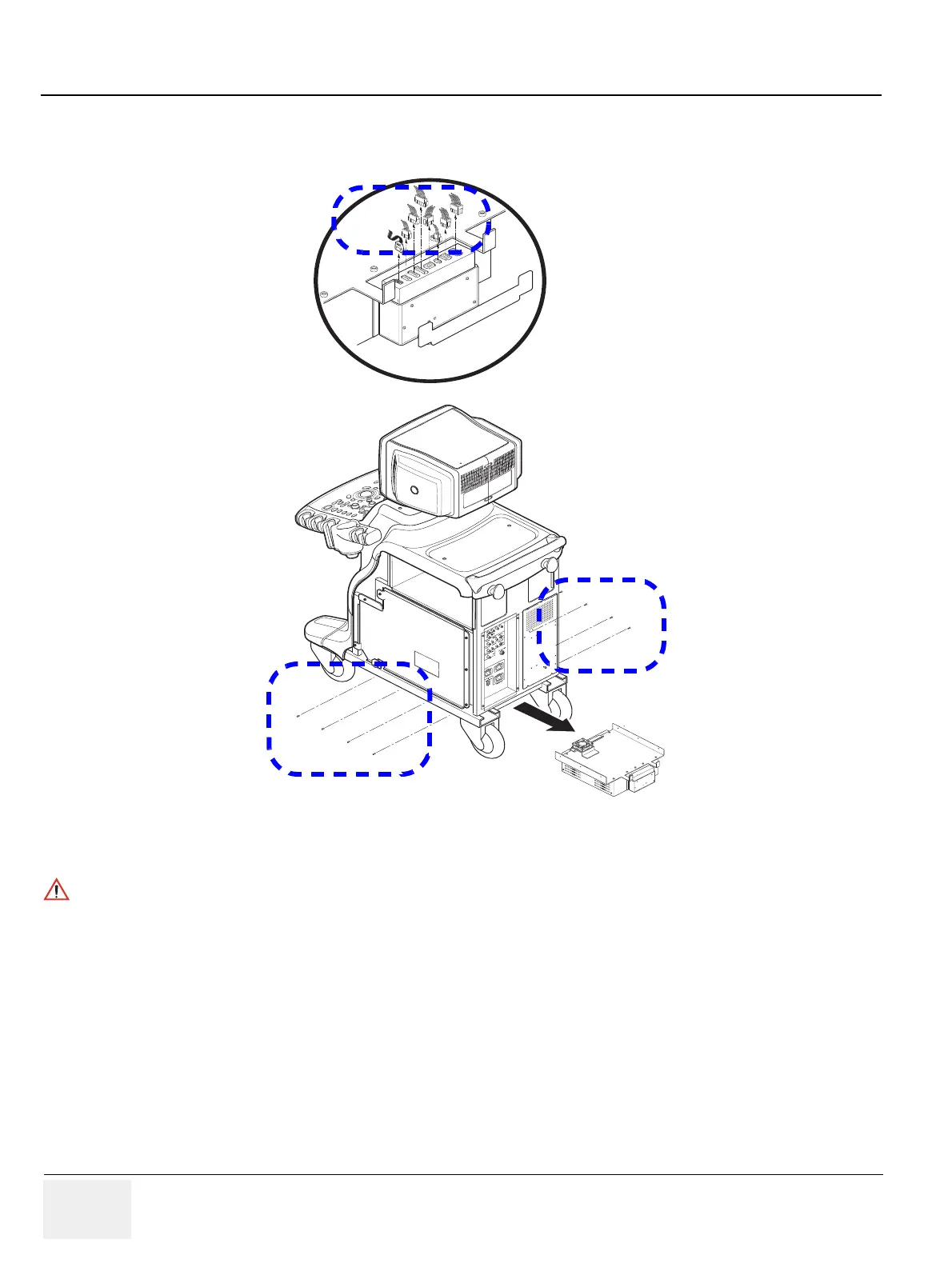

Figure 8-184 Removing the AC Power Assy
WARNINGWARNING
The weight of the AC Power Assy is approximately 20 kg. Two person is needed in the
next step.
11
12
13
15
16
17
14
18
