3 - 12 Section 3-2 - Installation Reminders
3-5-1-1 Scanner Power On (cont’d)
4.) Press the ON/OFF
key at the front of the System once.
3-5-1-2 Power Up Sequence
1.) The Start Up Screen will be shown on the Monitor display when the system is turned ON.
2.) After initialization is complete, all lighted buttons on the Control Panel light and the default B-Mode
screen or Patient screen (no probes are connected) is displayed on the monitor display.

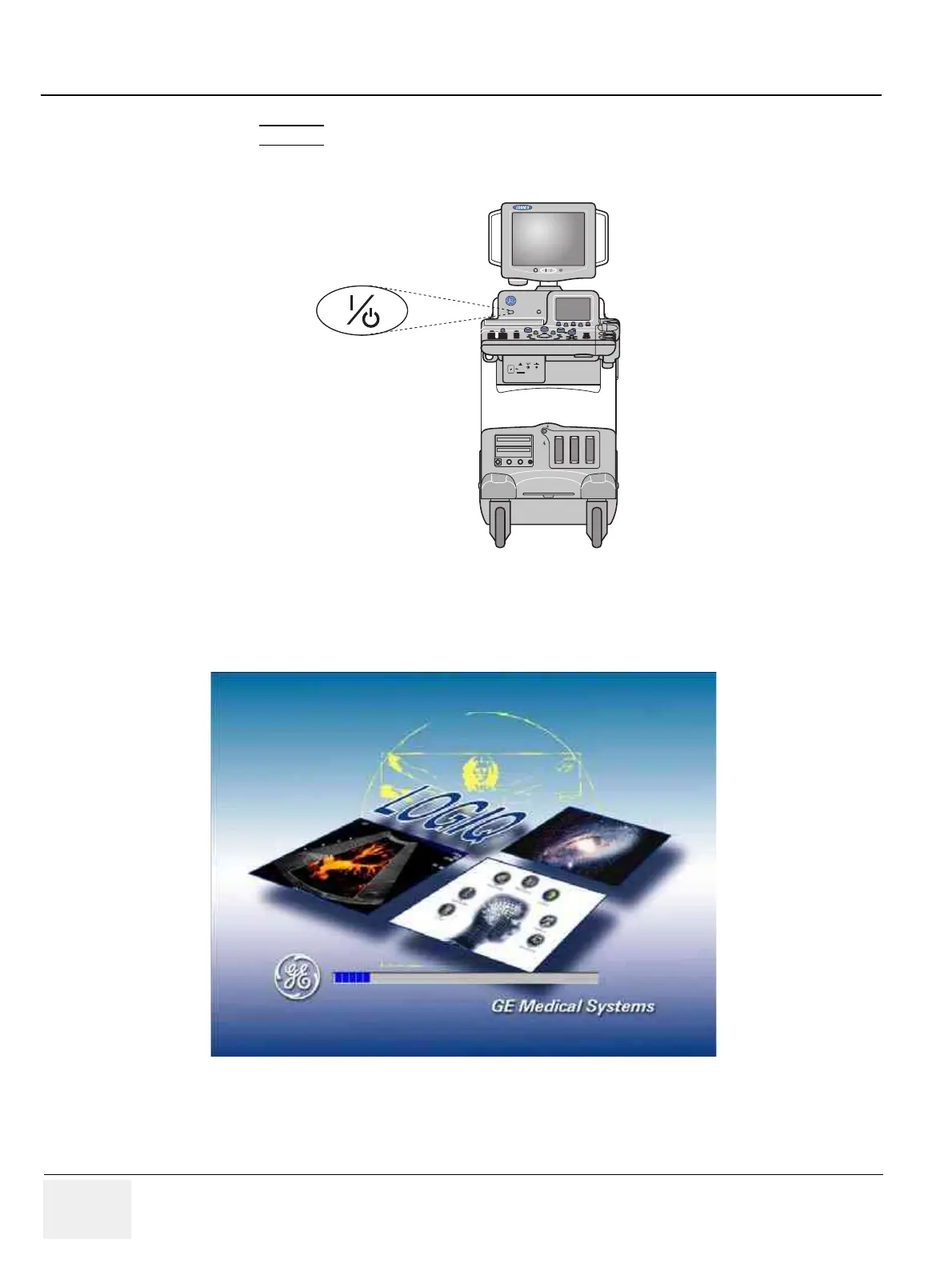

Figure 3-14 Power On/Off Standby Switch Location
Figure 3-15 Start Up Screen Display
