3-6-1-2 Physical Dimensions
The physical dimensions of the LOGIQ™ 5 unit are summarized in Table 3-2 on page 3-17 .
The Size of LOGIQ™ 5, with monitor and peripherals
3-6-1-3 Weight without Monitor and Peripherals
3-6-1-4 Acoustic Noise Output:
Less than 70dB (A) according to DIN 45635 - 19 - 01 - KL2.
Table 3-2 Physical Dimensions of LOGIQ™ 5
Height Width Depth Unit
135 - 145 52.0 99.0 cm
53.1 - 57.08 20.47 38.9 inches

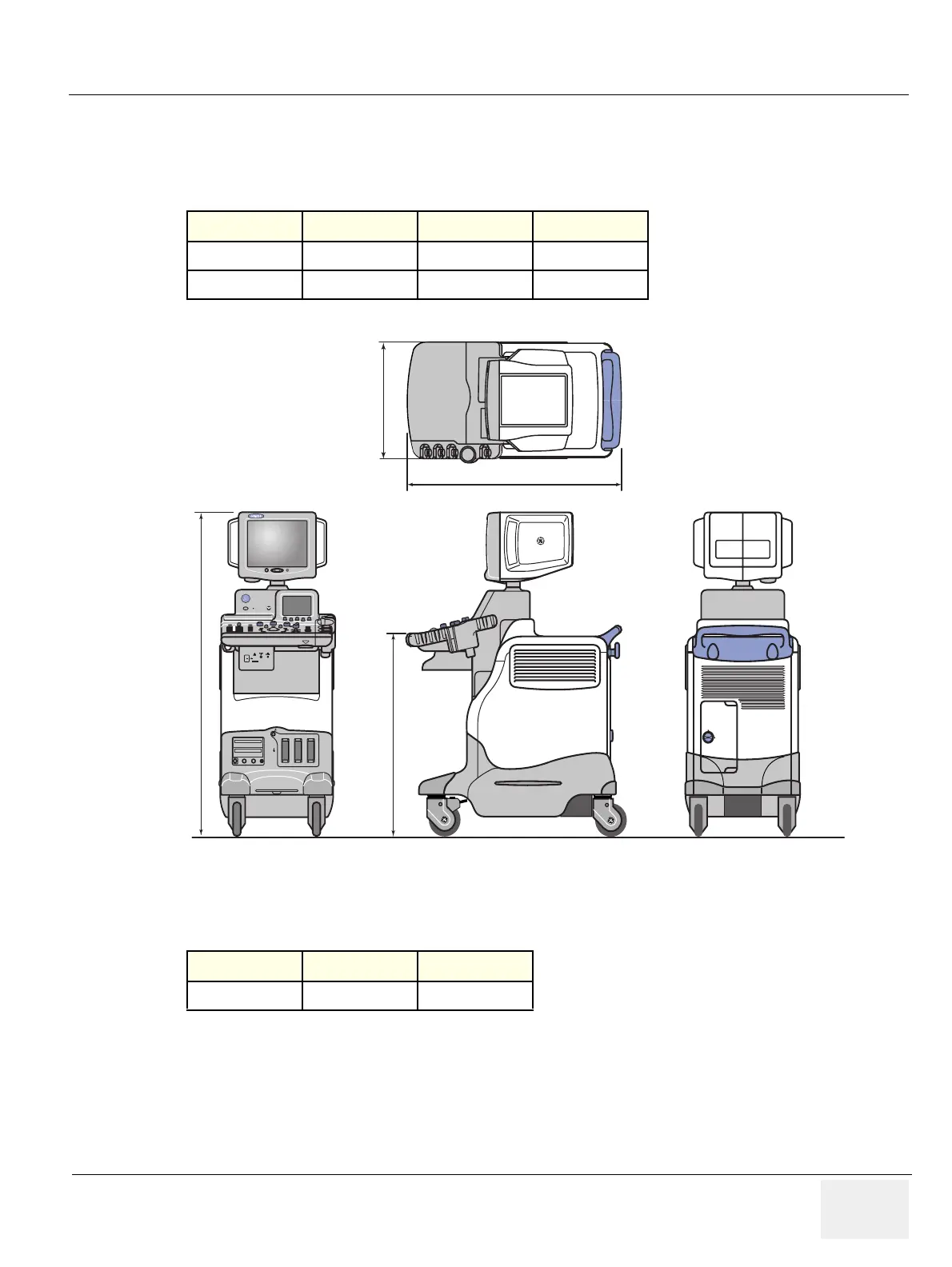

Figure 3-20 Overall Dimensions
Table 3-3 Weight of LOGIQ™ 5 With Monitor and Without Other Peripherals
Model Weight [kg] Weight [lbs]
LOGIQ™ 5 Approximately 180 Approximately 397
1350~1450
800~900
520
990
WEIGHT : 180Kg (397lbs)
including Monitor
NOTE : Length is in mm
Variation +/- 10%
