GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 4 Functional Checks 4-19
4-3-11-4 Archiving Images
To export an exam(s) to a compatible Ultrasound system:
1.) Format the removable media (MOD or CD-ROM). Label the removable media. Answer Yes/OK to
the messages.Press Patient. Deselect any selected patient(s) in the search portion of the Patient
screen. Press Exam Data Transfer (located at the upper, left-hand corner of the Patient menu).
2.) Select Export task Button.
3.) The [From] combo box is not active. It displays Local Archive. The [To] combo box is active. Select
the type of removable media MOD or CD Rom. Then please wait until the patient list is visible.

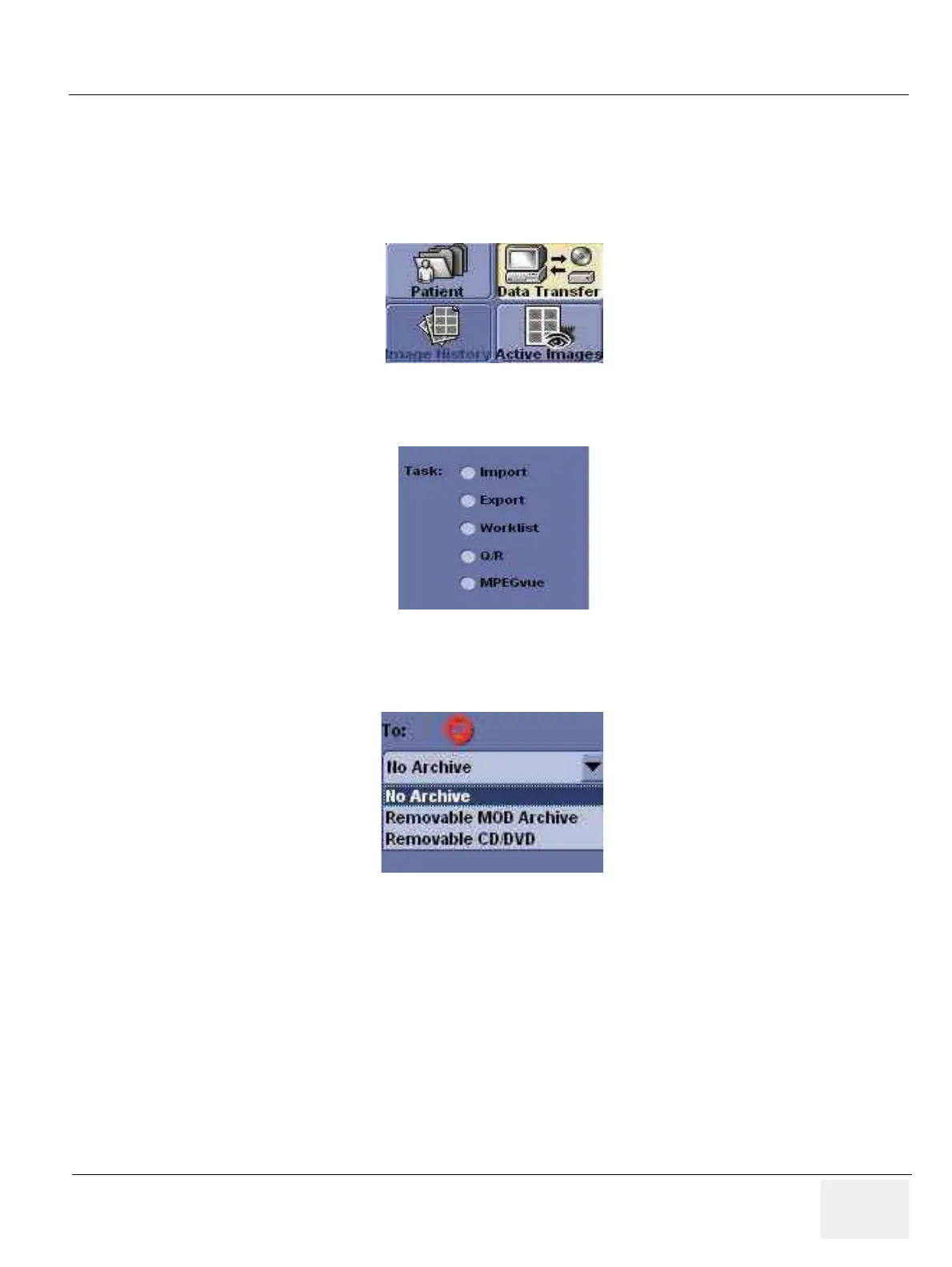

Figure 4-14 Exam Data Transfer
Figure 4-15 Task button
Figure 4-16 To Combo Box
