GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 4 Functional Checks 4-23
Section 4-6Monitor Function Checks
4-6-1 CRT Assy function check procedure
1.) Turn on the system and check the completion of Echoloader loading.
2.) Select "Utility Key" on the Key board and then choose " Test Pattern" and "Resolution" marked in
Figure 4-19.
3.) All the Numbers from '0' to '100' on the Monitor Test pattern screen above should be easily
distinguished.
4-6-2 Monitor Cable Assy function check procedure
1.) Turn on the system and check the completion of Echoloader loading.
2.) Select "Utility Key" on the Key board and then choose " Test Pattern" and "Resolution" marked in
Figure 4-19.
3.) All the Numbers from '0' to '100' on the Monitor Test pattern screen above should be easily
distinguished.
4-6-3 Monitor S/W Assy function check procedure
1.) Turn on the system and check the completion of Echoloader loading.
2.) Select "Utility Key" on the Key board and then choose " Test Pattern" and "Resolution" marked in
Figure 4-19.
3.) All the Numbers from '0' to '100' on the Monitor Test pattern screen above should be easily
distinguished.

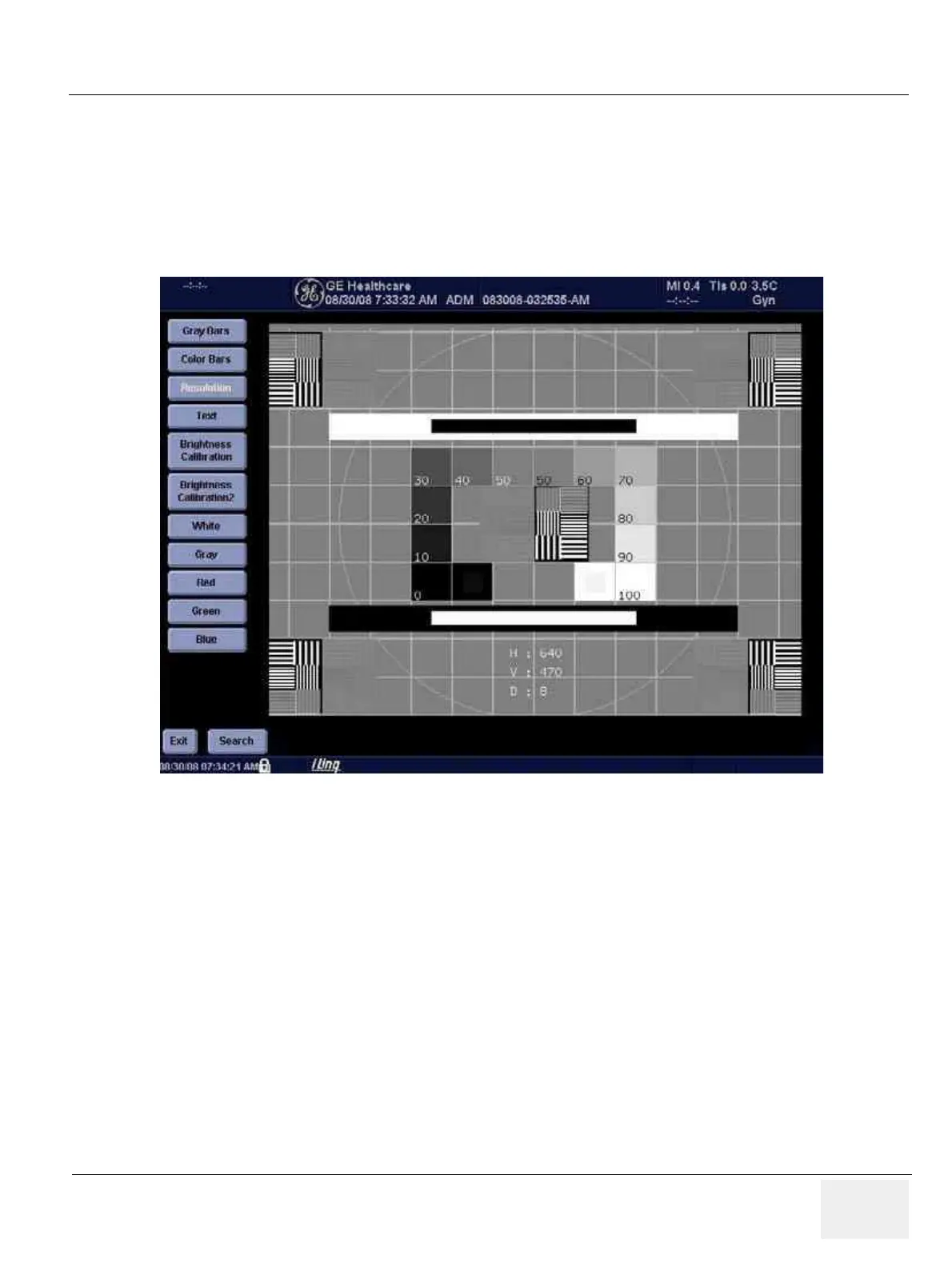

Figure 4-19 Monitor Test pattern screen
