Fixed Needle Biopsy Guide Assembly (continued)

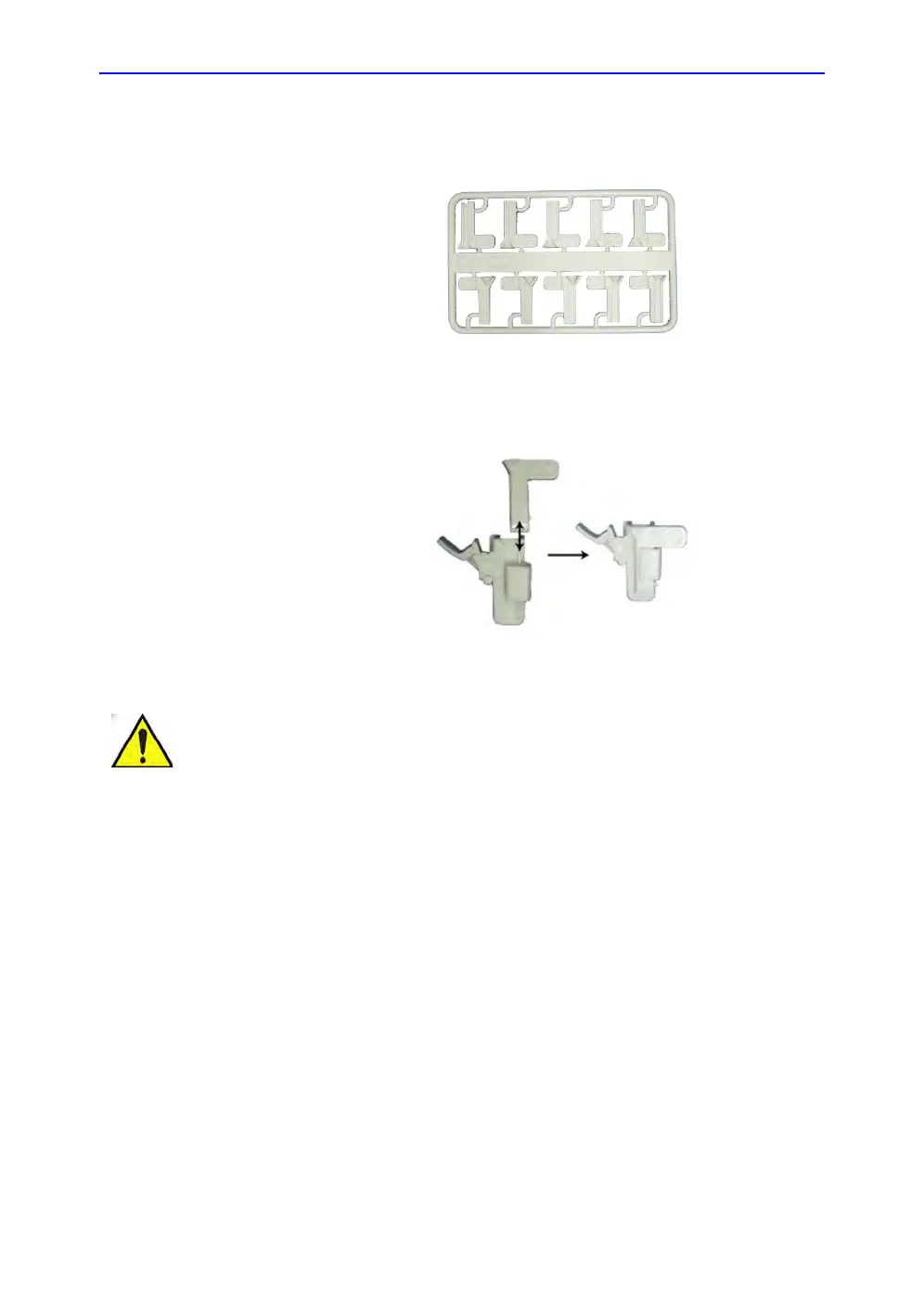

8. Choose the desired gauge (size) needle barrel. Twist it back
and forth to remove it from the plastic tree.
Figure 1-25. Needle Barrel Selection
9. Place the needle barrel into the needle clip with the desired
gauge facing the needle clip and snap into place.
Figure 1-26. Needle Barrel Installation
Ensure that all guide parts are seated properly prior to
performing a biopsy.
