8-2-27 P3RLY/PI128II Assy
8-2-27-1 Tools
• Common philips screwdrivers
8-2-27-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-27-3 Removal procedure
1.) Remove the side left and right covers. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-47..
2.) Remove the Front Cover. Refer to the 8-2-15 "Front Cover" on page 8-49.
3.) Remove the RFC Assy. Refer to the 8-2-32 "RFC Assy" on page 8-77.
4.) Unscrew 8 screws (1-8) and remove the metal cover. Refer to the Figure 8-107.
5.) Unscrew 6 screws (1~6, white arrow marked). Refer to the Figure 8-108.

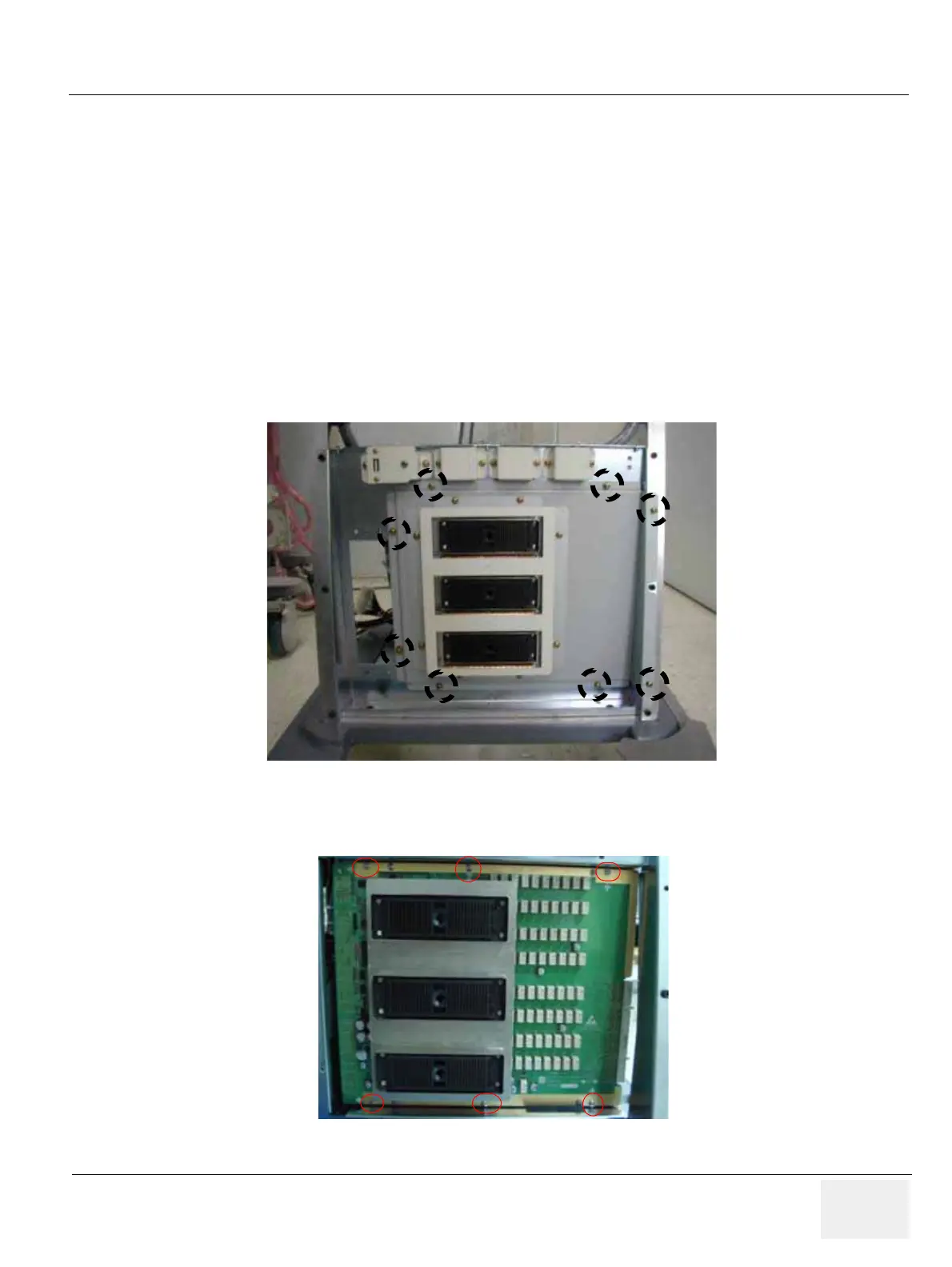

Figure 8-107 P3RLY/PI128II Cover
Figure 8-108 P3RLY/PI128II Assy
