Tube 1
Technique
Edit
When a Tube 1 Protocol Step has been selected, the screen appears as shown
below:

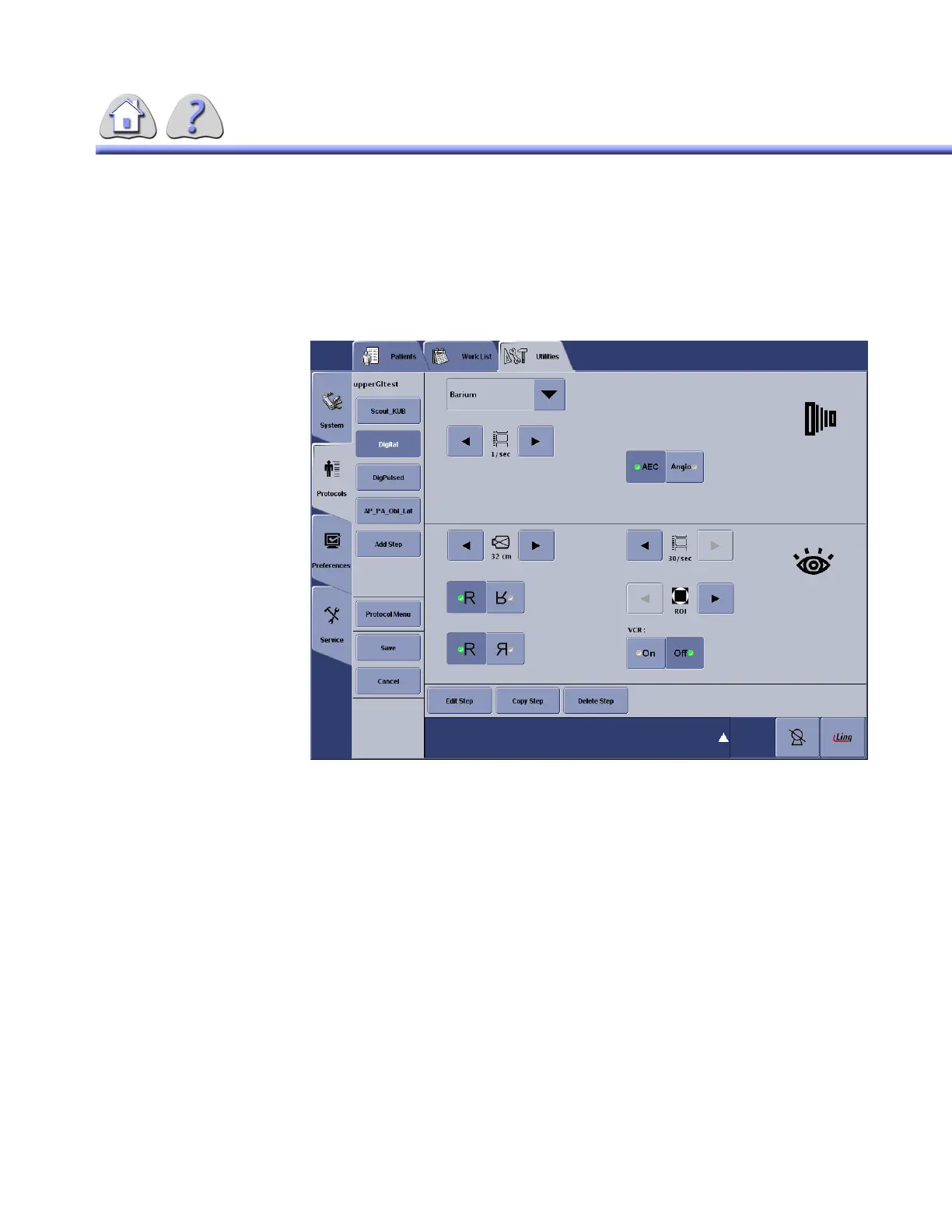

ILLUSTRATION 5-45
TUBE 1 PROTOCOL STEP SCREEN
All of the record technique parameters appears above the top row of the table. All
of the fluoro technique parameters appears above the bottom row of the table.
The user has the option to select between AEC and Angio (DSA)
When Angio is selected the subtraction buttons appears.
The user has the option to select from the available Contrast.
The user has the option to select from available Digital record rates by selecting
the left and right arrows.
For Fluoro, the user has the ability to select Fluoro rate by selecting the left and
right arrows.
For Fluoro the user has the ability to select vertical and horizontal flip.
When the user is adding a Protocol Step, the Tube 1 Technique Edit screen starts
with information for Digital Record and Fluoro settings filled in with the default
techniques.
The user has the ability to select between 6 different Region of Interests (ROI).
