om 5184516-100 Rev. 5 10-11

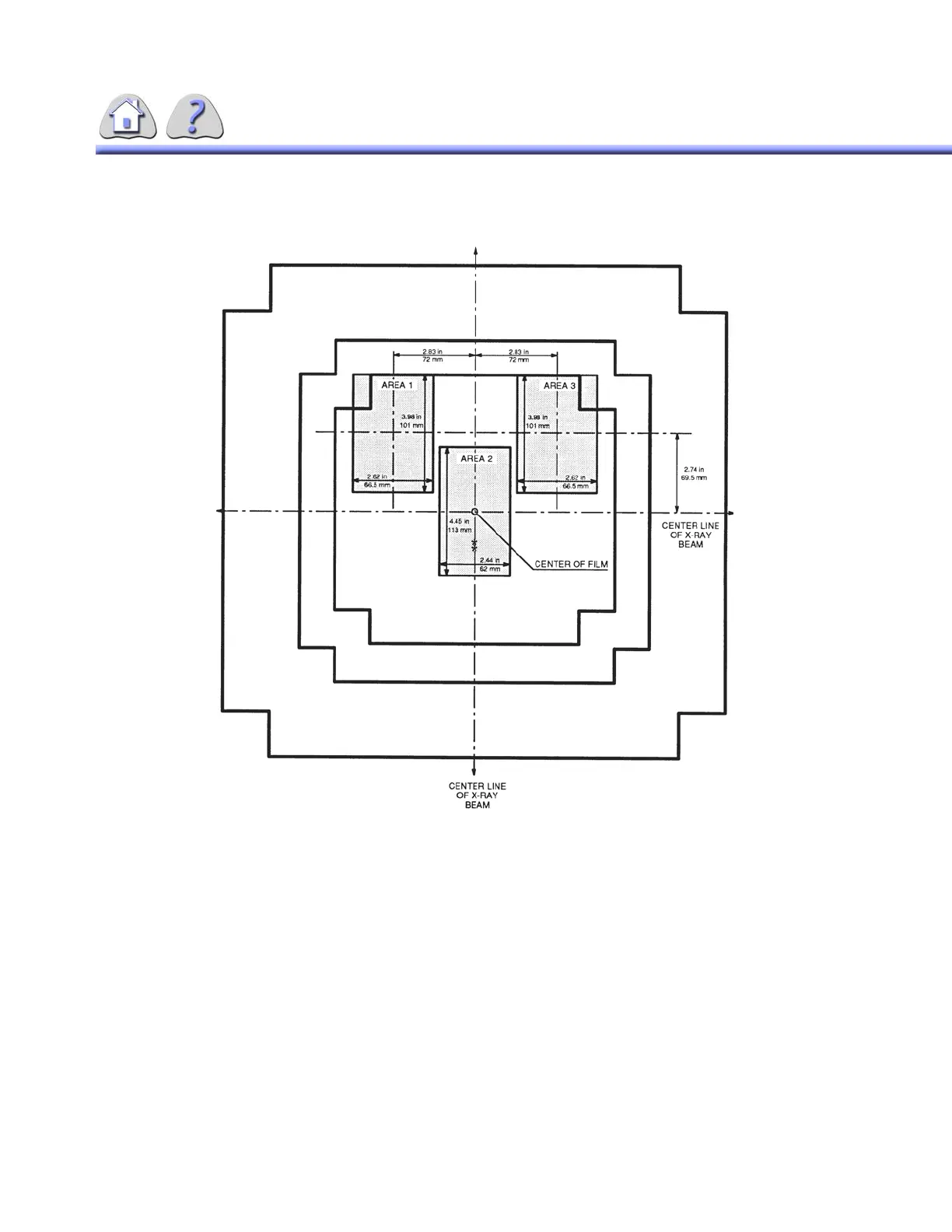

ILLUSTRATION 10-7
FRONT PANEL AEC DETECTOR AREAS
* UNLESS CASSETTE IS ECCENTRICALLY POSITIONED
SECTION 4
SPECIFICATIONS
4-1General Dimensions & Weight
DIMENSIONS
Height ........................................................................... 84.88 in 2156 mm
Width ............................................................................ 26.93 in 684 mm
Depth ............................................................................ 25.82 in 656 mm
(Refer to Illustration “General Dimensions”).
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
