om 5184516-100 Rev. 5 7-23
2-3-3 Auxiliary Digital Operator Console
See ILLUSTRATION 7-15 and TABLE 7-5.

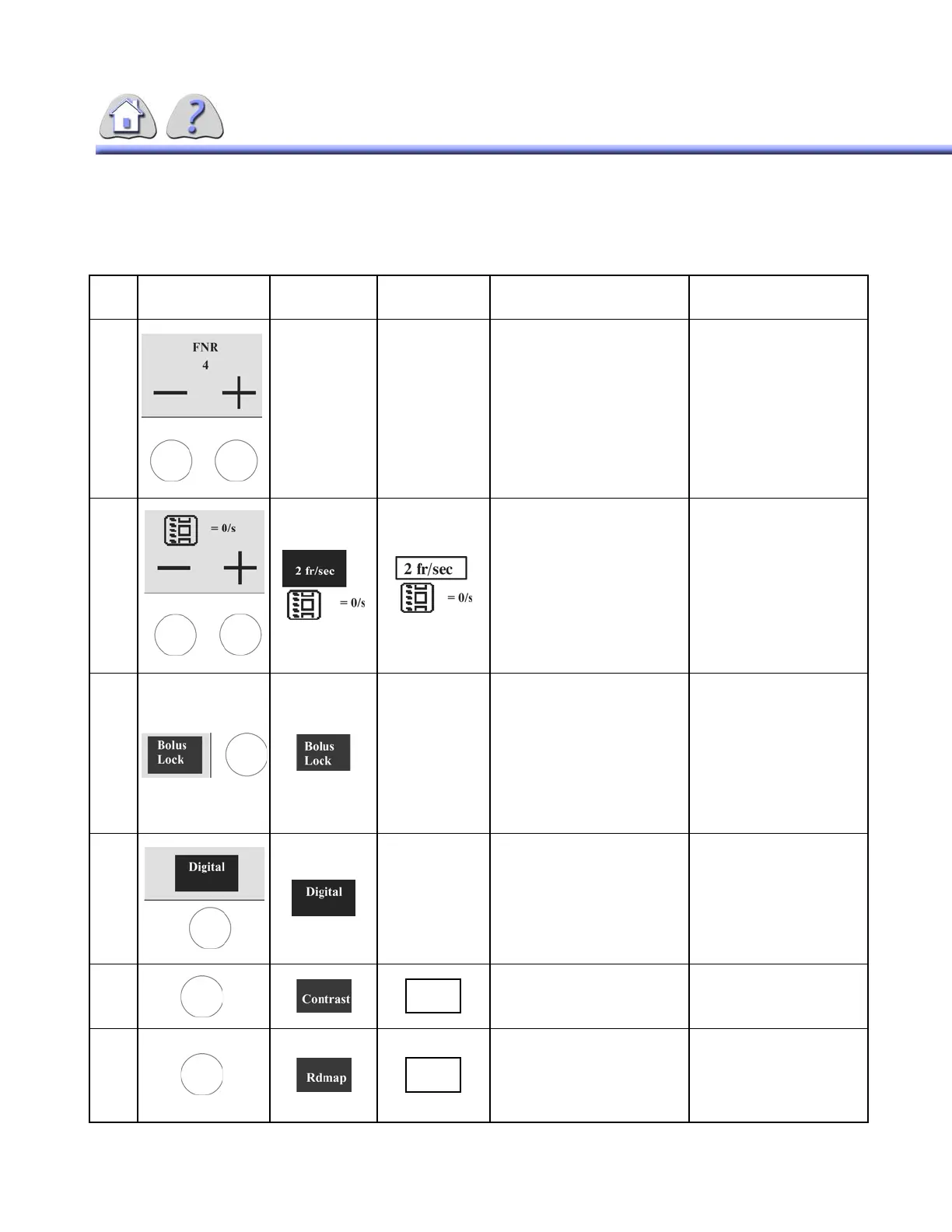

TABLE 7-5
AUXILIARY DIGITAL OPERATOR CONSOLE
Item
Operator
Control
Activated
Display
De-Activated
Display
Description Notes
1
FNR
4
FNR
4
Press to increase or decrease
Digital record Fluoro Noise
Reduction (FNR).
Digital FNR selections
range from 0 to 6.
Use with Fluoro Detail to
optimize image quality and
reduce patient or operator
dose.
See Digital Operator Man-
ual for more information
about the FNR feature.
2 Press to increase or decrease
Digital record frame rate in
frames per second. If a multi-
frame rate is selected before
prep, the selected digital
record frame rate may be
adjusted during the run.
Digital frame rate selections
range from 0 (single expo-
sure) to 7.5 frames per sec-
ond.
See Digital Operator Man-
ual for more information
about frame rate selections.
3
Bolus Lock
Disables one of the following
combinations of IDD locks dur-
ing a Digital PREP and
EXPOSE cycle:
Longitudinal Lock
Lateral and Longitudinal
Locks
Longitudinal and Com-
pression Locks
Select your preferred lock
disable combination during
installation.
4
Digital
Press to select digital mode of
operation.
Changes Auxiliary Console to
Digital Option Controls and
Displays.
5 Press to select the appropriate
contrast media for current
study.
Optional display.
6 Press to select subtracted flu-
oro, maximum opacified road-
map and landmark.
Available with Angio
Option.
Contast
Rdmap
