om 5184516-100 Rev. 5 5-61
4-1IR Remote Keypad Commands

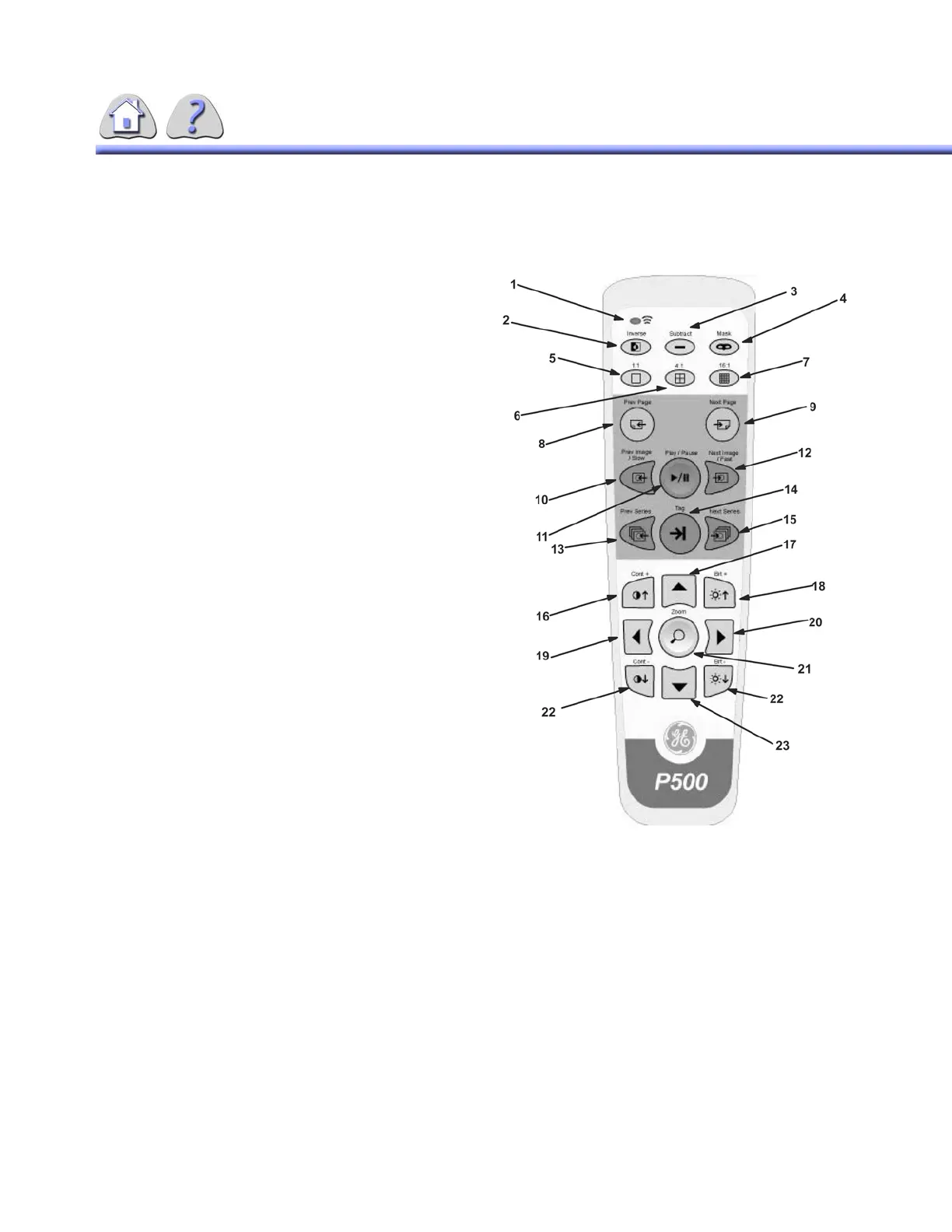

ILLUSTRATION 5-59
IR REMOTE KEYPAD COMMANDS
Key
1. LED Display
2. Inverse
3. Subtract
4. Mask
5. 1 on 1 format
6. 4 on 1 format
7. 16 on1 format
8. Prev Page (only if operational if in 4/1 or 16/1)
9. Next Page (only if operational if in 4/1 or 16/1)
10. Prev Image/Slow*
11. Play/Pause*
12. Next Image/Fast*
13. Previous Series
14. Tag
15. Next Series
16. Increase Contrast
17. Roam Up
18. Increase Brightness
19. Roam Left
20. Roam Right
21. Zoom
22. Decrease Contrast
23. Roam Down
24. Decrease Brightness
* Dual Function: Slow/Fast plays thru loop of images at a slower or faster rate.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
