TABLE 7-8 (CONTINUED)

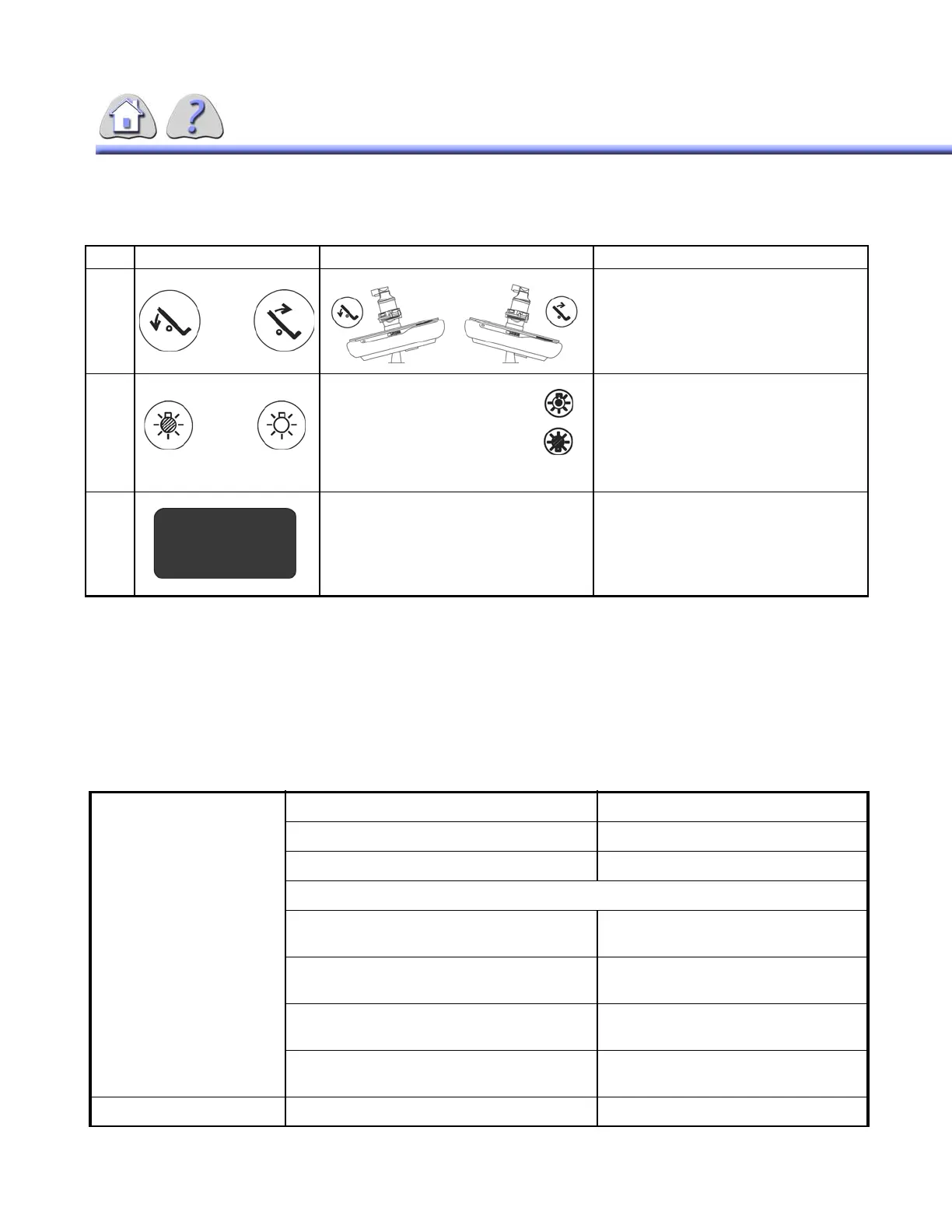

PRECISION 500D TABLE OPERATOR CONTROLS AND DISPLAYS
Section 3
SYSTEM SPECIFICATIONS
3-1Precision 500D Table Specifications
Product specifications for the Precision 500D Table are shown in TABLE 7-9.
TABLE 7-9
PRECISION 500D TABLE SPECIFICATIONS
Item Operator Control Motion Description
6 Press individual button to tilt table top in
desired direction.
7
Press to dim room lights.
Press to brighten room lights.
Available as an Option.
8 Displays table tilt angle in degrees from the
horizontal position.
• + indicates vertical motion.
• – indicates Trendelenburg motion.
Table Travel Longitudinal Travel 60” (152.4 cm)
Longitudinal Travel (either side of center) 30” ± 0.75” (76.2 cm ± 1.9 cm)
Lateral Travel (either side of center) 3.88” ± 0.12” (9.85 cm ± 0.3 cm)
Angulation Speed
Precision 500D 90/30 0° to 4.0° (± 0.5°) / second
120°: 90° vertical to 30° Trendelenburg
Precision 500D 90/15 0° to 4.0° (± 0.5° ) / second
120°: 90° vertical to 15° Trendelenburg
Precision 500D 90/90 0° to 4.0° (± 0.5°) / second
180°: 90° vertical to 90° Trendelenburg
Precision 500D 90/45 0° to 4.0° (± 0.5° ) / second
180°: 90° vertical to 45° Trendelenburg
Table Loading Maximum Rated Patient Load 300 pounds (136.08 kg)
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
