om 5184516-100 Rev. 5 8-5
1-6Tube Support Rotation
The tube unit can be pivoted about the vertical axis of the telescopic column (tube
support rotation) 180° in each direction from the table “NORMAL” position. It auto-
matically locks in each 30° position. To release it, depress the tube support rota-
tion lock lever on the right side of the tube support. Then pivot the tube unit and
release the lever. The tube support will lock in the next 30° position.

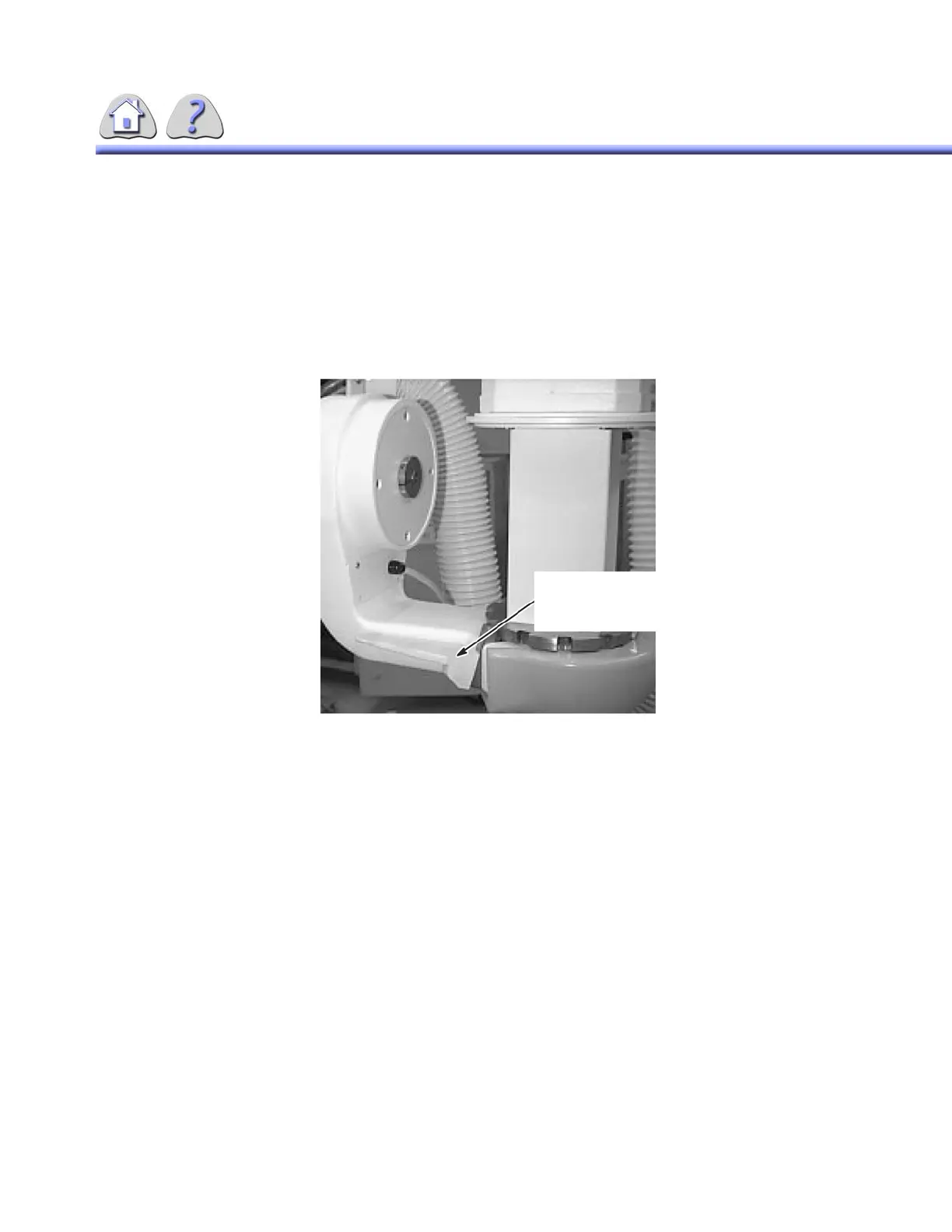

ILLUSTRATION 8-4
TUBE SUPPORT ROTATION DETENT RELEASE LEVER
X–RAY TUBE
ROTATION
DETENT RELEASE
LEVER
FOR TRAINING PURPOSES ONLY!
