om 5184516-100 Rev. 5 C-4

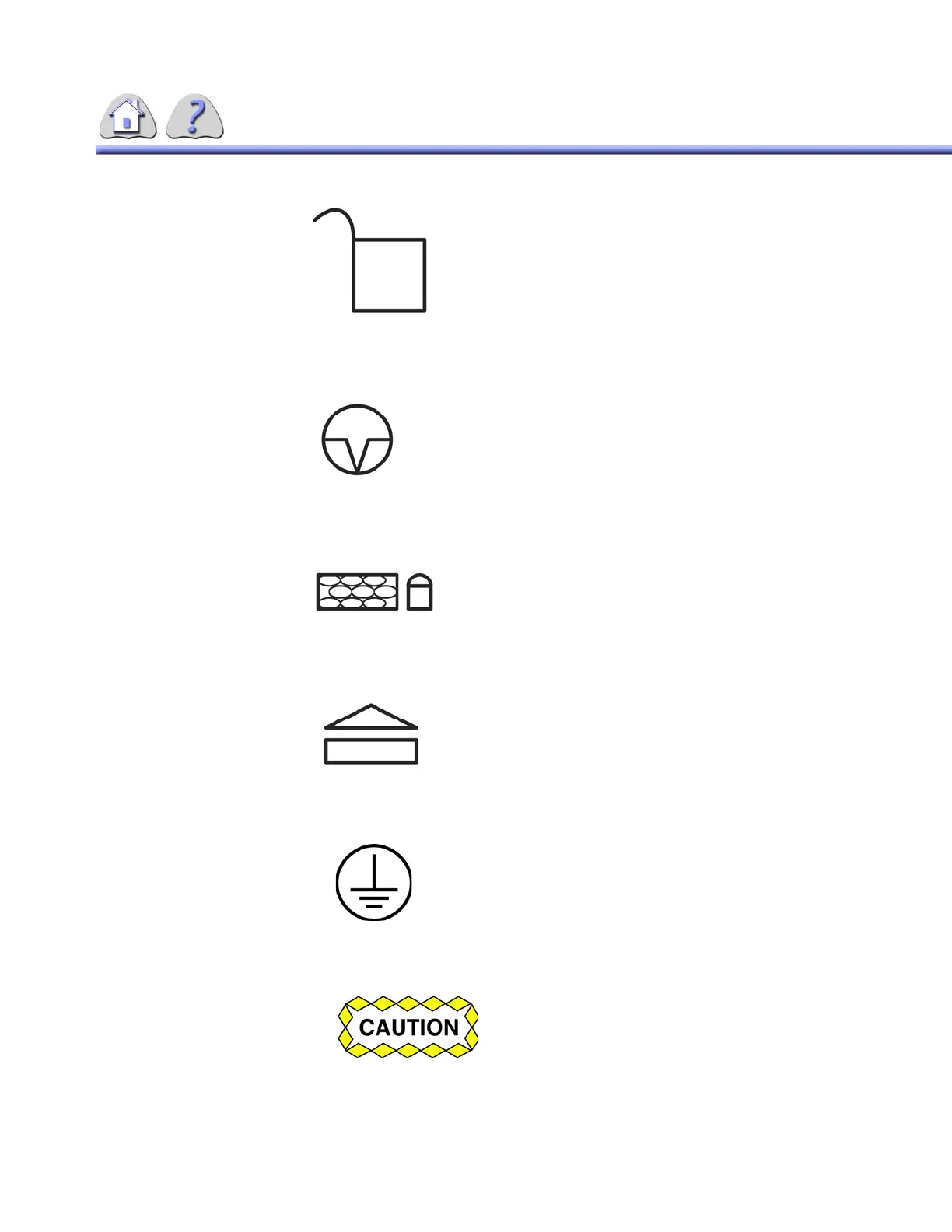

This symbol indicates the position of the lock for the front access panel of the PC
cabinet. The symbol is located just above the lock, on the left edge of the front
panel.
This symbol indicates the PC Reset switch for the system. This symbol and switch
are located on the front panel of the electronics cabinet, below the main ON/OFF
switch.
This symbol indicates the Keyboard Lock switch. This switch does not function for
the system. This switch is located on the front panel of the electronics cabinet,
below the PC Reset switch.
This symbol indicates the Disk Open button for the system Compact Disk Player
or Optical Disk Player. This symbol is located on the front panel of the electronics
cabinet, on the Disk player unit.
Protective earth (ground) – This symbol indicates a grounding location for the inter-
nal current in the system. This symbol is located inside the electronics cabinet.
This symbol indicates Caution should be used when touching hardware in this area
– refer to the Technical Manual for instructions on handling the hardware. This sym-
bol is located on the electronics cabinet, and on the Isolation Transformer.
FOR TRAINING PURPOSES ONLY!
