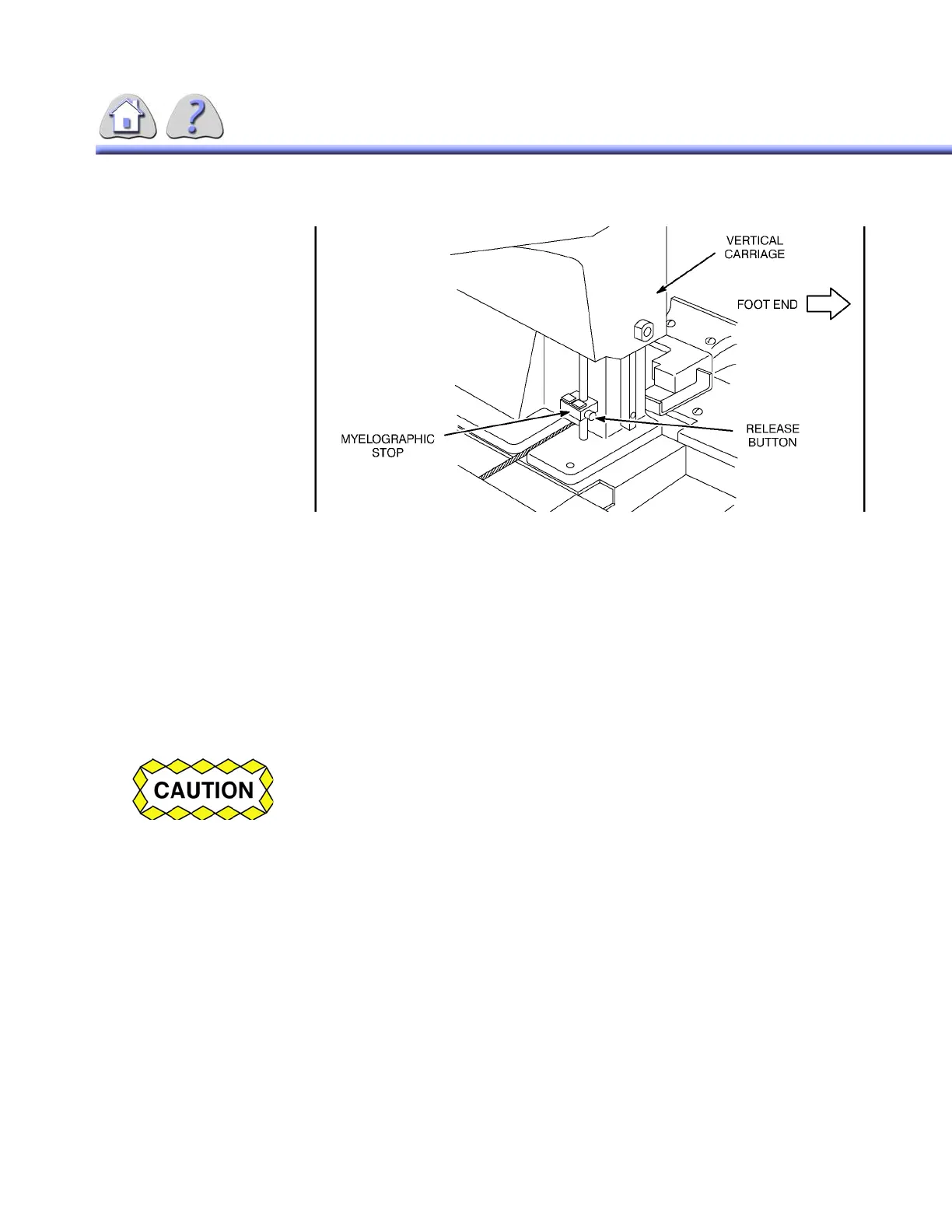

ILLUSTRATION 2-6
MYELOGRAPHIC STOP
5-15Myelographic Boots (Optional)
These boots are intended for patient’s support during myelography and are
attached to slots in the standard foot rest. When using these boots, mount the
shoulder rest to the table for added safety assurance. THE SHOULDER REST
NEED NOT BE IN ACTUAL CONTACT WITH THE PATIENT.
5-16Cone Operation
The cone drive is inoperable when the table HORIZONTAL STOP is OFF.
5-17Lead Apron
1. Move the apron handle to position the lead apron. Position the handle
between the two lines for horizontal work. Outside the rear line it will slide, as
the table is angulated, in position for vertical work. Refer to ILLUSTRATION
2-7.
2. To remove the Lead Apron.
a. Pull out release button, and pull handle handle down.
b. Slide apron out of track towards rear of spot film device.
Ensure that spot film device is not on top of patient when bringing
cone in and out of Field of View.
FOR TRAINING PURPOSES ONLY!
