om 5184516-100 Rev. 5 3-6

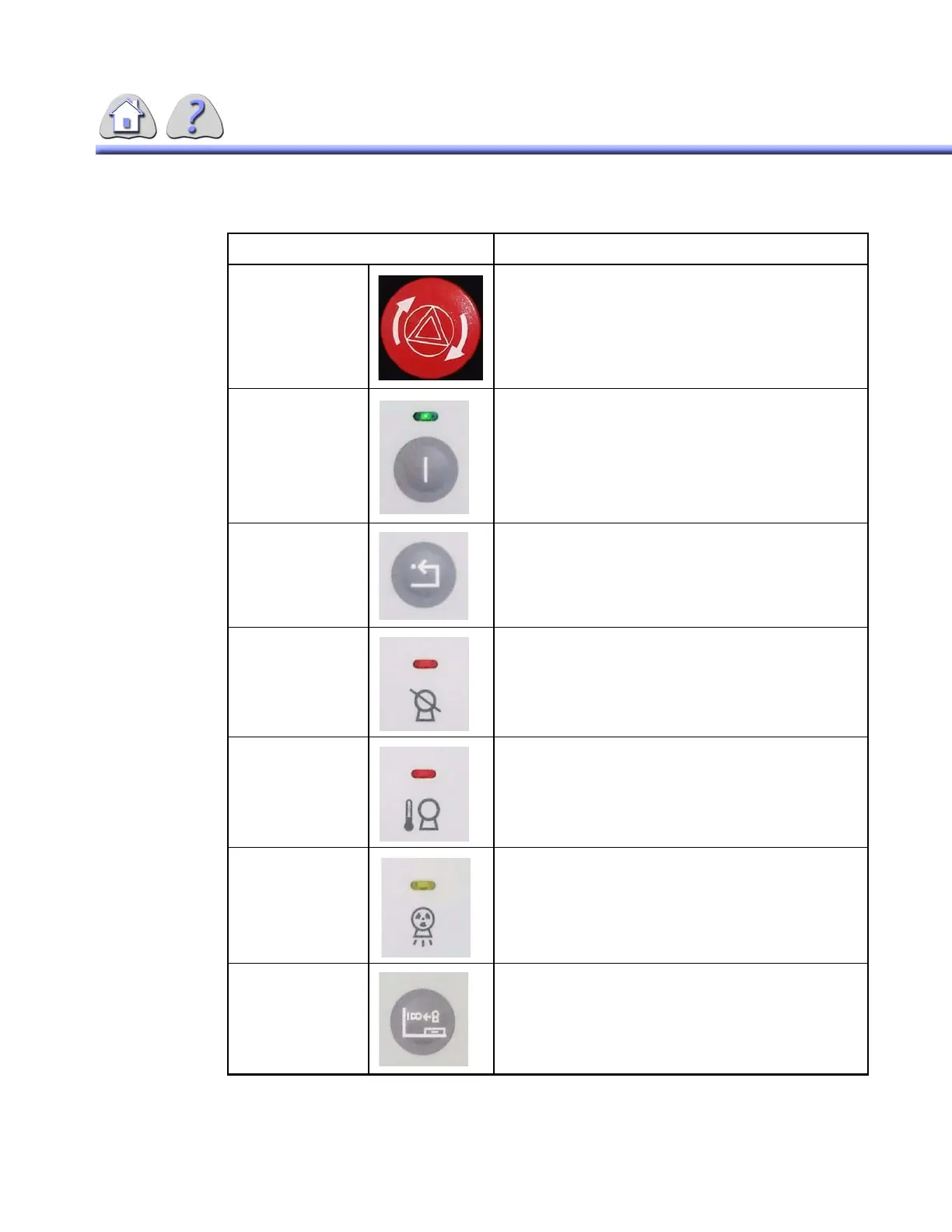

Table 4: RCIM controls
Control Description
1. Emergency Stop
button
Immediately powers down the system (including table,
OTS, wallstand, and x-ray tubes) and stops image expo-
sure.
• To engage: Press the button.
• To release: Turn the button clockwise (indicated by
the arrows on the button) until it stops, then release.
2. Power On button Turns on the power for the entire system.
Also used in combination with the Auto Positioning button
to activate Auto Positioning functions.
3. Reset button Shuts down and re-starts the system for QAP or in the
event of software failure.
4. Expose Hold
indicator
Lights up when there is some inhibit to taking exposures.
Click the Expose Hold button on the IUI monitor for a list
of all current inhibits.
5. Tube Overheat
indicator
Lights up when the tube is too hot to continue taking
exposures.
Allow the tube to cool until the The LED turns off.
6. X-ray Exposure
indicator
Lights up when x-rays are being emitted, including tube
warm up and QAP.
7. Auto Positioning
button
Initiates automated system positioning.
Not active in this product.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
