When x-ray tube 1 is not selected, the IDD console appears as follows:

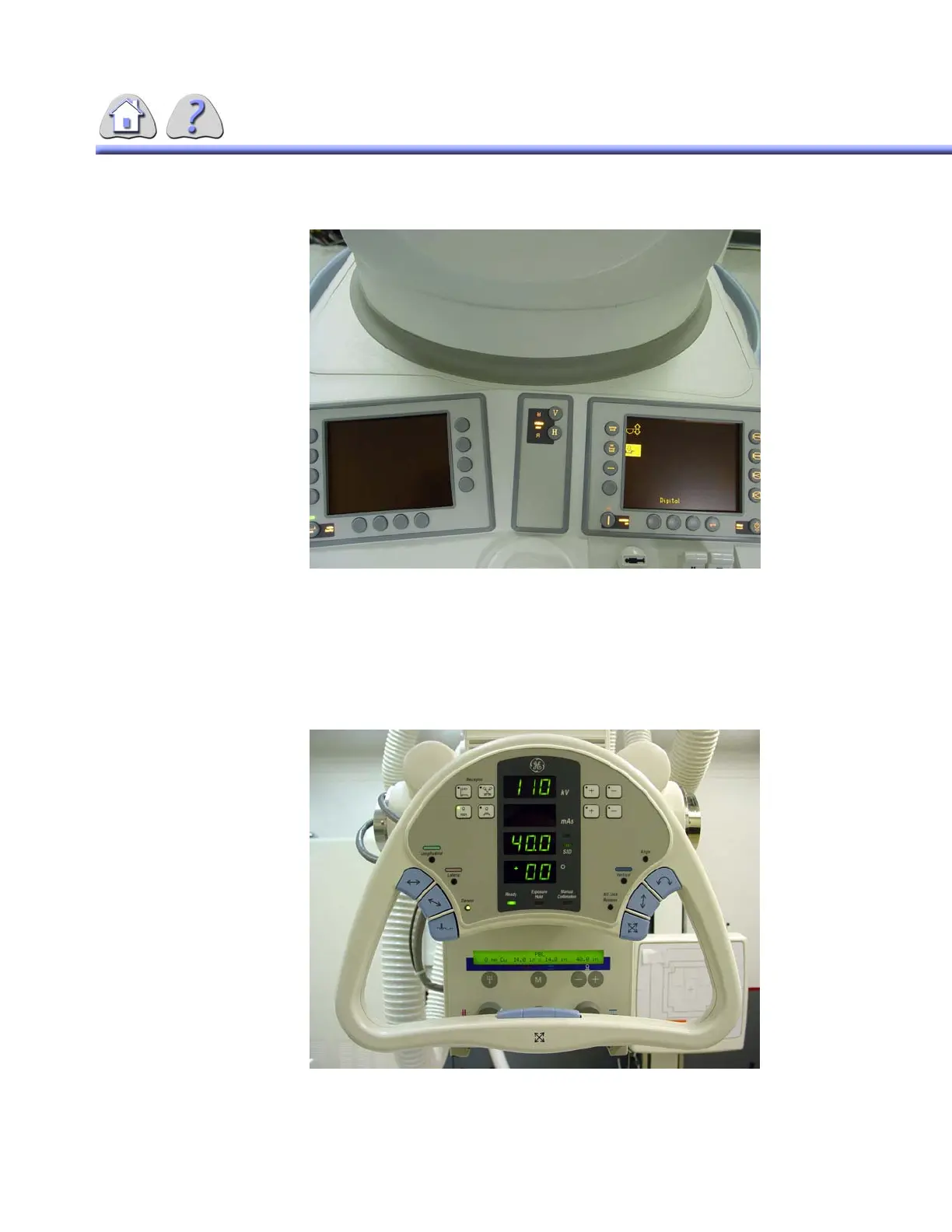

ILLUSTRATION 3-4 Tube1 “Not Selected”
7-2X-ray tube 2
For radiography examinations, x-ray tube 2 is selected (over table x-ray tube).
The Overhead Tube Suspension (OTS) user interface displays the following typi-
cal information:
ILLUSTRATION 3-5 Tube2 Selected
