om 5184516-100 Rev. 5 5-2
The Digital Image screen displays a Patient List Screen after boot up. For an
explanation of the functionality of this screen, refer to Chapter 6, Section 3.

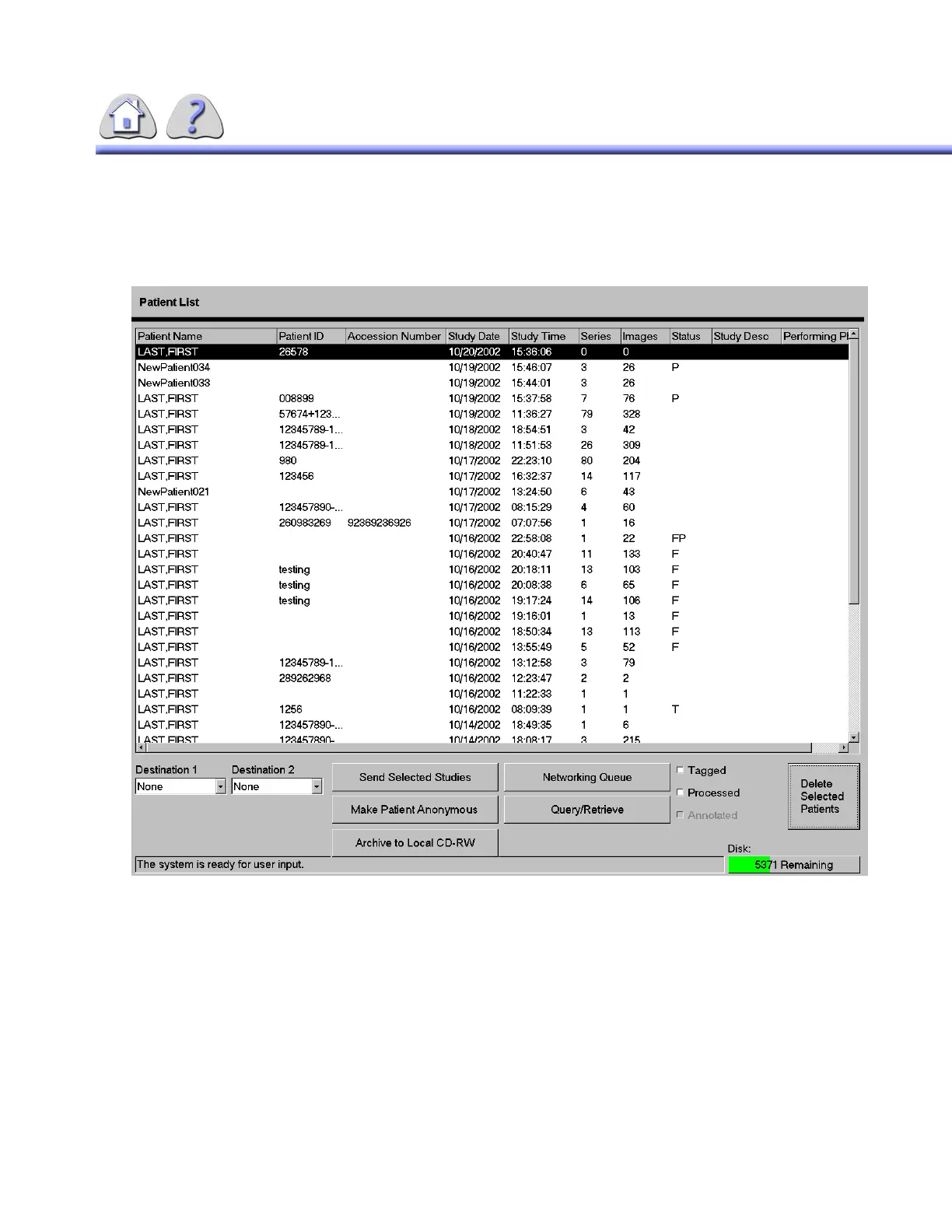

ILLUSTRATION 5-2
PATIENT LIST SCREEN
Depending on system configuration, the exam room monitor is blanked whenever
the patient list is displayed (for patient privacy). The exception is for rooms with
no control room monitor; in this case the exam room monitor will always display
the patient list.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
