om 5184516-100 Rev. 5 5-11
ILLUSTRATION 5-11

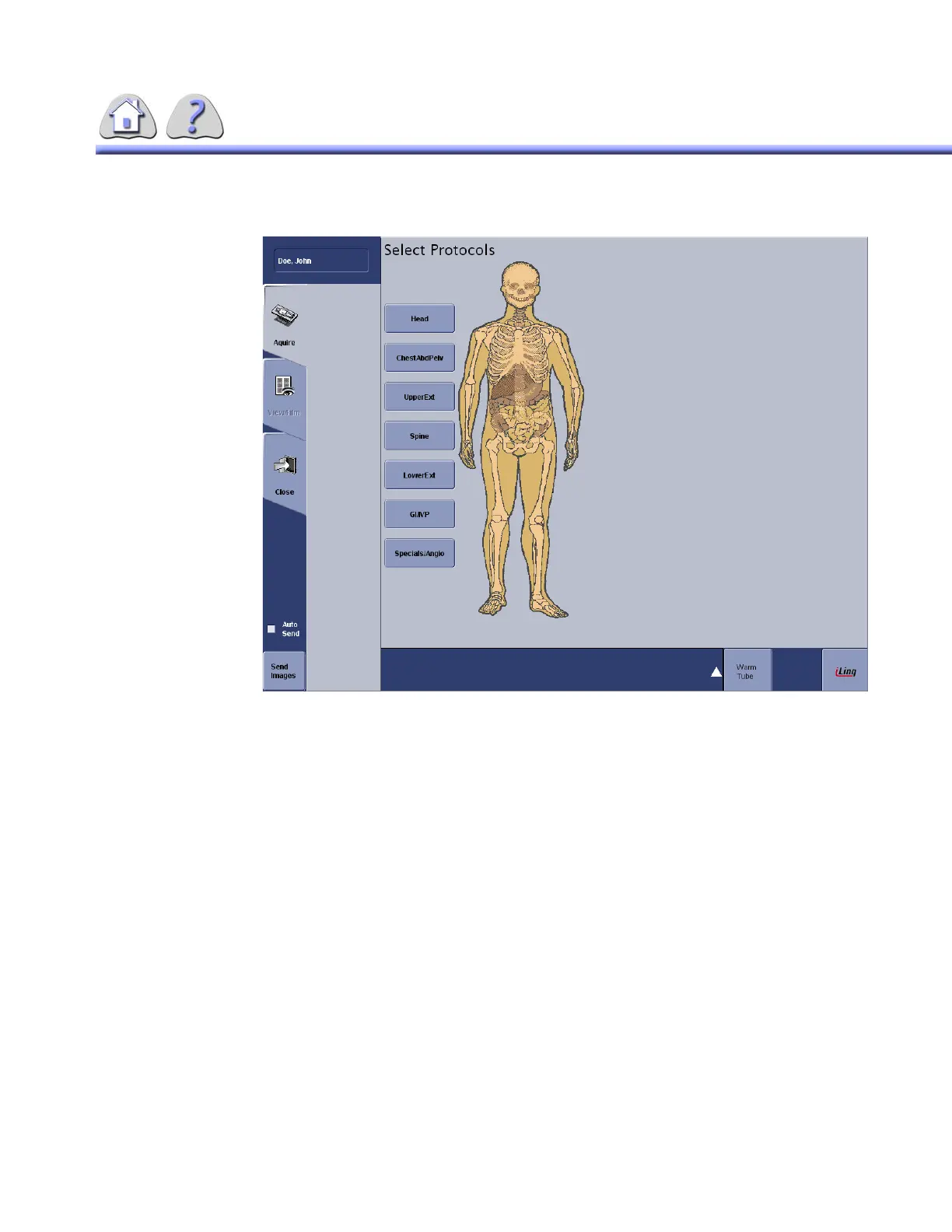

SELECT PROTOCOLS SCREEN (1)
This screen will display the patient’s name selected for acquisition. By pressing
the Select Protocols button, you will be able to choose an anatomical category.
No patient name will appear if cassette only has been selected.
Image Monitor screen will display a blank screen except for the “Site Name”.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
