GFK-1504K Chapter 5 Interposing Terminals and Auxiliary I/O Terminal Strips 5-11
5
Main Base, IC200CHS101
Expansion Base, IC200CHS102
Disconnect-Style Interposing I/O Terminals

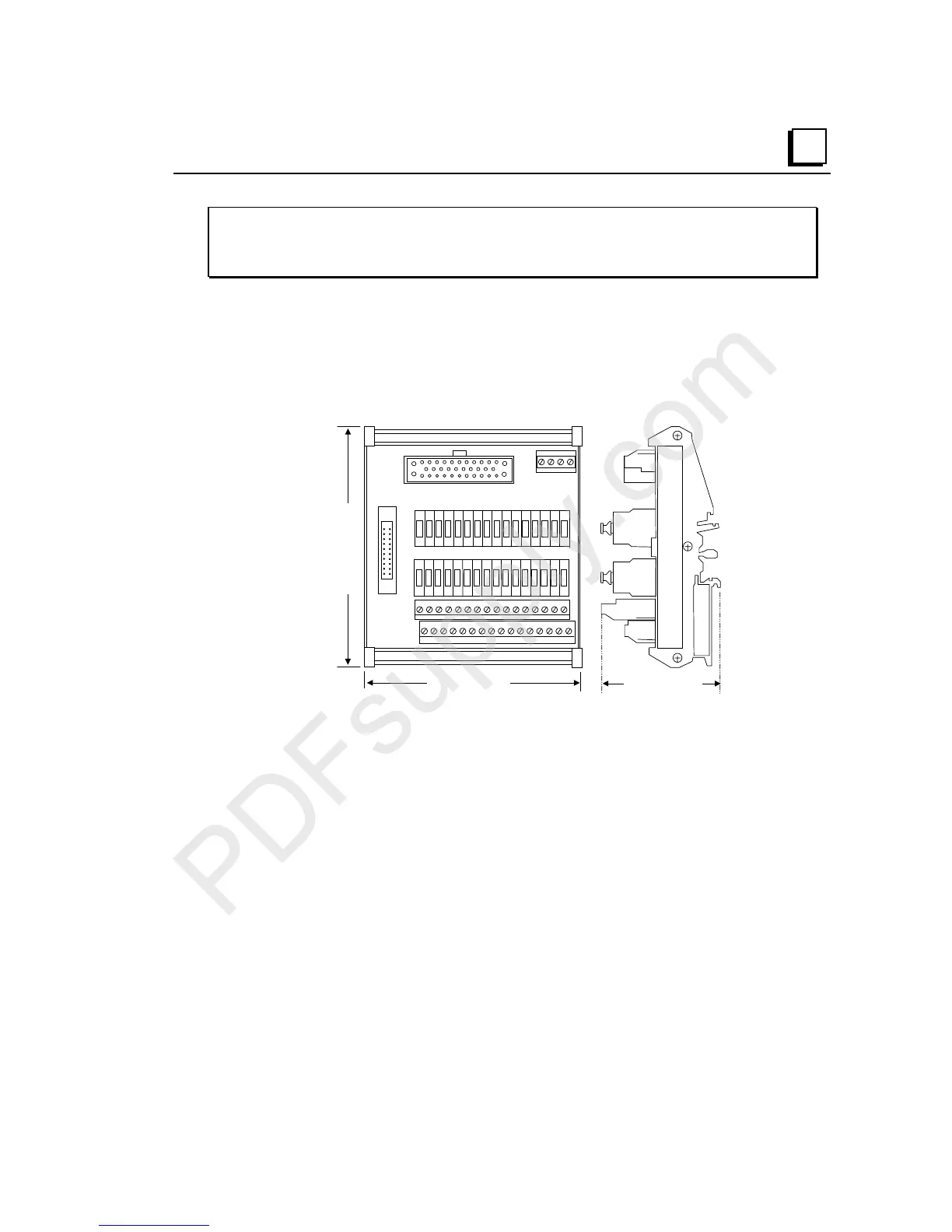

Main Base – IC200CHS101
This Interposing Disconnect Base has a connector (J1) for attaching a cable from the
Connector-Style I/O Carrier and 36 box-style terminals for field I/O wiring and power
connections. The I/O Interposing Disconnect Base also has an expansion connector (J2)
that can be used to attach to an Interposing Disconnect Expansion Base (IC200CHS102).
J1
J2
115mm
4.5in
65mm
2.6in
This base provides connection for the terminals on the “A” side of the VersaMax
connector (A1-A18). Two groups of common terminals (W1-W8 and X1-X8) can be used
for connecting two-wire devices without additional auxiliary terminal blocks.
The base has an individual knife-switch disconnect for each signal and common terminal
and its corresponding pin on the VersaMax cable connector.
