5-12 VersaMax® Modules, Power Supplies, and Carriers User's Manual – February 2003 GFK-1504K
5
IC200CHS101, Main Base
IC200CHS102, Expansion Base
Disconnect-Style Interposing I/O Terminals

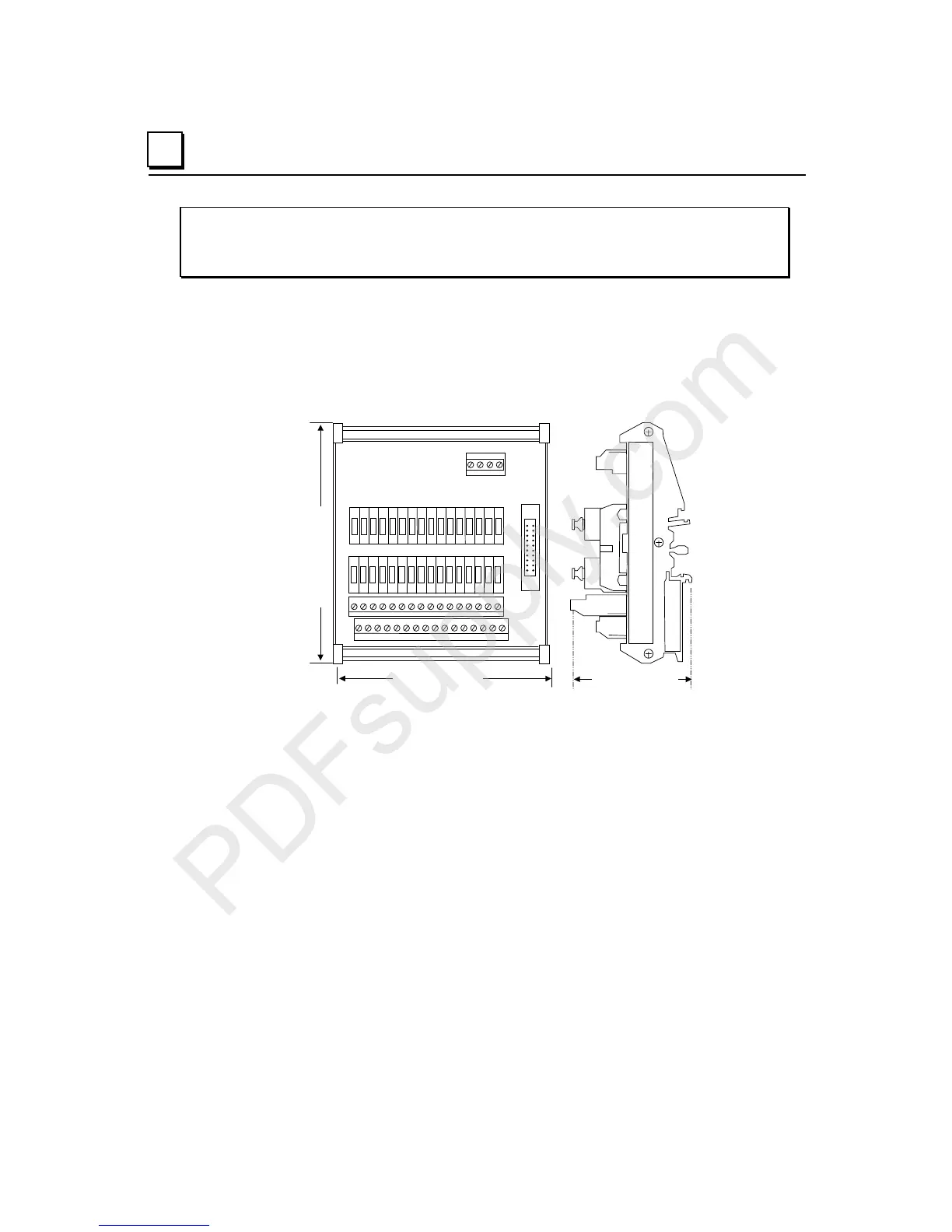

Expansion Base – IC200CHS102
The Interposing Disconnect Expansion Base has a connector (J2) for attaching a ribbon
cable to the expansion connector of the Main Base (IC200CHS101) and 36 box-style
terminals for field I/O wiring and power connections. The Expansion base includes a
ribbon cable for connecting the expansion base to the main base.
J2
115mm
4.5in
65mm
2.6in
The Expansion Base provides connection for terminals on the “B” side of the VersaMax
connector (B1-B18). In addition, it has two groups of common terminals (Y1-Y8 and Z1-
Z8) for connecting two-wire devices without additional auxiliary terminal blocks.
The base has an individual knife-switch disconnect for each signal and common terminal
and its corresponding pin on the VersaMax cable connector.
