GFK-1504K Chapter 7 Discrete Input Modules 7-23
7

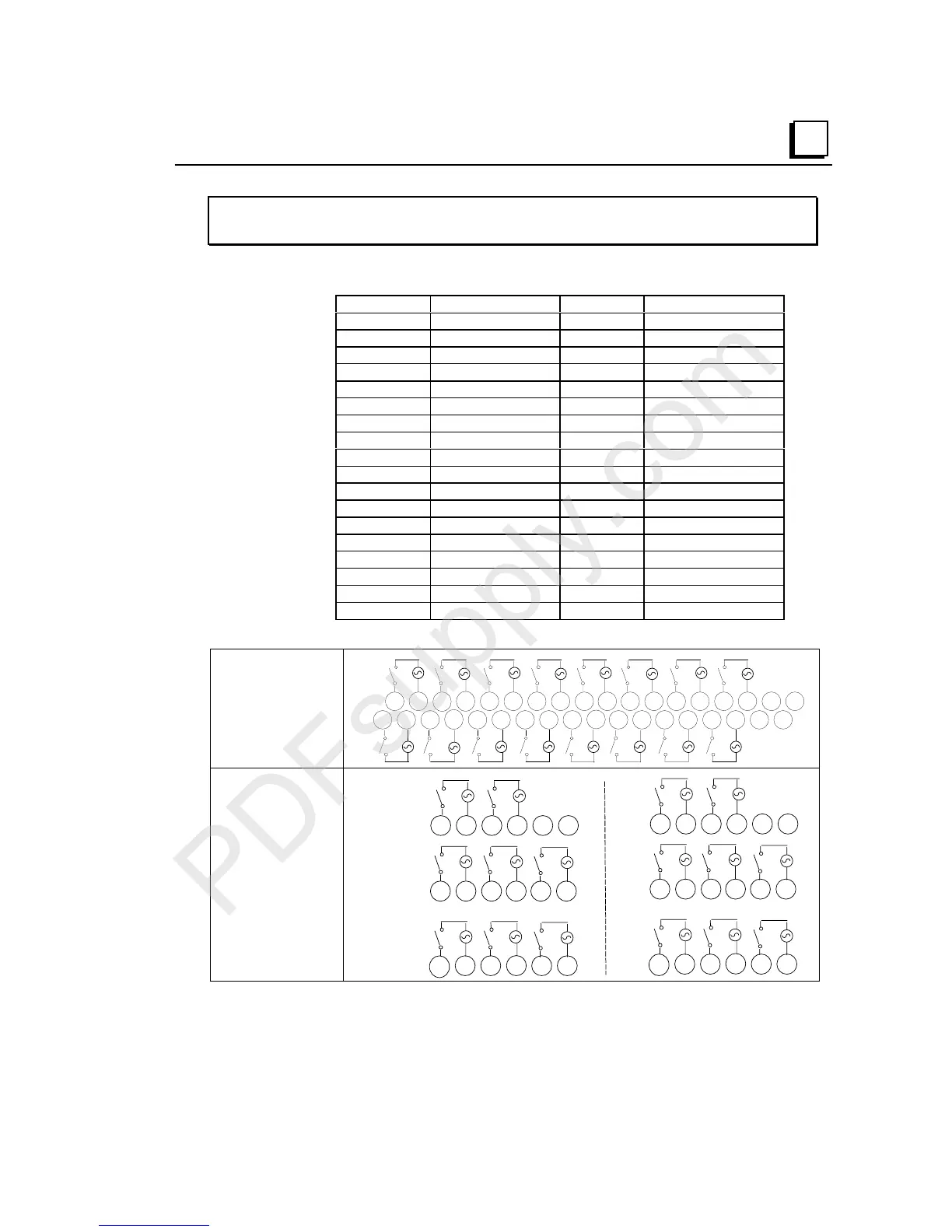

IC200MDL243
Input Module, 120VAC Isolated 16 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Input 1 B1 Input 9
A2 Input 1 Return B2 Input 9 Return
A3 Input 2 B3 Input 10
A4 Input 2 Return B4 Input 10 Return
A5 Input 3 B5 Input 11
A6 Input 3 Return B6 Input 11 Return
A7 Input 4 B7 Input 12
A8 Input 4 Return B8 Input 12 Return
A9 Input 5 B9 Input 13
A10 Input 5 Return B10 Input 13 Return
A11 Input 6 B11 Input 14
A12 Input 6 Return B12 Input 14 Return
A13 Input 7 B13 Input 15
A14 Input 7 Return B14 Input 15 Return
A15 Input 8 B15 Input 16
A16 Input 8 Return B16 Input 16 Return
A17 No connection B17 No connection
A18 No connection B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
I1 I2 I3 I4 I5 I6 I7 I8
I9
N
H
I10
N
H
I11
N
H
I12
N
H
I13
N
H
I14
N
H
I15
N
H
I16
N
H
12345678
9
11 12 13 14 15 16 17 18
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
10
B
A
H
H
H
H
H
H
H
H
NN N NNN N N
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
I2
I8
H
H
N
I4
I6
H
H
N
N
N
123456
13
14 15 16 17 18
A
789 111210
B
123456
13
14 15 16 17 18
789 111210
I10
I12
I14
I16
H
H
H
H
N
N
N
N
I7
I5
H
H
N
N
I1
I3
H
H
N
N
I15
I13
H
H
N
N
I9
I11
H
H
N
N
