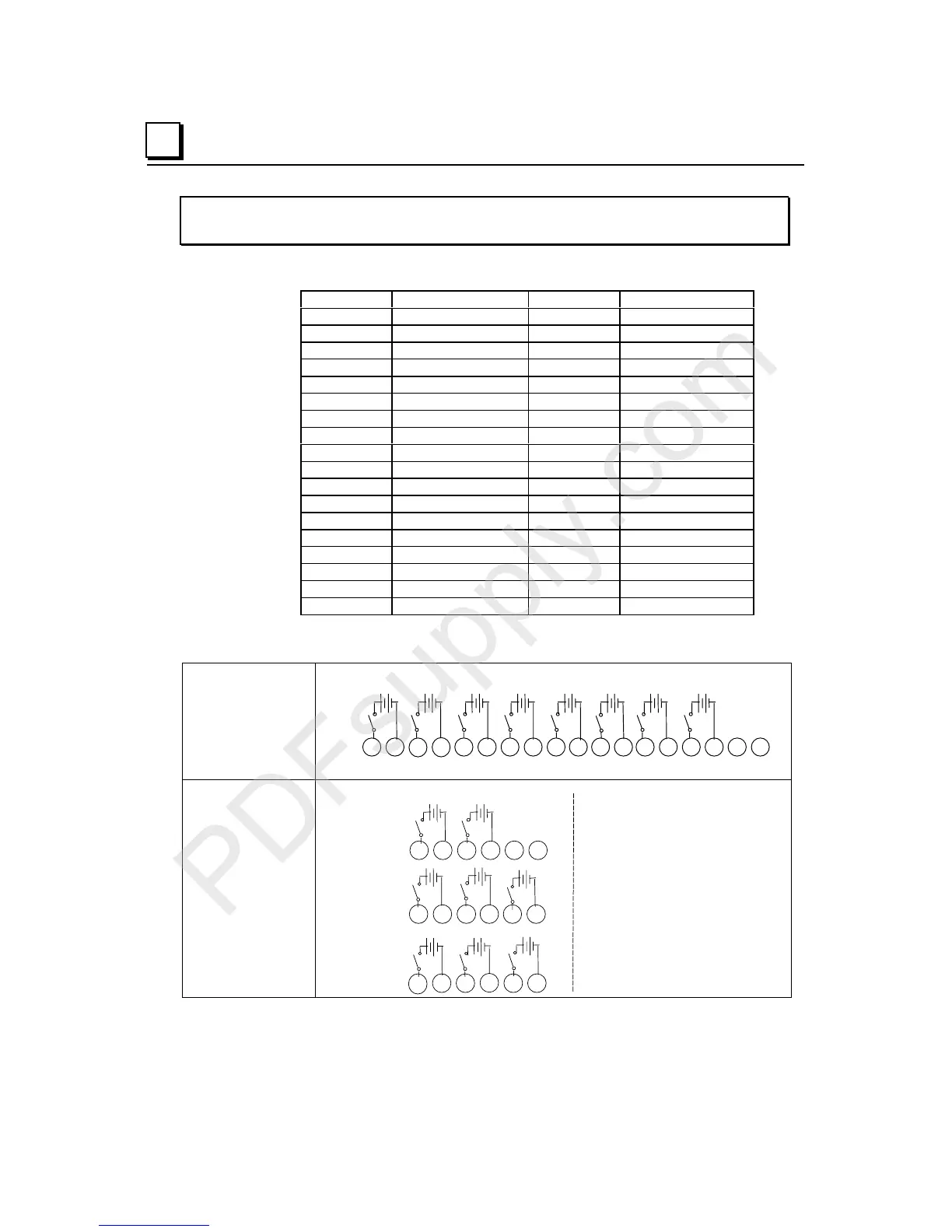

7-30 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
7
IC200MDL631
Input Module, 125VDC Pos/Neg Logic Isolated 8 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Input 1 B1 No connection
A2 Input 1 return B2 No connection
A3 Input 2 B3 No connection
A4 Input 2 return B4 No connection
A5 Input 3 B5 No connection
A6 Input 3 return B6 No connection
A7 Input 4 B7 No connection
A8 Input 4 return B8 No connection
A9 Input 5 B9 No connection
A10 Input 5 return B10 No connection
A11 Input 6 B11 No connection
A12 Input 6 return B12 No connection
A13 Input 7 B13 No connection
A14 Input 7 return B14 No connection
A15 Input 8 B15 No connection
A16 Input 8 return B16 No connection
A17 No connection B17 No connection
A18 No connection B18 No connection
Using a shorting bar with this module eliminates the point-to-point isolation.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
I1 I2 I3 I4 I5 I6 I7 I8
A
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
A
123456
13
14 15 16 17 18
789 111210
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
I1 I2
I3
I4
I5
I6
I7 I8
