8-12 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
8

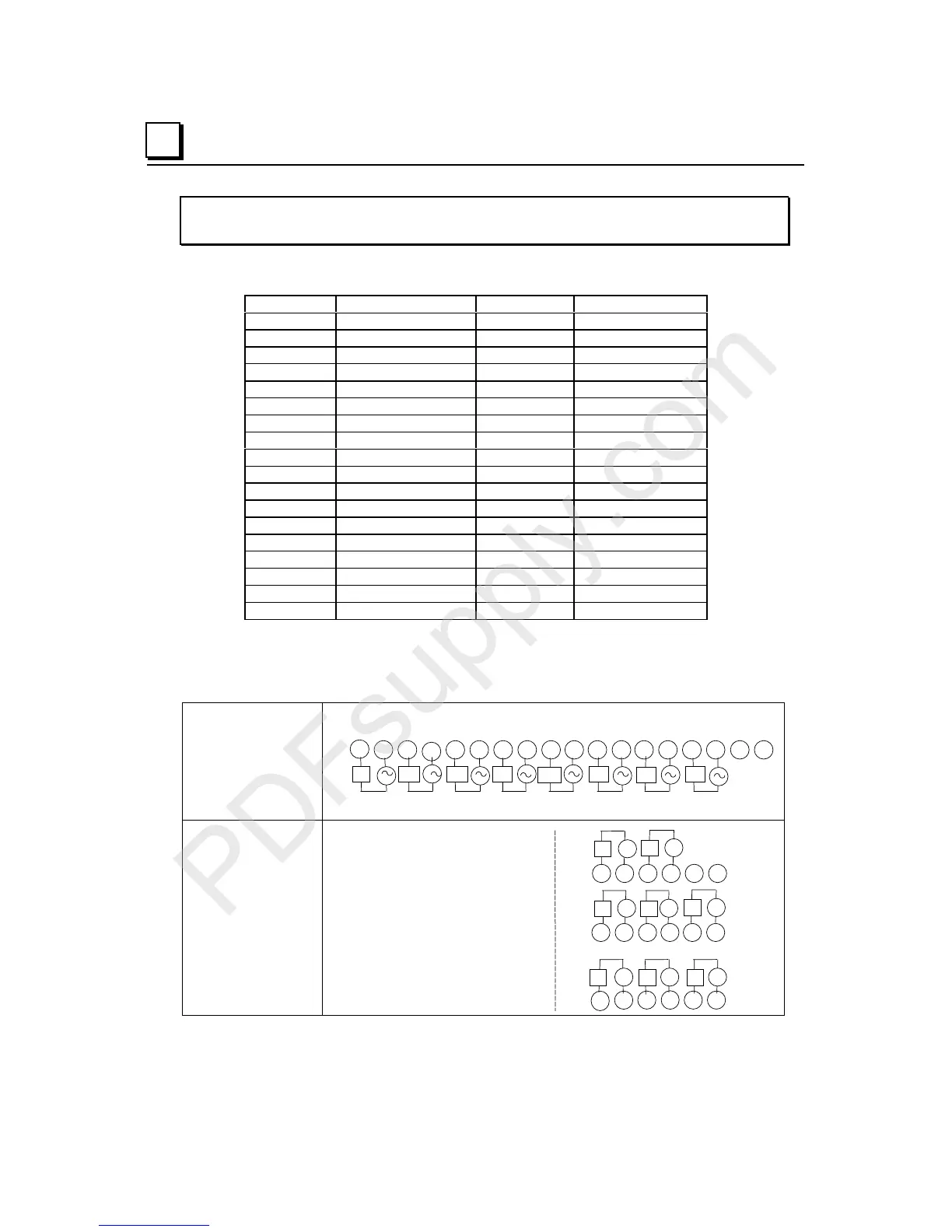

IC200MDL331
Output Module, 120VAC 2.0 Amp, Isolated 8 Points
Field Wiring
Terminal Connection Terminal Connection
A1 No connection B1 Output 1
A2 No connection B2 Output 1 Ret
A3 No connection B3 Output 2
A4 No connection B4 Output 2 Ret
A5 No connection B5 Output 3
A6 No connection B6 Output 3 Ret
A7 No connection B7 Output 4
A8 No connection B8 Output 4 Ret
A9 No connection B9 Output 5
A10 No connection B10 Output 5 Ret
A11 No connection B11 Output 6
A12 No connection B12 Output 6 Ret
A13 No connection B13 Output 7
A14 No connection B14 Output 7 Ret
A15 No connection B15 Output 8
A16 No connection B16 Output 8 Ret
A17 No connection B17 No connection
A18 No connection B18 No connection
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. See chapter 2, "Installing Wiring for I/O Devices-Wiring to Inductive
Loads" for more information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Q1 Q2 Q3 Q4
Q5
Q6
Q6
Q8
1 2 3 4 5 6 7 8 9 111213141516 171810
B
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
B
123456
13
14 15 16 17 18
789 111210
Q1 Q2
Q4
Q8
Q3
Q5
Q6
Q7
~~
~
~
~
~
~
~
To Next Page
