GFK-1504K Chapter 8 Discrete Output Modules 8-13

IC200MDL331

Output Module, 120VAC 2.0 Amp, Isolated 8 Points

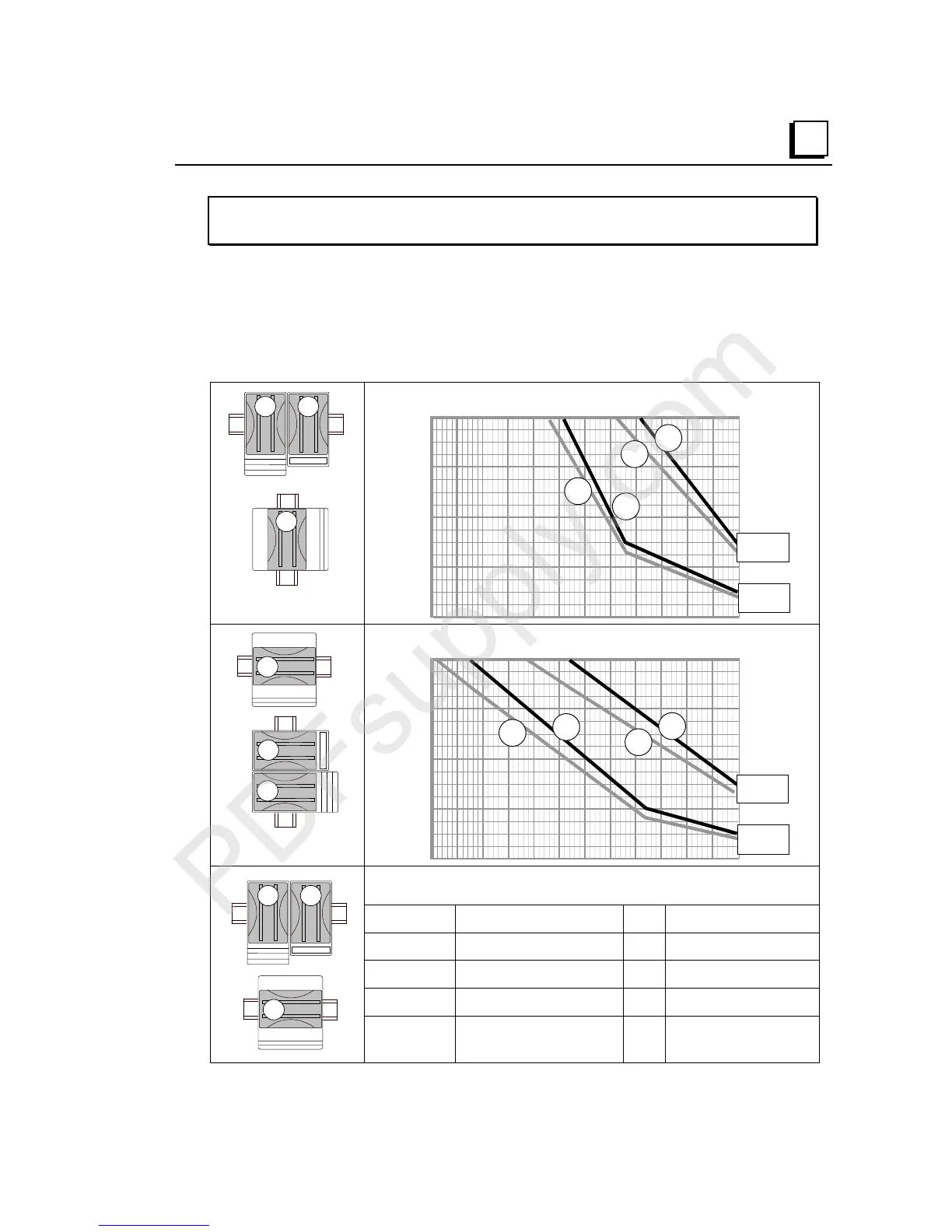

Thermal Derating

The number of points that can be on at the same time depends on the ambient

temperature, the output current, and the orientation of the module and DIN rail. The

charts below show thermal deratings for the module at 120VAC with the indicated

output current per point.

A A

Ambient Tem

erature

Number of Points On At the Same Time

60ºC50ºC 55ºC45ºC40ºC35ºC

30ºC

25ºC20ºC15ºC10ºC

5ºC

1 Amp

per Point

2 Amps

per Point

Ambient Tem

erature

Number of Points On At the Same Time

60ºC50ºC 55ºC45ºC40ºC35ºC

30ºC

25ºC20ºC15ºC10ºC

5ºC

1 Amp

per Point

2 Amps

per Point

Examples of Combining 2A and 0.5A Outputs

Temperature

Number of 2 Amp Points and Number of 0.5A Points

60deg C 1 + 0

50deg C 1 + 5

40deg C 2 + 2

A A

40deg C 1 + 7
