GFK-1504K Chapter 9 Discrete Mixed Modules 9-37
9

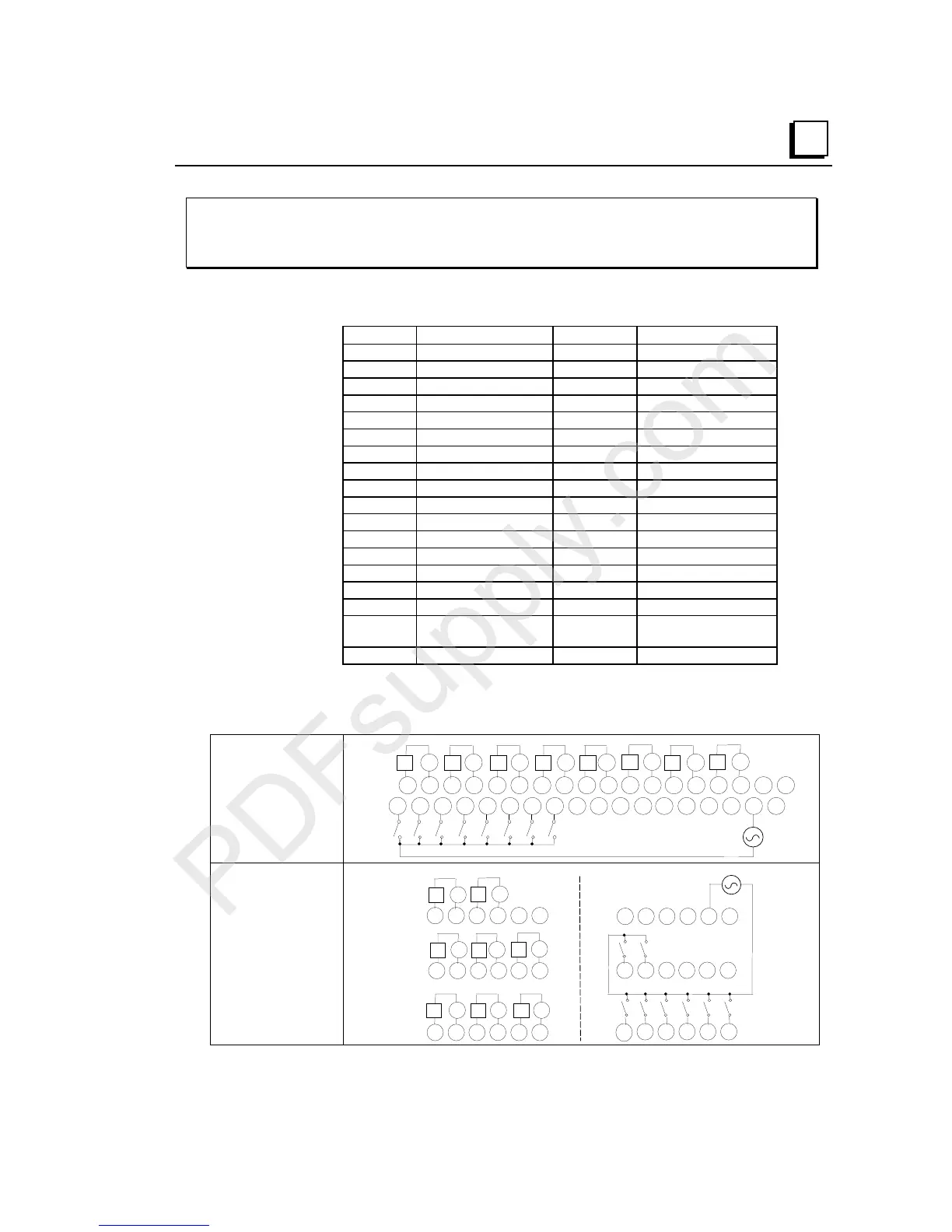

IC200MDD848
Mixed Module, Output 120VAC 0.5A per Pt Isolated 8 Points /
Input 120VAC Grouped 8 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Output 1-1 B1 Input 1
A2 Output 1-2 B2 Input 2
A3 Output 2-1 B3 Input 3
A4 Output 2-2 B4 Input 4
A5 Output 3-1 B5 Input 5
A6 Output 3-2 B6 Input 6
A7 Output 4-1 B7 Input 7
A8 Output 4-2 B8 Input 8
A9 Output 5-1 B9 No connection
A10 Output 5-2 B10 No connection
A11 Output 6-1 B11 No connection
A12 Output 6-2 B12 No connection
A13 Output 7-1 B13 No connection
A14 Output 7-2 B14 No connection
A15 Output 8-1 B15 No connection
A16 Output 8-2 B16 No connection
A17 No connection B17 Inputs 1-8 Common
(Return)
A18 No connection B18 No connection
Outputs are individually isolated. When wiring outputs to inductive loads, use of external
suppression circuits is recommended. See chapter 2, "Installing Wiring for I/O Devices-
Wiring to Inductive Loads" for more information.
