GFK-1504K Chapter 10 Analog Input Modules 10-5

IC200ALG230

Analog Input Module, 12 Bit Voltage/Current 4 Channels

Jumper Selections

Jumpers on JMP 1 and JMP 2 select voltage or current operation and voltage range. In

current mode, JMP2 is ignored.

Jumper Range

None +/-10V

1 4-20mA

2 0-10V

1 & 2 Not recommended

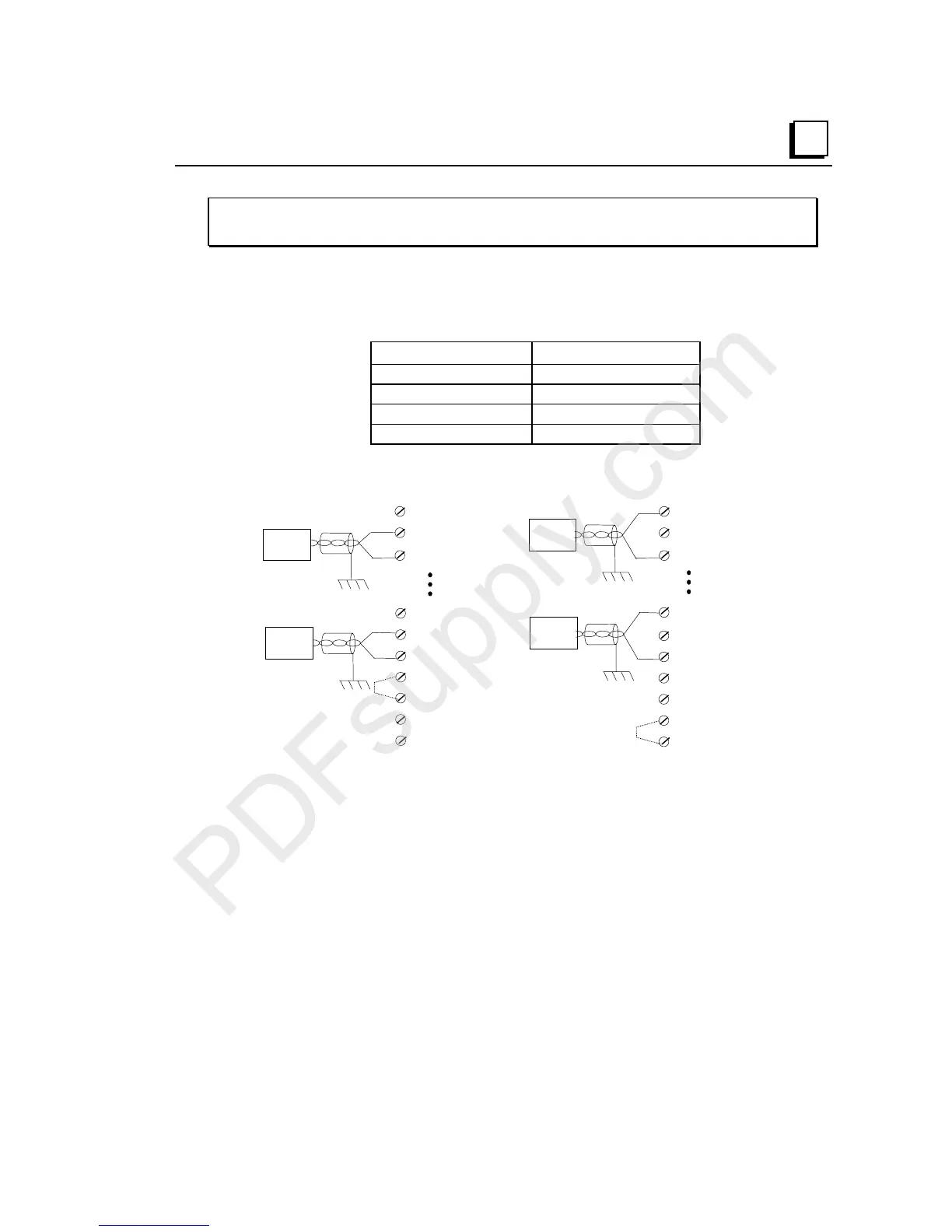

Wiring Examples

Voltage Inputs

Current Inputs

Voltage

Source

Voltage

Source

Current

Source

Current

Source

I 1

V 1

V 4

I 1

Return (common)

V 1

V 4

JMP 2B

JMP 1B

Jumper present

selects 0-10V

Inputs

I 4

JMP 1A

JMP 2A

I 4

JMP 1A

JMP 2A

Jumper present

selects Current

uts

Return (common)

An external source is needed to power input transceivers.
