10-26 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
10
IC200ALG261
Analog Input Module, 15 Bit Differential Voltage 8 Channels

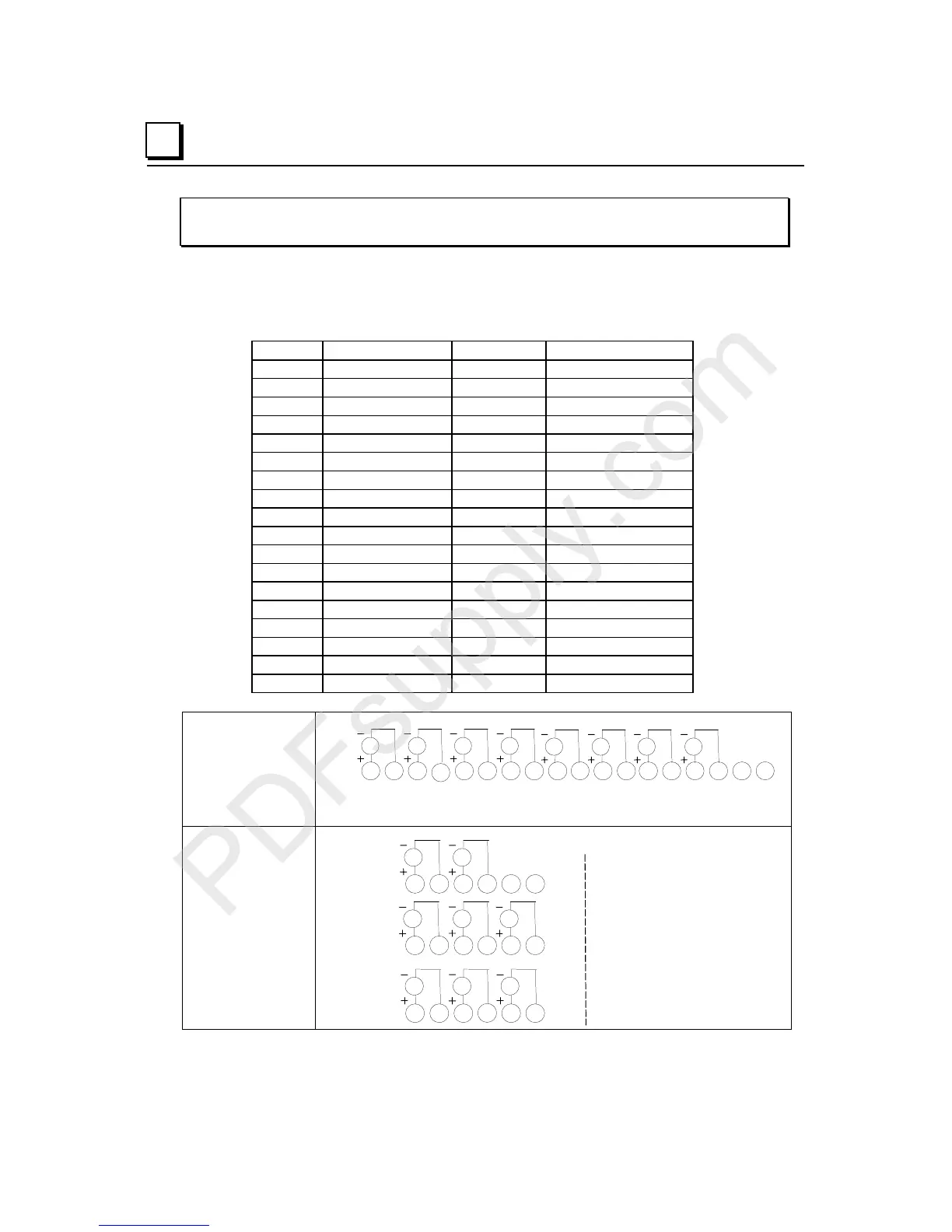

Field Wiring
Terminal assignments for the module are shown below.
Number Connection Number Connection
A1 Input 1 (+) B1 No connection
A2 Input 1 (-) B2 No connection
A3 Input 2 (+) B3 No connection
A4 Input 2 (-) B4 No connection
A5 Input 3 (+) B5 No connection
A6 Input 3 (-) B6 No connection
A7 Input 4 (+) B7 No connection
A8 Input 4 (-) B8 No connection
A9 Input 5 (+) B9 No connection
A10 Input 5 (-) B10 No connection
A11 Input 6 (+) B11 No connection
A12 Input 6 (-) B12 No connection
A13 Input 7 (+) B13 No connection
A14 Input 7 (-) B14 No connection
A15 Input 8 (+) B15 No connection
A16 Input 8 (-) B16 No connection
A17 Field Return B17 No connection
A18 NC B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
AI1
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
A
AI2 AI3 AI4
AI5 AI6 AI7 AI8
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
123456
789 111210
A
13 14 15 16 17 18
AI1 AI2 AI3
AI4 AI5 AI6
AI7 AI8
