GFK-1504K Chapter 10 Analog Input Modules 10-39

IC200ALG263

Analog Input Module, 15 Bit Voltage 15 Channels

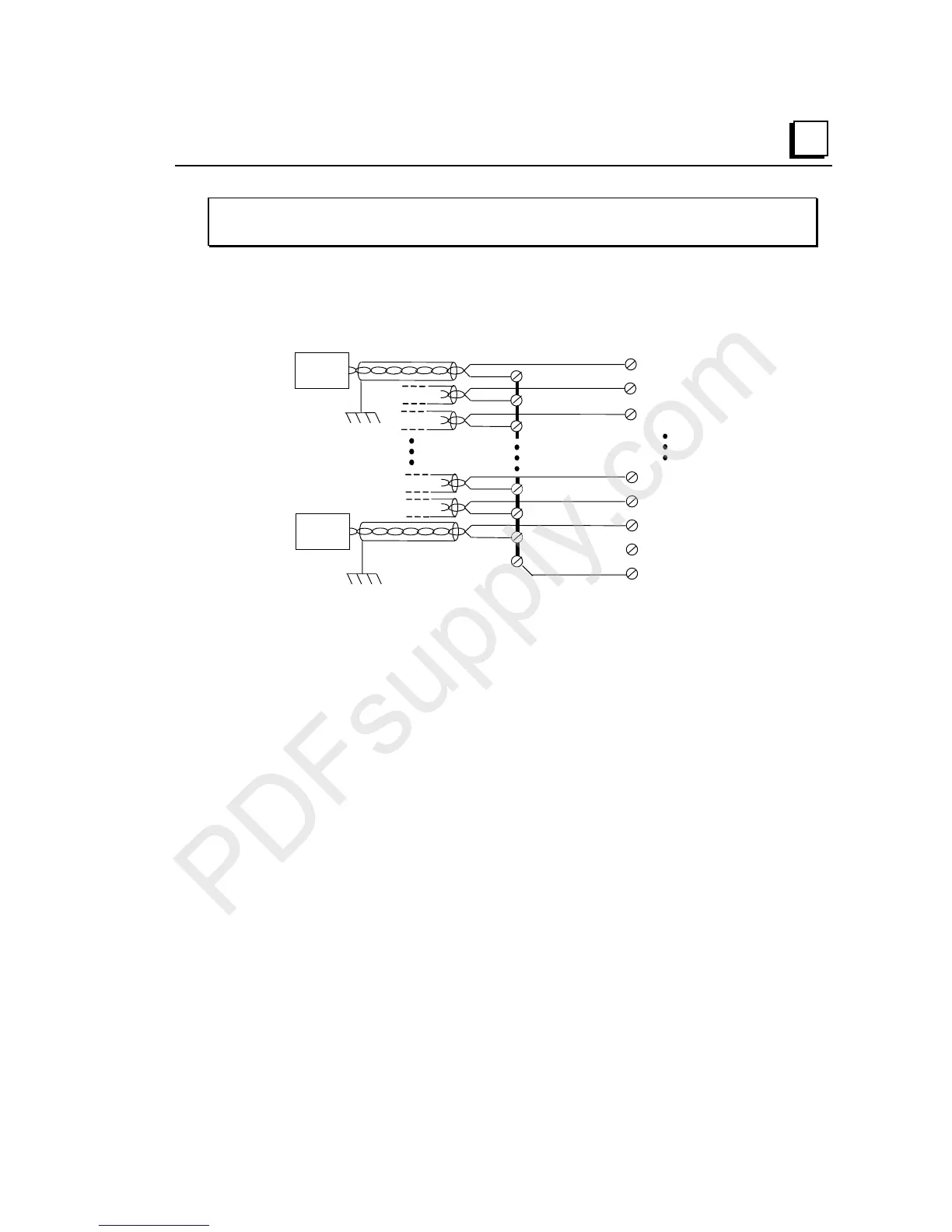

Wiring Examples

V 13

V 2

V 3

V 1

Return

(common)

V 15

V 14

Shorting Bar

or Auxiliary I/O

Terminal Stri

Terminal A

Connections

Voltage

Source

Voltage

Source

An optional Shorting Bar or Auxiliary I/O Terminal Strip can be used for wiring

convenience when multiple Return paths need to be wired together.

An external source must be provided to power input transceivers.
