10-38 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
10
IC200ALG263
Analog Input Module, 15 Bit Voltage 15 Channels

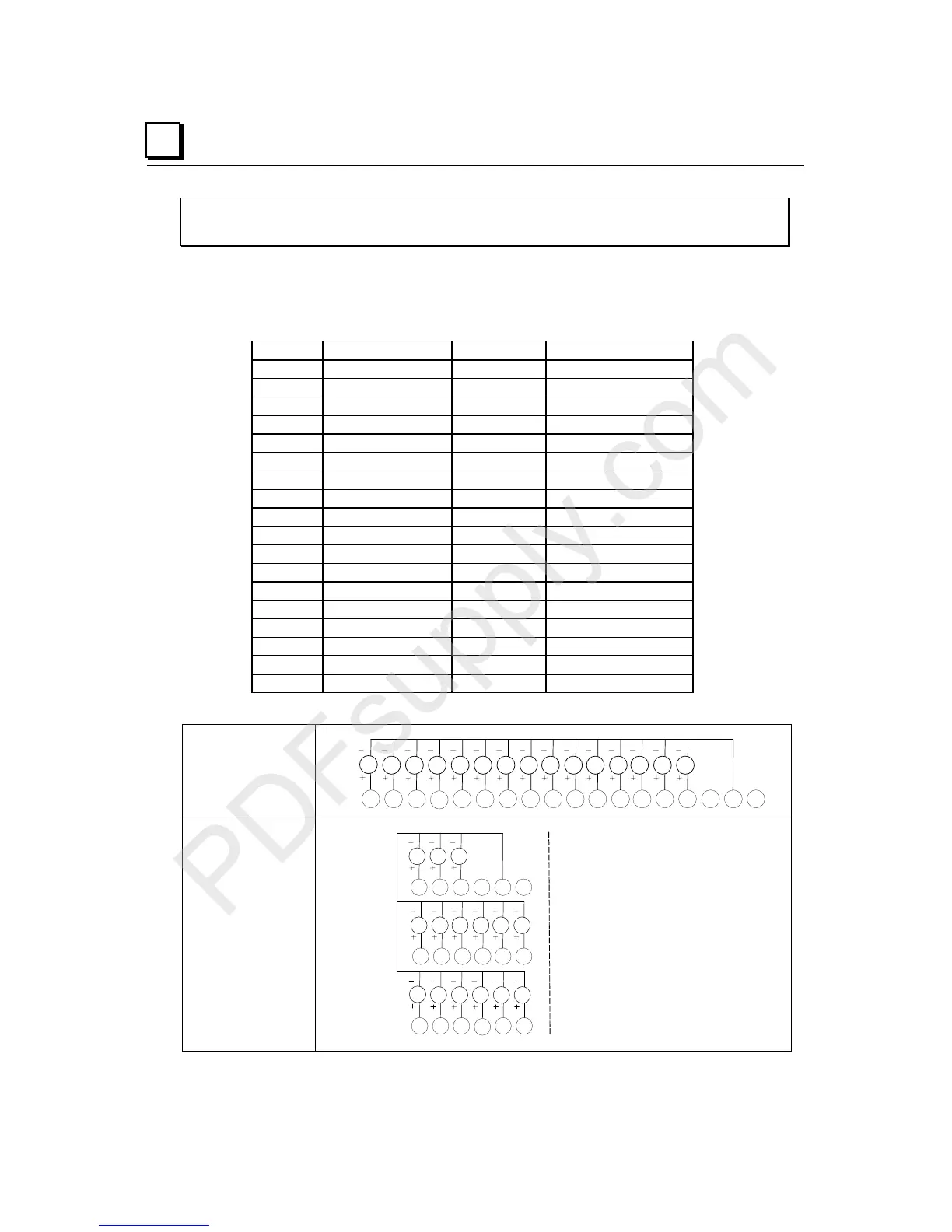

Field Wiring
Terminal assignments for the module are shown below.
Number Connection Number Connection
A1 V1 B1 No connection
A2 V2 B2 No connection
A3 V3 B3 No connection
A4 V4 B4 No connection
A5 V5 B5 No connection
A6 V6 B6 No connection
A7 V7 B7 No connection
A8 V8 B8 No connection
A9 V9 B9 No connection
A10 V10 B10 No connection
A11 V11 B11 No connection
A12 V12 B12 No connection
A13 V13 B13 No connection
A14 V14 B14 No connection
A15 V15 B15 No connection
A16 NC B16 No connection
A17 Return (common) B17 No connection
A18 NC B18 No connection
Note: All inputs are single-ended, and share a common return.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
1 2 3
4
5 6 7 8 9 11 12 13 14 15 16 17 18
10
V1
V2 V3 V4 V5 V6 V7 V8 V9 V10 V11 V12 V13 V14 V15
A
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
1 2 3
4
5 6
7 8 9 11 12
13 14 15 16 17 18
10
V1
V2 V3 V4 V5 V6
V7 V8 V9 V10 V11 V12
V13 V14 V15
A
