GFK-1504K Chapter 10 Analog Input Modules 10-45

IC200ALG264

Analog Input Module, 15 Bit Current 15Channels

Jumper Selections

A jumper selects the current input range.

Jumper Range

None 4-20mA

Installed from A16 to A17 0-20mA

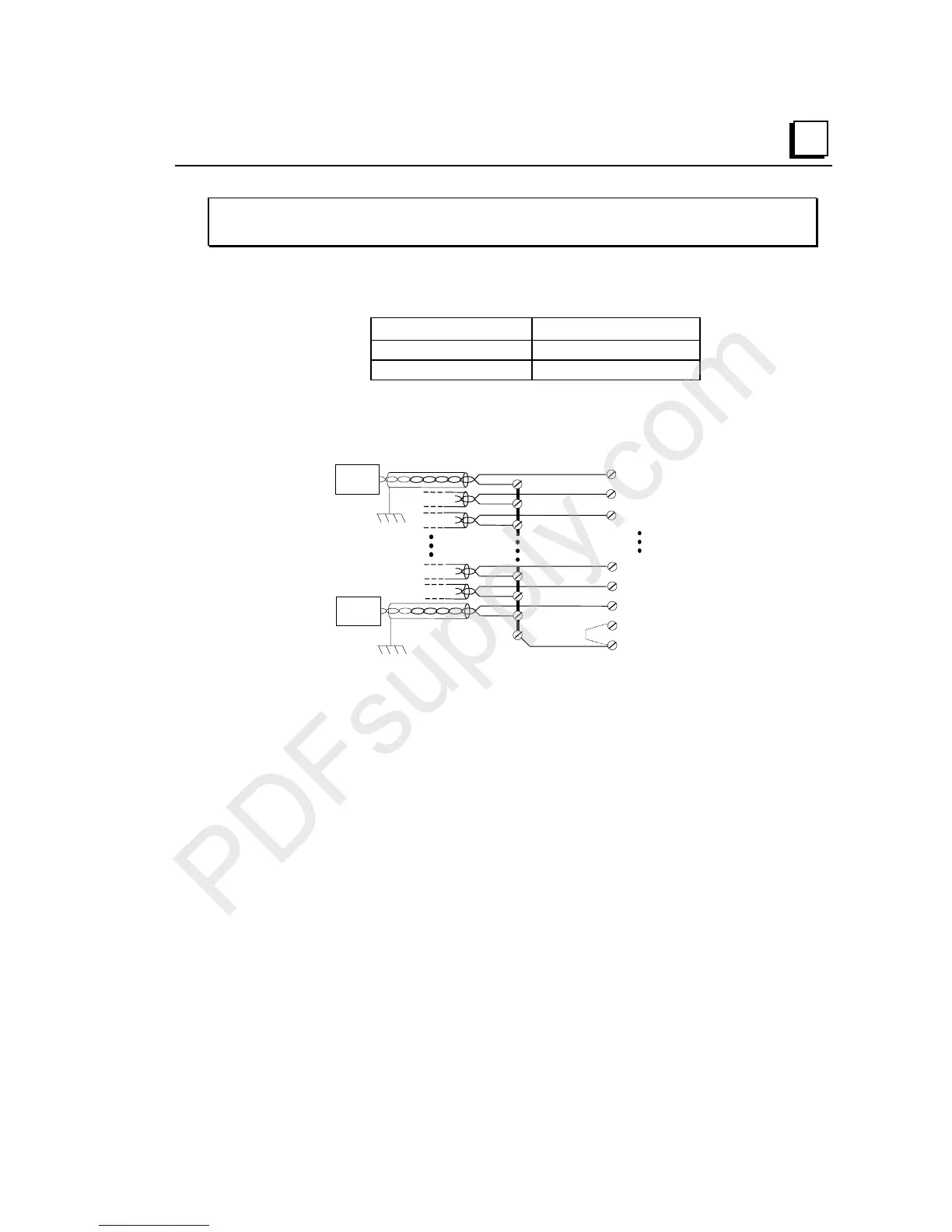

Wiring Examples

I 13

I 2

I 3

I 1

Return

(common)

I 15

I 14

Ran

e JMPR

Jumper

Wire

Auxiliary

Terminal Strip

or Shorting Bar

Terminal A

Connections

Current

Source

Current

Source

An optional Auxiliary I/O Terminal Strip or Shorting Bar can be used for wiring

convenience, when multiple Return paths need to be wired together.

An external source must be provided to power input transceivers.
