10-44 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
10
IC200ALG264
Analog Input Module, 15 Bit Current 15 Channels

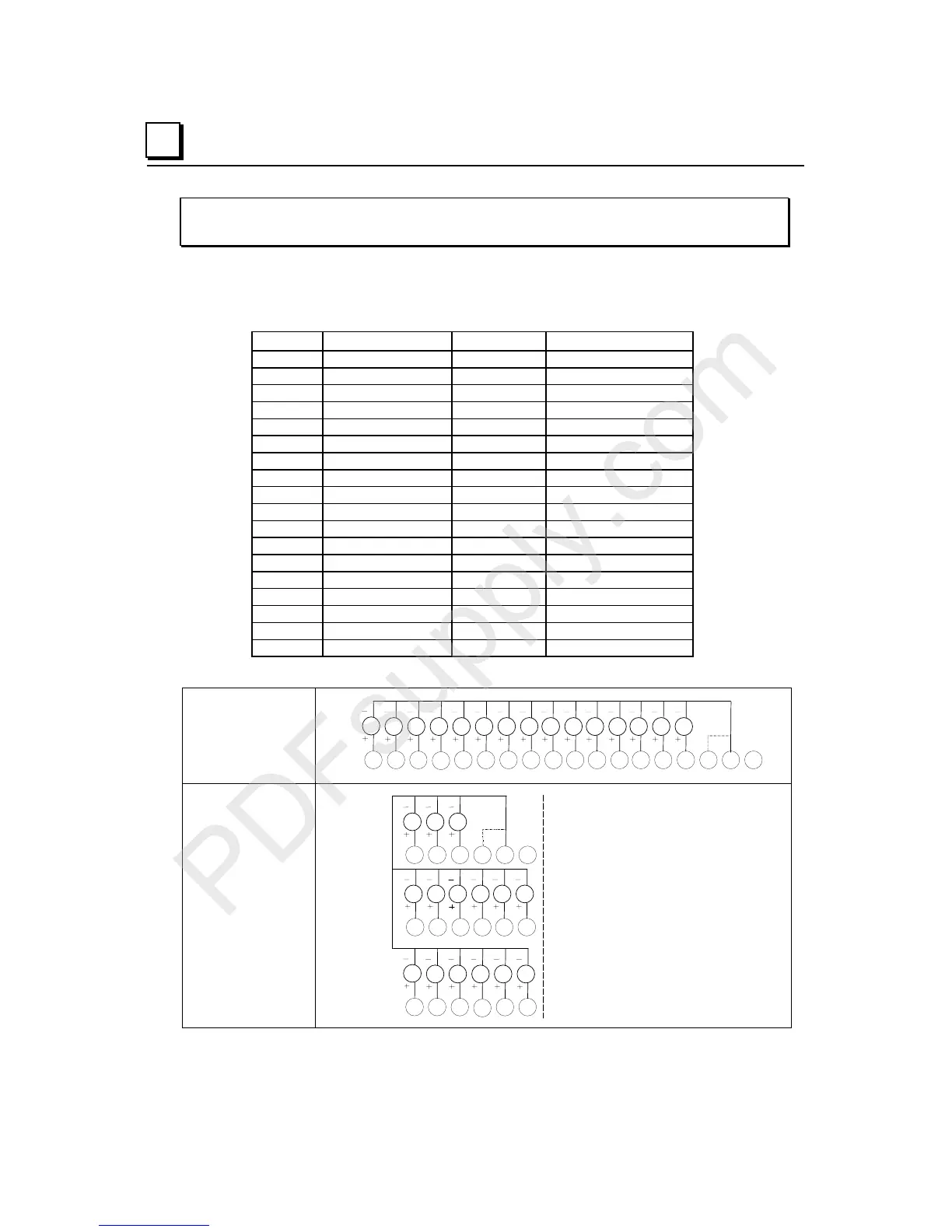

Field Wiring
Terminal assignments for the module are shown below.
Number Connection Number Connection
A1 I1 B1 No connection
A2 I2 B2 No connection
A3 I3 B3 No connection
A4 I4 B4 No connection
A5 I5 B5 No connection
A6 I6 B6 No connection
A7 I7 B7 No connection
A8 I8 B8 No connection
A9 I9 B9 No connection
A10 I10 B10 No connection
A11 I11 B11 No connection
A12 I12 B12 No connection
A13 I13 B13 No connection
A14 I14 B14 No connection
A15 I15 B15 No connection
A16 Range JMPR B16 No connection
A17 Return (common) B17 No connection
A18 NC B18 No connection
Note: All inputs are single-ended, and share a common return.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
1 2 3
4
5 6 7 8 9 11 12 13 14 15 16 17 18
10
I1
Range
JMPR
I2 I3 I4 I5 I6 I7 I8 I9 I10 I11 I12 I13 I14 I15
A
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
1 2 3
4
5 6
7 8 9 11 12
13 14 15 16 17 18
10
I1
Range
JMPR
I2 I3 I4 I5 I6
I7 I8 I9 I10 I11 I12
I13 I14 I15
A
