GFK-1504K Chapter 11 Analog Output Modules 11-7

IC200ALG320

Analog Output Module, 12 Bit Current, 4 Channels

Scaling

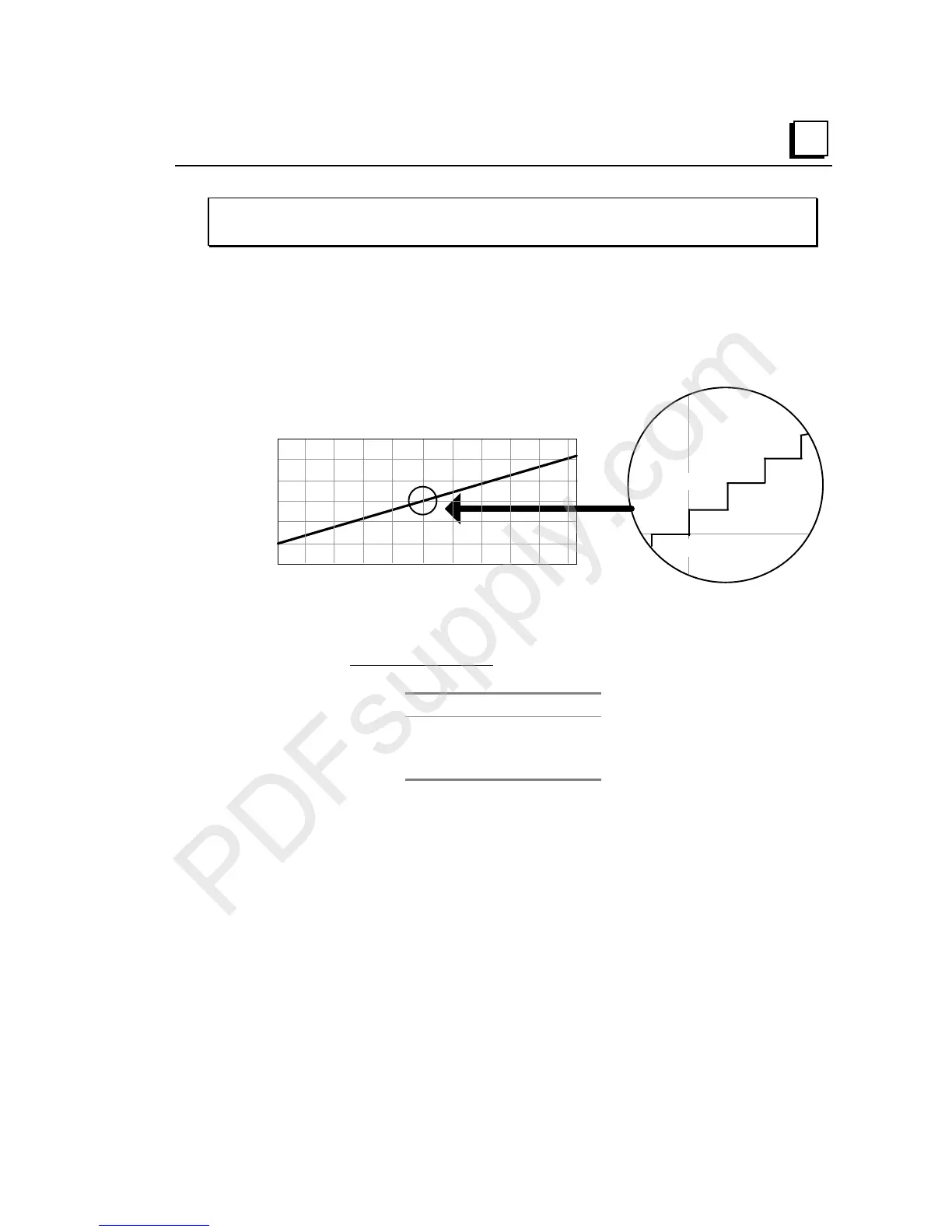

The graph below shows the relationship between the output data that is provided to the

module from the backplane, and the actual output current. The range spans between 4mA

and 20mA.

Count vs Output Current

12.004mA

12.008mA

16024

16016

16008

16000

12.000mA

12.012mA

0 3200 6400 9600 12800 16000 19200 22400 25600 28800 32000

Count

32767

8 counts =

4µA

The following equation can be used to calculate specific output currents:

out

= 4mA + (count/32760) x 16.38mA

The count value must be a multiple of 8. If the module receives a count value that is not a

multiple of 8, it rounds the value down to the closest multiple of 8. For example:

Count mA

16000 12.000

16007 12.000

16008 12.004
