GFK-1504K Chapter 11 Analog Output Modules 11-23
11
IC200ALG325
Analog Output Module, 13 Bit Voltage 8 Channels

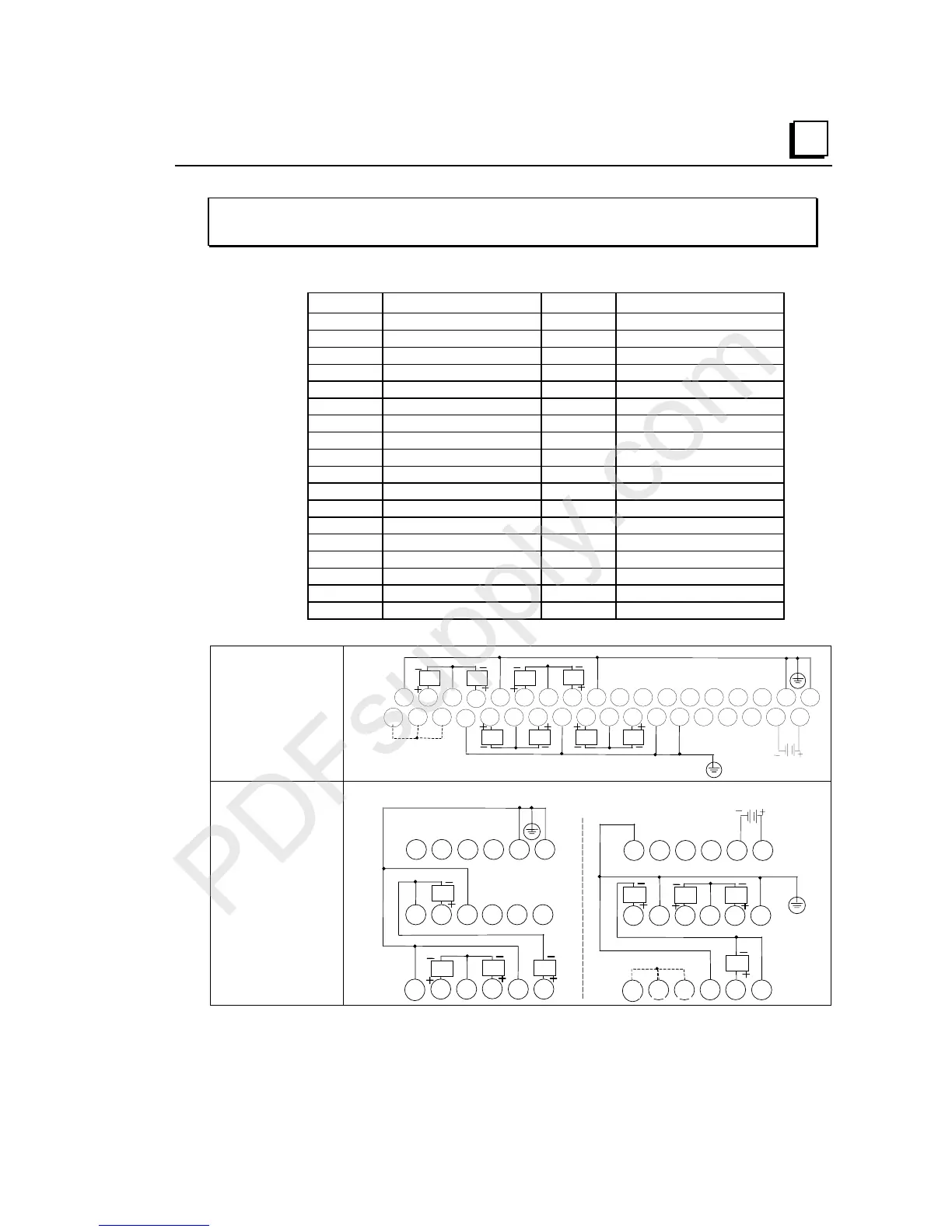

Field Wiring
Terminal Connection Terminal Connection
A1 Shield Termination Point B1 JMP 1 (Range)
A2 V OUT 5 B2 Jumper (1-2) RTN
A3 RET (5-6) B3 JMP 2 (Hold)
A4 V OUT 6 B4 Shield Termination Point
A5 Shield Termination Point B5 V OUT 1
A6 V OUT 7 B6 RTN (1-2)
A7 RTN (7-8) B7 V OUT 2
A8 V OUT 8 B8 Shield Termination Point
A9 Shield Termination Point B9 V OUT 3
A10 No connection B10 RTN (3-4)
A11 No connection B11 V OUT 4
A12 No connection B12 Shield Termination Point
A13 No connection B13 Shield Termination Point
A14 No connection B14 No connection
A15 No connection B15 No connection
A16 No connection B16 No connection
A17 Shield Termination Point B17 Field Return
A18 Shield Termination Point B18 Field Power
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
1 2 3 4 5 6 7 8 9 111213141516 1718
1 2 3 4 5 6 7 8 9 111213141516 171810
10
B
A
AQ7AQ6
AQ5
AQ8
JMP1 JMP2
AQ4
Shield Connections
AQ3AQ2AQ1
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
AQ4
A
123
13
14 15 16
789 111210
456
Shield Connections
B
1 2 3
13
14 15 16 17 18
7 8 9 11 1210
JMP1
456
17 18
JMP2
AQ2
AQ3
AQ1
AQ7AQ6
AQ5
AQ8
Shield Connections
